Invensys 8105 Blank I/O Slot Panel

Overview

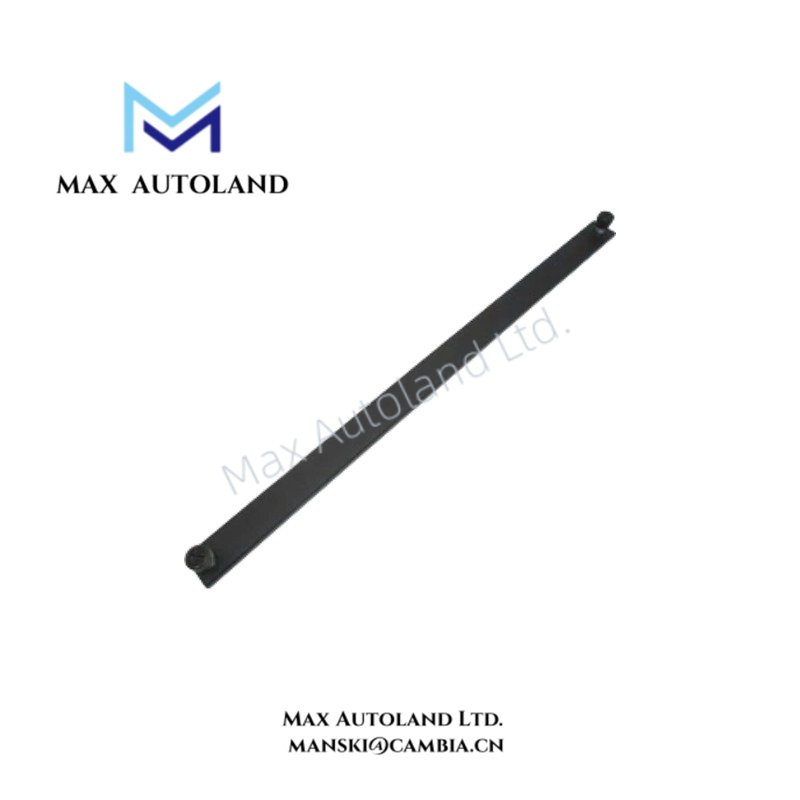

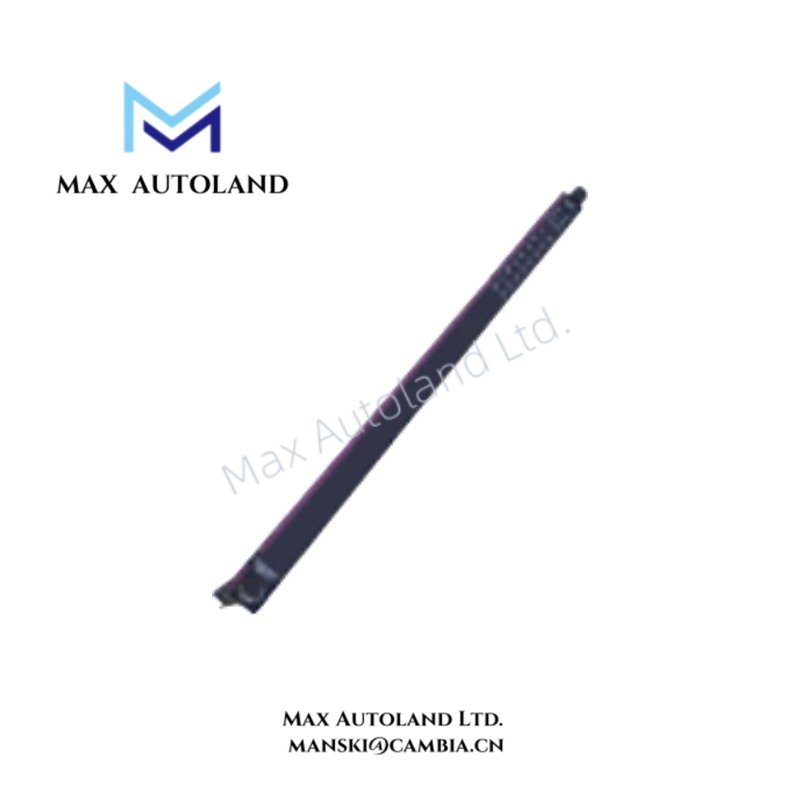

Configured for closing an unused chassis position in the Tricon safety instrumented system, the Invensys 8105 (8105 Blank I/O Slot Panel) provides a physical cover for one vacant I/O slot. The panel has no stated active signal-processing or control function. Its installation maintains the physical enclosure arrangement of the high-density Tricon chassis and prevents an unused slot from remaining open.

Hardware Specifications

Triconex Safety System Hardware Interface

The 8105 is a passive mechanical component rather than an active Tricon controller or I/O circuit. Therefore, it does not execute application logic, process field signals, or provide independent communications.

The supplied configuration identifies the panel for one vacant I/O position in a high-density Tricon chassis. The panel closes the unused opening while preserving the physical chassis arrangement. Maintenance personnel should verify the chassis type, slot position, hardware revision, and fastening arrangement before installation.

The supplied data does not specify an independent SIL rating, TMR processing function, electrical isolation rating, or communication protocol for the 8105 itself. These characteristics should therefore be assigned only from the applicable Triconex system documentation.

Frequently Asked Questions

Q: Does the 8105 process I/O signals?

A: No active signal-processing function is specified. The supplied data identifies the 8105 as a blank I/O slot panel for closing one vacant chassis position.

Q: Does the 8105 require an electrical supply?

A: The supplied data identifies it as a passive airflow component and does not specify an electrical power connection or power consumption.

Q: Can the 8105 be installed in any Tricon chassis?

A: The supplied data identifies compatibility with Tricon high-density chassis. Verify the installed chassis type, slot arrangement, revision, connectors, and fasteners before replacement.

Field Installation Guidelines

1. Confirm that the selected chassis position is intentionally unused before installation.
2. De-energise the affected equipment according to the site’s controlled maintenance procedure.
3. Verify the 8105 model marking and compare the hardware with the existing chassis configuration.
4. Inspect the mounting position, connectors, fasteners, and adjacent wiring before fitting the panel.
5. Install the panel in the designated front-panel slot position without disturbing adjacent I/O assemblies.
6. Maintain existing cable routing and physical separation around active I/O wiring.
7. Follow the installed system’s protective-earth and cabinet grounding practices where applicable.
8. Check that the panel is mechanically secure and does not interfere with adjacent modules or cables.
9. After maintenance, inspect the affected chassis position and verify all affected signal paths before returning the system to service.
10. Record the installed hardware revision and chassis position in the maintenance documentation.
