Overview

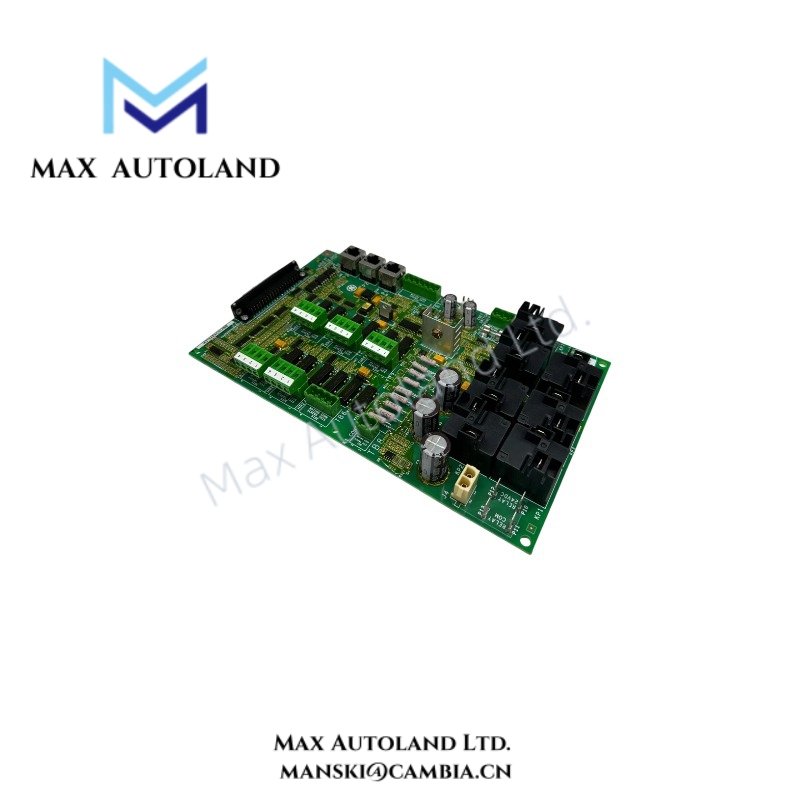

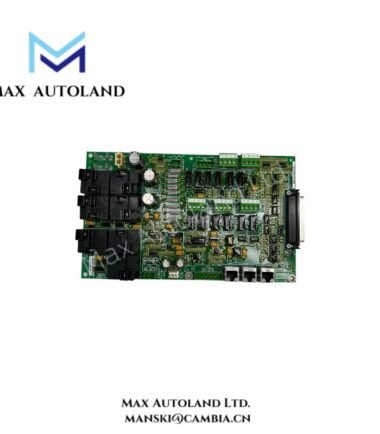

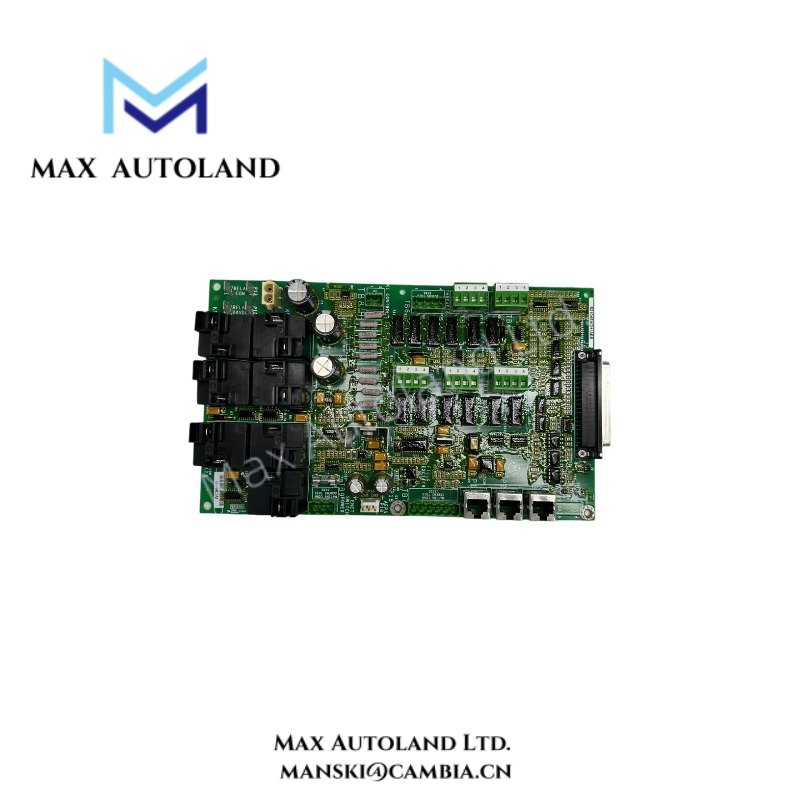

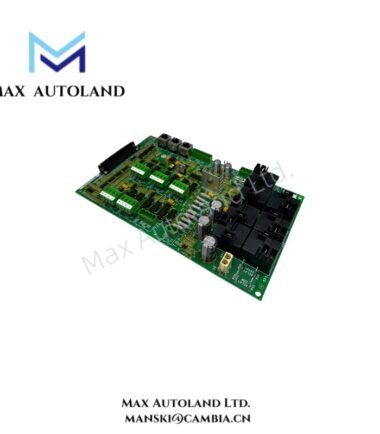

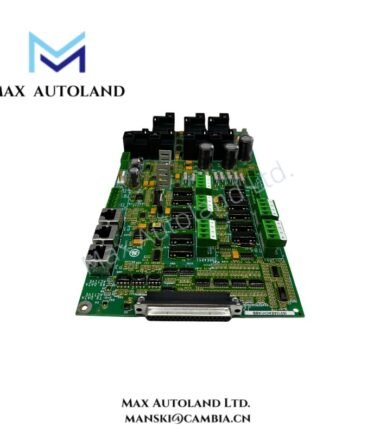

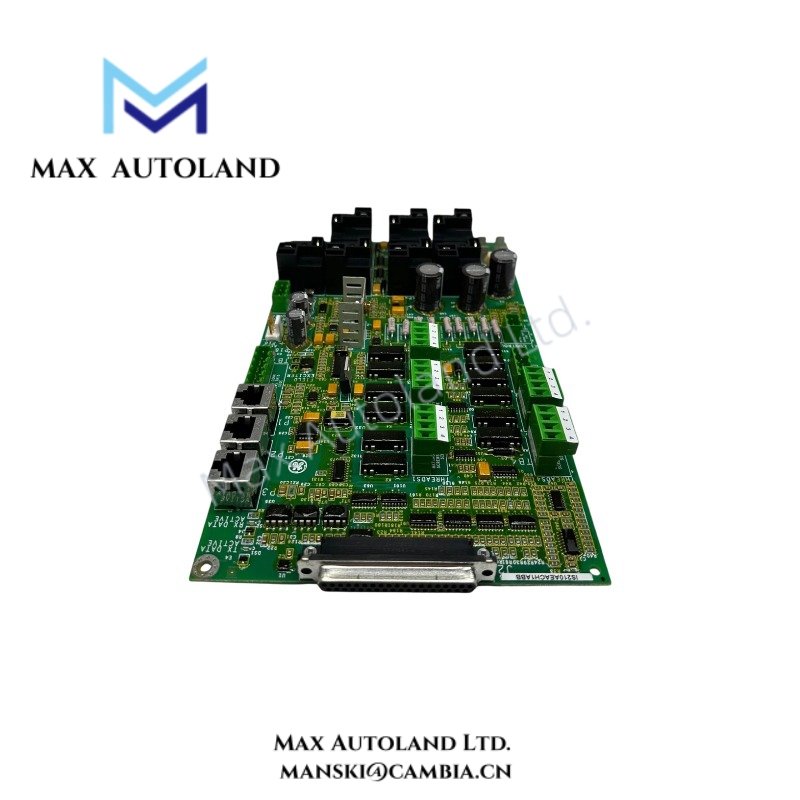

The GE IS210MACCH2AFG, also cataloged as the IS210MACCH2AFG Ethernet Communication Control Board, operates as a dedicated hardware component for Ethernet data exchange and control communication within GE Mark VI and Mark VIe control system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS210MACCH2AFG |
| Brand | GE General Electric |
| Product Type | Ethernet Communication Control Board |
| Series | Mark VI / Mark VIe Control System |
| Origin | United States |
| Weight | Approx. 0.22 kg to 0.24 kg |
| Dimensions | Not specified in available technical data |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 24 VDC, 0.5 A max |
| Communication Ports | 2 x RJ45 Ethernet ports |
| Ethernet Interface | 10BASE-T / 100BASE-TX |
| Data Rate | 10/100 Mbps auto-negotiation |
| Supported Protocols | Modbus TCP/IP, DNP3, GE CIP |
| Mounting Type | DIN rail 35 mm or rack-mounted according to chassis configuration |
| Storage Temperature | -40 deg C to +85 deg C |
| Ambient Humidity | 5% to 95% non-condensing |
GE Industrial Control Network Communication
The IS210MACCH2AFG uses Ethernet-based communication channels for controller-level data transfer inside GE Mark VI and Mark VIe architectures. Therefore, the module supports deterministic communication paths between control processors, network interfaces, and external automation devices.
The module design follows GE industrial control hardware requirements, including backplane communication compatibility, firmware-managed operation, and network interface integration. Additionally, its Ethernet ports support standard industrial protocols for system data exchange and supervisory communication.
The module can be integrated into redundant network structures where system architecture requires continuous controller communication paths. Furthermore, proper firmware compatibility verification is required before replacement or system modification.
Frequently Asked Questions
Q: Does the IS210MACCH2AFG support Ethernet communication redundancy?
A: The module supports Ethernet-based communication architectures used in Mark VI and Mark VIe systems. Redundancy implementation depends on the complete control network configuration.
Q: What Ethernet protocols are supported by the IS210MACCH2AFG?
A: The available technical data identifies support for Modbus TCP/IP, DNP3, and GE CIP communication protocols.
Q: Can the module operate outside standard industrial temperature conditions?
A: The specified operating temperature range is -40 deg C to +70 deg C. Installation should maintain airflow and environmental conditions within the defined limits.
Field Installation Guidelines
- Verify the module part number and hardware revision before installation into a Mark VI or Mark VIe chassis.
- Disconnect system power before removing or inserting the communication board.
- Inspect Ethernet connectors and cables for mechanical damage before connection.
- Maintain proper cable routing separation between Ethernet communication wiring and high-voltage power conductors.
- Apply industrial grounding practices for chassis bonding and electromagnetic interference control.
- Confirm network addressing, firmware compatibility, and controller communication status after installation.
- Follow GE Mark VI / Mark VIe maintenance procedures for module replacement and diagnostic verification.
