Overview

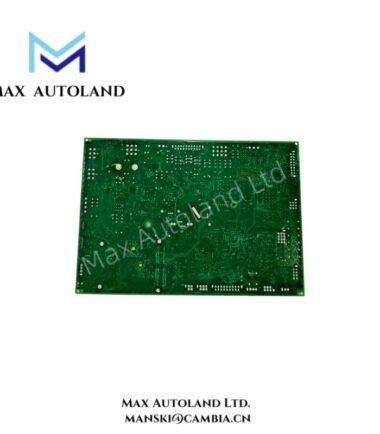

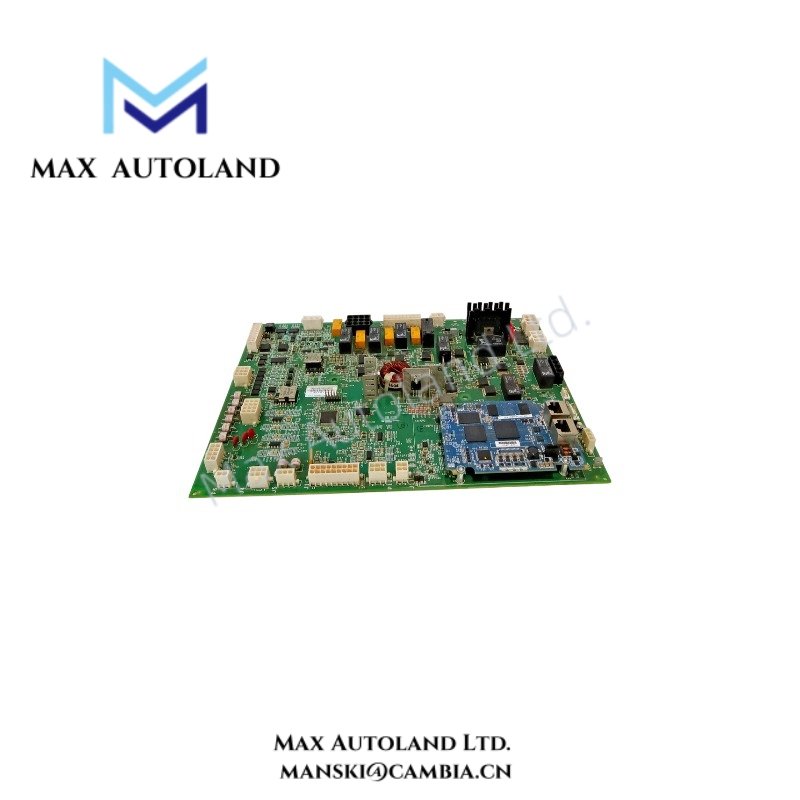

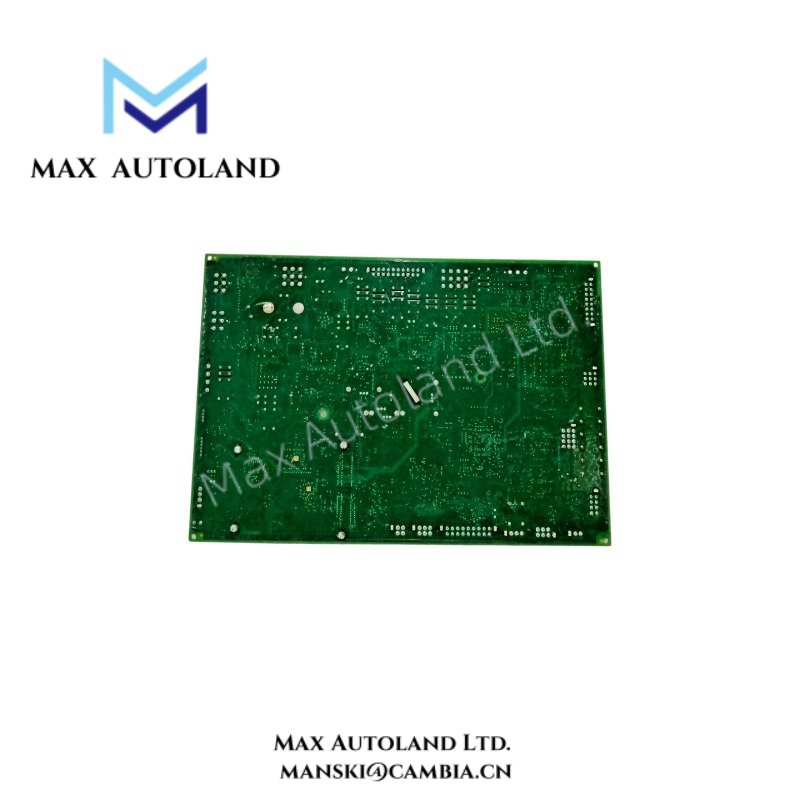

The GE IS200TCSAS1ACB, also cataloged as the IS200TCSAS1ACB Turbine Control Signal PCB, operates as a dedicated hardware component for turbine signal processing within the GE Mark VI / Mark VIe control system platform. It performs signal conditioning, routing, and electrical interface functions for turbine monitoring circuits.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200TCSAS1ACB |
| Brand | General Electric (GE) |
| Product Type | Turbine Control Signal PCB / Module |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 24 VDC +/-10% input supply |
| Product Series | Mark VI / Mark VIe IS200 Series |
| Signal Interface | Analog and digital signal processing |
| Supported Signals | Thermocouple, RTD, 4-20 mA current loops, vibration and seismic inputs |
| Isolation Voltage | +/-2000 VDC |
| Protection Method | Conformal coating for environmental protection |
| Communication Interface | Modbus RTU, Ethernet/IP depending on system configuration |
| Mounting Type | DIN rail mounting, TS 35/7.5 |
| Enclosure Protection | IP20 front panel protection |
| Compliance | CE, UL 508, RoHS, IEC 61508 SIL 2 capable |
GE Mark VI Backplane Communication and I/O Signal Processing
The IS200TCSAS1ACB integrates with GE Mark VI / Mark VIe control architectures through the system backplane communication structure. It processes field measurement signals and transfers conditioned data to turbine control processors. Furthermore, the module supports industrial I/O density scaling through configurable analog and digital channels.
The PCB design incorporates signal filtering circuits to reduce electrical interference during sensor acquisition. Additionally, firmware flash compatibility within the Mark VI platform allows configuration data and diagnostic parameters to remain synchronized with the turbine control application.
The module supports industrial control network architectures where deterministic communication performance and stable signal transmission are required. It maintains electrical separation between field wiring and control circuits through integrated isolation design.
Frequently Asked Questions
Q: Does the IS200TCSAS1ACB support direct connection to turbine field sensors?
A: Yes. The module supports signal processing for compatible turbine instrumentation inputs, including thermocouple, RTD, 4-20 mA, vibration, and seismic signal sources.
Q: Does the IS200TCSAS1ACB support hot-swapping during system operation?
A: Hot-swap capability depends on the specific Mark VI / Mark VIe rack configuration. Installation and replacement should follow GE system shutdown and maintenance procedures.
Q: What installation considerations apply to the IS200TCSAS1ACB signal wiring?
A: Field wiring should maintain proper shielding, grounding, and separation from high-voltage power cables to minimize electromagnetic interference.
Field Installation Guidelines
- Install the IS200TCSAS1ACB according to the GE Mark VI / Mark VIe rack configuration requirements.
- Verify connector alignment before inserting the PCB into the control cabinet backplane.
- Use shielded cables for analog measurement circuits and connect cable shields according to site grounding practices.
- Separate signal wiring from high-current power conductors to reduce induced electrical noise.
- Confirm power supply polarity and voltage level before energizing the module.
- Inspect connectors and terminal interfaces for contamination, corrosion, or mechanical damage during maintenance operations.
