Overview

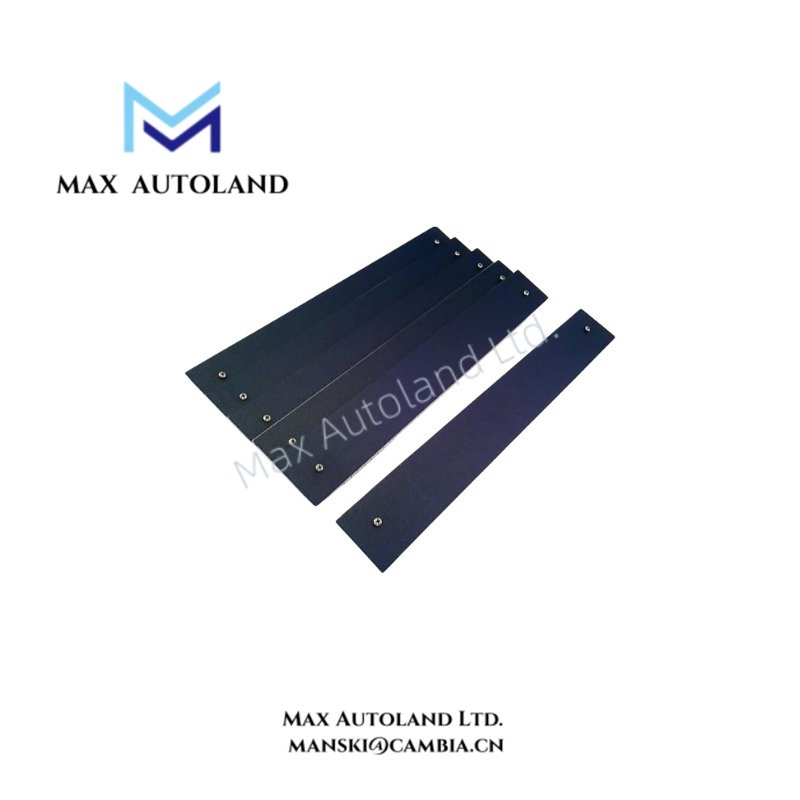

Configured to cover two adjacent unused rack positions in the PACSystems RX7i rack system, the GE Fanuc IC698ACC720 (IC698ACC720 Shielded Double-Slot Blank Faceplate) provides a physical filler and EMI shielding function. The faceplate closes vacant rack openings and maintains the mechanical enclosure surface across the backplane assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC698ACC720 |
| Brand | GE Fanuc |
| Product Type | Shielded Double-Slot Blank Faceplate |
| Series | PACSystems RX7i |
| Compatibility | PACSystems RX7i rack/backplane system |
| Slot Width | Double-width; covers two adjacent 0.8-inch slots |
| Function | Covers two unused rack slots |
| Shielding | Built-in EMI gasket/shielding |
| Mounting | Rack enclosure, secured with top and bottom faceplate screws |
Industrial Control and Rack Shielding
The IC698ACC720 provides a mechanical closure for two consecutive vacant positions in an RX7i rack. Its double-slot construction matches the specified rack opening width. The integrated EMI gasket provides a conductive shielding interface around the covered rack area.
In addition, the faceplate prevents direct exposure of unused backplane positions to dust and accidental physical contact. The component does not perform PLC processing, I/O conversion, or network communication. Therefore, it does not require firmware or a control-system address.
Frequently Asked Questions
Q: Does the IC698ACC720 consume backplane power?
A: No. The IC698ACC720 is a passive blank faceplate and does not contain an electrically powered circuit.
Q: How many rack slots does the IC698ACC720 cover?
A: It covers two adjacent rack slots, with each specified slot having a 0.8-inch width.
Q: Does the IC698ACC720 provide electrical communication with the RX7i backplane?
A: No. It provides mechanical coverage and EMI shielding only. It does not exchange data with the PLC backplane.
Field Installation Guidelines
Install the IC698ACC720 across two adjacent unused rack positions in the RX7i rack. Align the faceplate with the rack opening before tightening the top and bottom mounting screws.
Ensure that the EMI gasket contacts the intended rack shielding surface. Keep the gasket and mating metal surfaces free from dirt, paint buildup, and other contamination that could interfere with the shielding interface.
Do not install the faceplate over an occupied module position. Verify that both covered positions remain unused before securing the hardware.
