Overview

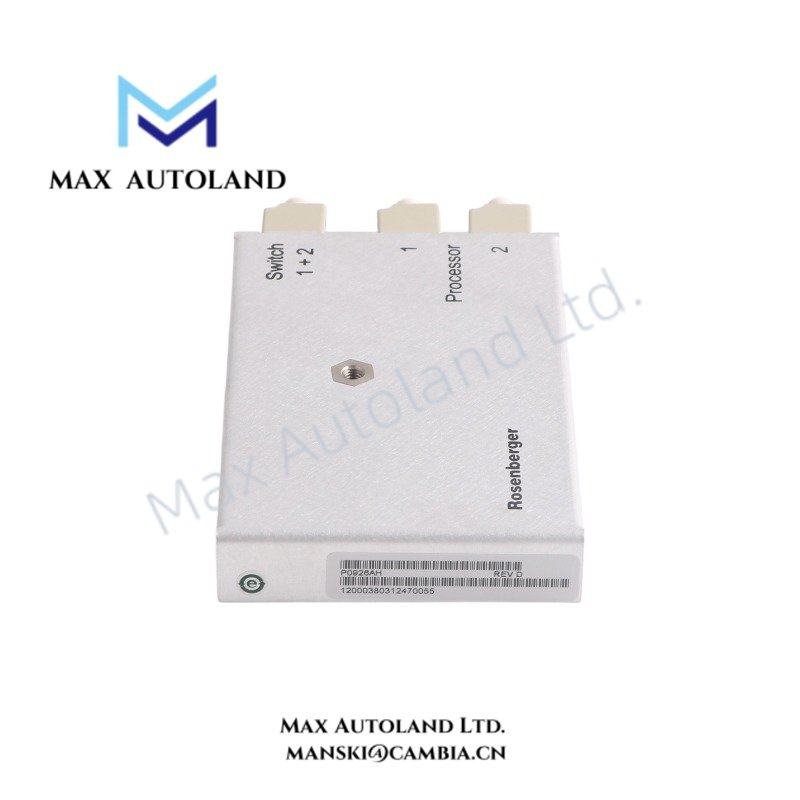

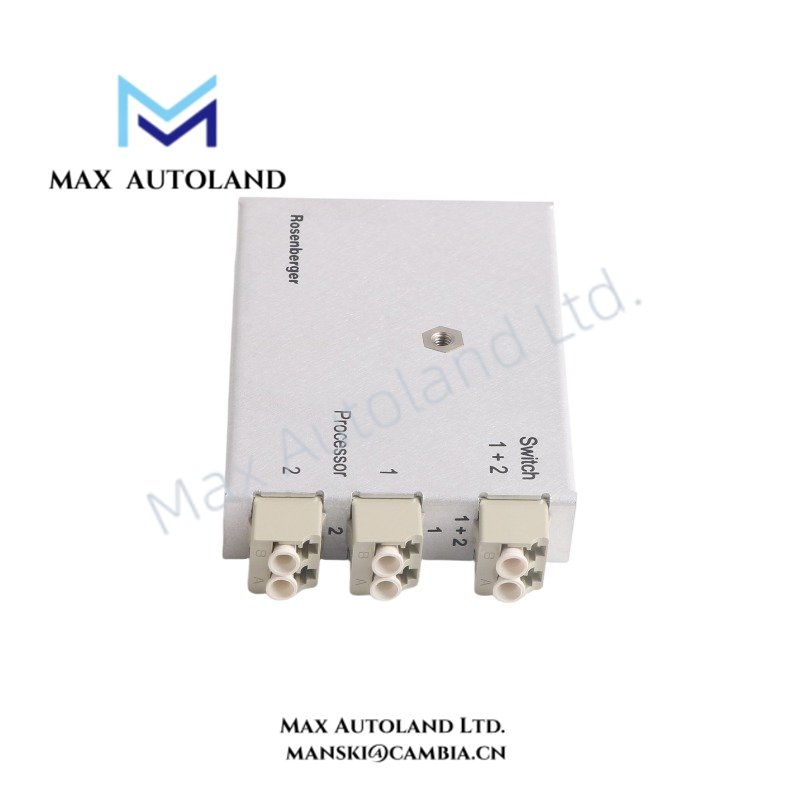

The Foxboro FCP270 P0926MX, also cataloged as the FCP270 Field Control Processor, operates as a dedicated hardware component for executing regulatory control, logic processing, data acquisition, and alarm handling within Foxboro I/A Series and Foxboro Evo DCS networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FCP270 P0926MX Field Control Processor |
| Brand | Schneider Electric / Foxboro |
| Origin | USA |
| Weight | Approximately 0.6 kg |
| Dimensions | 14.7 cm (L) x 5.15 cm (W) x 11.4 cm (H) |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | 8.5 W maximum per non-fault-tolerant module |
| Processor Type | AMD Elan 520 processor at 100 MHz with CommControl ASIC and 80186 communication processor |
| Memory | 16 MB SDRAM and 32 MB Flash Memory with ECC error detection and correction |
| Operating Voltage | 24 VDC typical with redundant power supply support |
| Control Network Interface | 100 Mbps Ethernet via fiber optic communication |
| Fieldbus Communication | HDLC protocol supporting 2 Mbps for 200 Series FBMs and 268 Kbps for 100 Series FBMs |
| I/O Capacity | Supports up to 32 standard or 128 200 Series FBMs with FEM100 expansion; up to 64 100 Series FBMs |
| Block Execution Rate | Maximum 10,000 blocks per second with up to 4,000 blocks configured |
| Environmental Rating | Class G3 harsh environment, Pollution Degree 2, CE certified |
Foxboro DCS Field Communication and Control Architecture
The FCP270 P0926MX manages distributed control execution through Foxboro I/A Series and Foxboro Evo communication structures. It processes control blocks, sequencing functions, timing operations, and alarm logic while exchanging data with connected Fieldbus Modules (FBMs).
The processor supports HDLC field communication and Ethernet control network connectivity. Additionally, the module architecture allows optional fault-tolerant operation through dual parallel processors, where communication messages are validated before transmission to maintain synchronized control execution.
For process instrumentation integration, Foxboro DCS architectures commonly use isolated field interfaces and standardized signal handling methods, including 4-20 mA HART loop protocol compatibility through supported FBM modules and channel-to-channel isolation at the I/O interface level.
Frequently Asked Questions
Q: Does the FCP270 P0926MX support redundant processor operation?
A: Yes. The FCP270 P0926MX supports an optional fault-tolerant configuration using two parallel processor modules operating in a synchronized arrangement.
Q: What communication interfaces are available on the FCP270 P0926MX?
A: The processor provides 100 Mbps Ethernet control network communication and HDLC-based fieldbus communication for Foxboro FBM interfaces.
Q: Can the FCP270 P0926MX directly connect field devices?
A: No. The FCP270 performs control processing and communicates with field devices through compatible Fieldbus Modules installed within the Foxboro I/O architecture.
Field Installation Guidelines
- Install the FCP270 P0926MX on the specified Foxboro mounting baseplate with correct mechanical alignment.
- Verify that the 24 VDC power supply wiring follows the approved polarity and grounding requirements.
- Maintain separation between fiber optic communication cables, field wiring, and high-voltage conductors to reduce electrical interference.
- Ensure communication connectors remain clean and properly seated before system startup.
- Apply appropriate shielding and grounding practices for connected field signal wiring.
- Confirm firmware compatibility between the processor module, control software database, and connected FBM modules before commissioning.
- For redundant configurations, verify synchronization status between paired processor modules before placing the controller into operational service.
