Overview

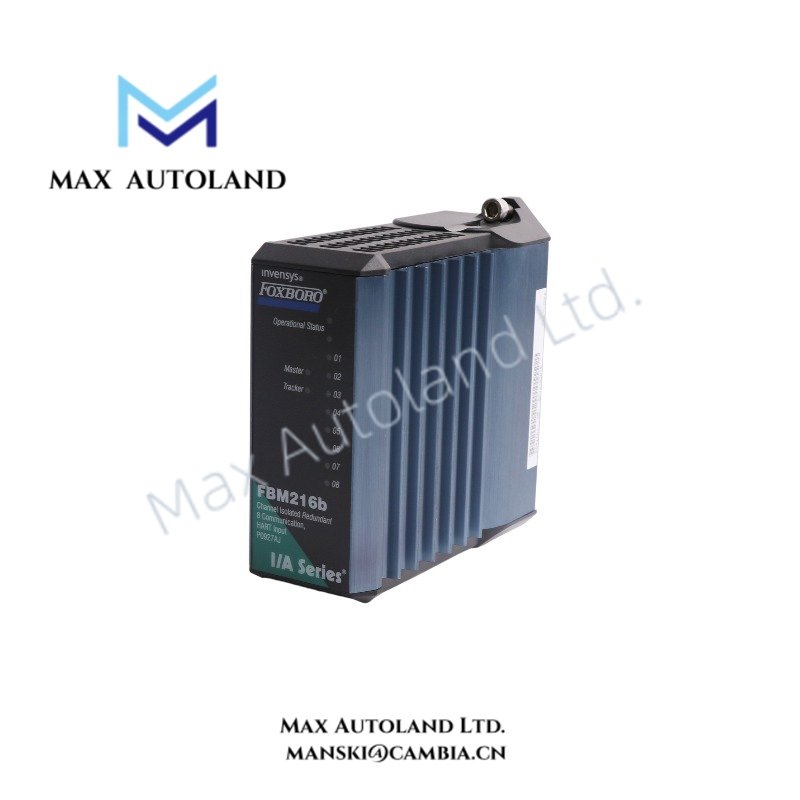

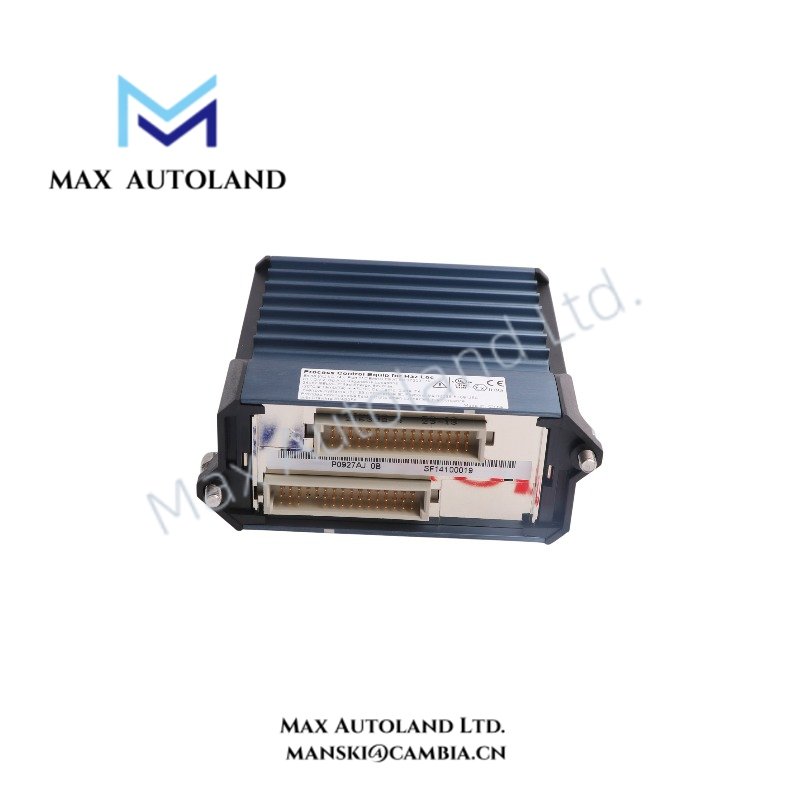

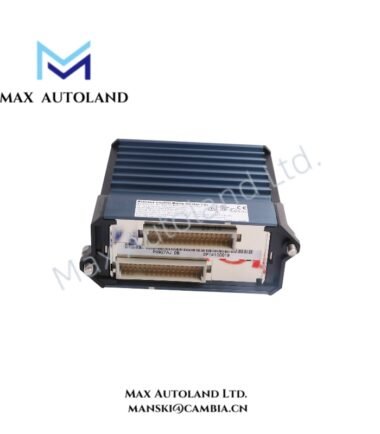

The Foxboro FBM216 P0922VV, also cataloged as the FBM216 HART Communication Redundant Input Interface Module, provides 8-channel analog input processing for 4-20 mA field signals with HART communication within Foxboro I/A Series DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM216 P0922VV |
| Brand | Foxboro (Schneider Electric) |
| Origin | United States |
| Product Type | HART Communication Redundant Input Interface Module |
| Power Consumption | Common isolated power supply to input channels |
| Input Channels | 8 group-isolated analog input channels |
| Input Signal | 4-20 mA current input |
| Communication Protocol | HART v6 supported |
| Field Device Interface | Analog transmitters and HART-enabled instruments |
| Redundancy Function | Module redundancy when installed in paired configuration |
| Mounting Type | DIN-rail mounted modular baseplate system |
4-20 mA HART Loop and Channel Isolation Technology
The FBM216 P0922VV processes standard 4-20 mA analog loops while maintaining HART digital communication capability between field devices and the Foxboro I/A Series control system. Therefore, the module can transfer both primary process variables and secondary diagnostic information through the same current loop.
The module uses group-isolated input channels to separate field signal groups and reduce interference between connected devices. In addition, the isolated channel design supports stable measurement transmission for process instrumentation requiring controlled electrical separation.
The FBM216 integrates with Foxboro DCS architectures through the I/O subsystem and supports redundant installation using paired modules. Consequently, the control system can maintain input availability during individual module fault conditions or maintenance operations.
Frequently Asked Questions
Q: Does the FBM216 P0922VV support HART communication over the analog input loop?
A: Yes. The module supports HART v6 communication and transfers digital field device information through the 4-20 mA input loop.
Q: Can the FBM216 P0922VV operate in a redundant configuration?
A: Yes. The module supports redundancy when installed as a paired module configuration within the compatible Foxboro I/A Series architecture.
Q: What type of field signals can connect to the FBM216?
A: The module accepts 4-20 mA analog signals from compatible transmitters and HART-enabled field instruments.
Field Installation Guidelines
- Install the FBM216 P0922VV on the compatible Foxboro modular baseplate according to system hardware specifications.
- Verify the module address and I/O configuration before connecting field wiring.
- Use shielded instrument cables for analog signal connections where required by the installation environment.
- Connect cable shields according to site grounding practices to reduce electromagnetic interference.
- Separate low-level analog signal wiring from high-voltage power cables and switching circuits.
- Confirm loop polarity and transmitter power requirements before applying field power.
- When using redundant modules, verify both primary and secondary module configuration settings within the I/A Series system.
