Overview

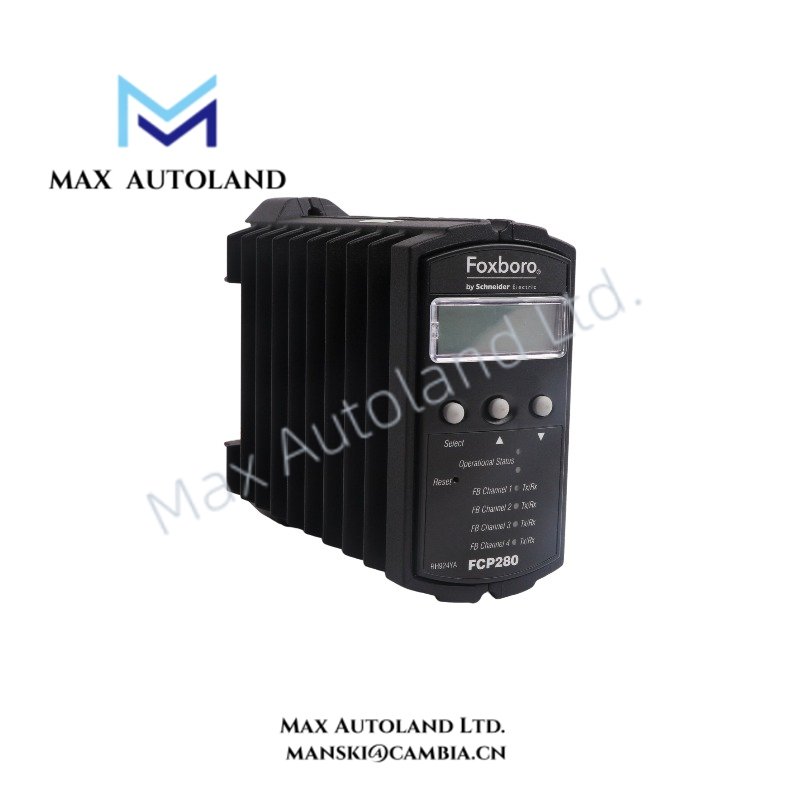

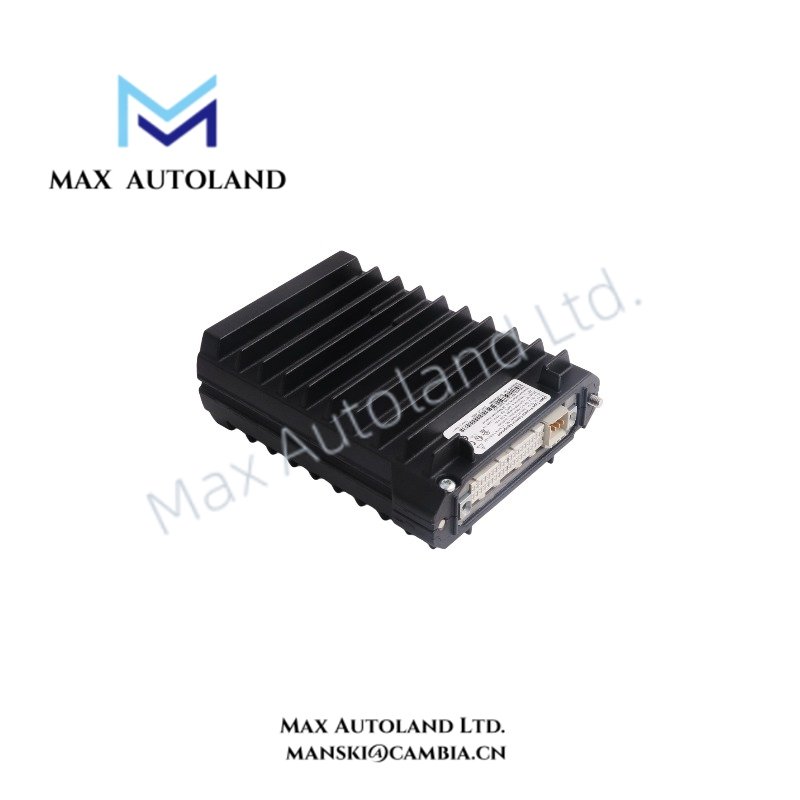

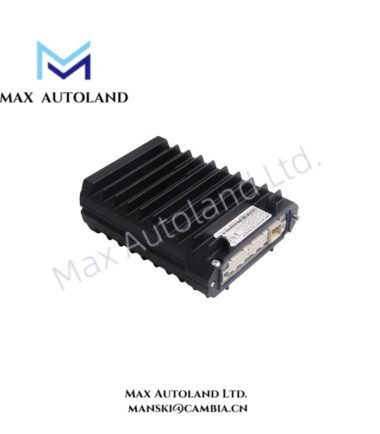

The Foxboro RH924YF, also cataloged as the FCP280 Baseplate Module, provides physical mounting, power distribution, and field communication termination functions for FCP280 controllers within Foxboro I/A Series control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | RH924YF |
| Brand | Foxboro |
| Product Type | FCP280 Baseplate Module |
| System Compatibility | Foxboro I/A Series 200 Series FCP280 Field Control Processor |
| Mounting Type | Vertical-mounted DIN-rail / panel installation |
| Operating Voltage | 24 VDC nominal |
| Operating Temp | -20 deg C to +60 deg C |
| Storage Temperature | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Environmental Class | ISA Standard S71.04 Class G3 |
DCS Fieldbus Integration and Signal Termination
The RH924YF baseplate provides the mechanical interface and electrical distribution path required for FCP280 controller installation. It supports controller mounting, power connection routing, and communication termination between the processor and connected Fieldbus Modules (FBMs).
Additionally, Foxboro I/A Series architectures typically use distributed I/O communication structures with isolated field connections. The baseplate design maintains organized signal routing and supports stable controller operation within the DCS hardware assembly.
For process instrumentation interfaces, Foxboro systems support standard industrial communication methods, including 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity through compatible I/O modules. Channel-to-channel isolation depends on the installed FBM type and termination configuration.
Frequently Asked Questions
Q: Is the RH924YF a standalone controller module?
A: No. The RH924YF is a vertical-mounted baseplate designed to mechanically support and electrically interface with the FCP280 Field Control Processor.
Q: Can the RH924YF operate without an FCP280 processor installed?
A: No. The baseplate provides mounting and connection functions but does not execute control logic independently.
Q: Does the RH924YF define field signal isolation characteristics?
A: No. Isolation performance depends on the installed Fieldbus Modules and their electrical specifications.
Field Installation Guidelines
- Install the RH924YF on a suitable DIN-rail or panel structure with adequate mechanical support.
- Verify that the mounting orientation maintains proper airflow around the FCP280 processor assembly.
- Route power wiring separately from high-noise signal cables to reduce electrical interference.
- Confirm that shielded communication cable grounding follows the plant grounding standard.
- Inspect connector seating before applying 24 VDC system power.
- Verify all FBM connections before controller commissioning.
