Overview
Specification
| Parameter | Specification |
|---|---|

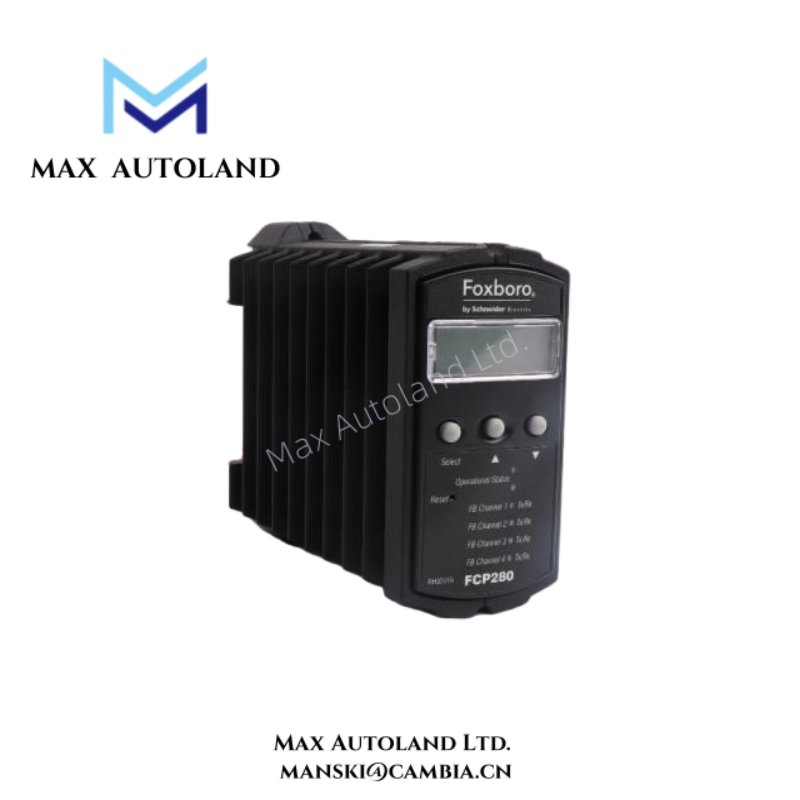

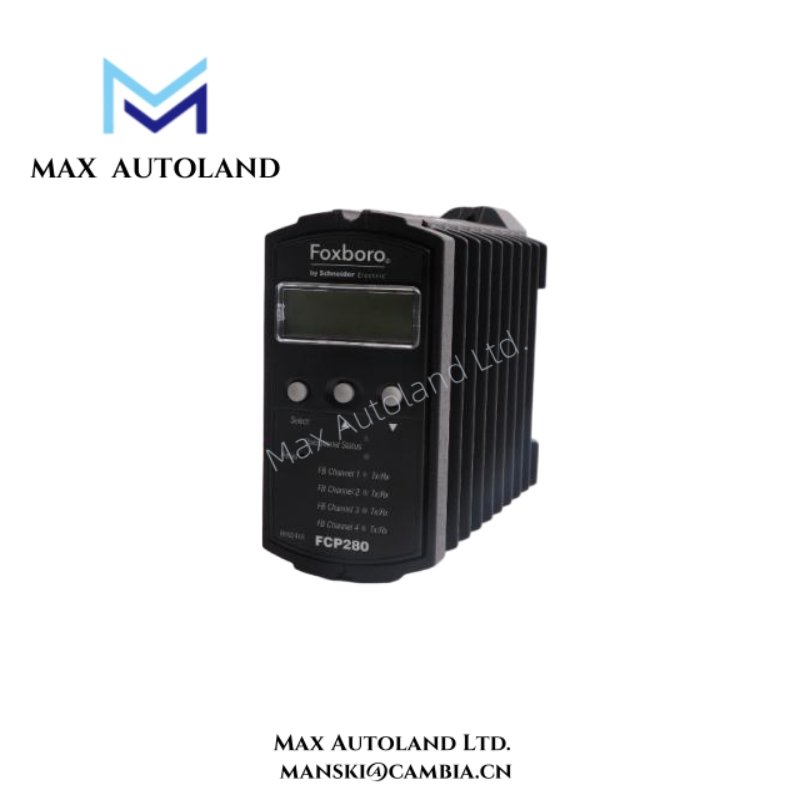

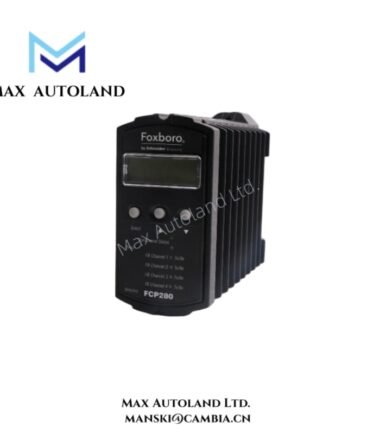

| Model Number / Part Code | FCP280 RH924YA |
| Module Type | Field Control Processor (FCP) |
| Control Functions | Regulatory, logic, timing, sequential control; data acquisition; alarm detection & notification |
| Supported I/O Modules (FBMs) | Up to 128 total: 200 Series, 100 Series, or mixed — depending on configuration |
| Fieldbus Channels (PIO) | 4 independent HDLC fieldbus ports per baseplate |
| Network Interface | 100 Mbps Ethernet — fiber optic or copper |
| Redundancy / Fault Tolerance | Dual‑module fault‑tolerant configuration with automatic failover |
| Mounting & Housing | Field‑mountable baseplate; rugged die‑cast aluminium housing suitable for harsh environments |
| Network Support | Works within Foxboro DCS architecture with Control Core Services v9.0 or later |
| Self‑Hosting Mode | Supports boot and operation with valid control database without host workstation |
| Environmental Rating | Field‑mount certified, suitable for industrial conditions (temperature, vibration, EMI) |
FAQ
A: It supports up to 128 fieldbus I/O modules (FBMs), either 200‑Series, 100‑Series, or a combination.
Q: What happens if one processor fails in a redundant pair?
A: The redundant module takes over seamlessly; faulty module is isolated and no incorrect messages are sent downstream.
Q: Can FCP280 operate without a host workstation online?
A: Yes — it supports self‑hosting mode and can boot and execute control functions from its local database.
Q: What communication network does FCP280 use?
A: It connects via 100 Mbps Ethernet (fiber or copper) to the control network; baseplate adapters provide required interface.
Q: Is FCP280 suitable for harsh industrial environments?
A: Yes — rugged aluminium housing, field‑mount certification, and industrial environmental rating make it suitable for challenging conditions.
