Overview

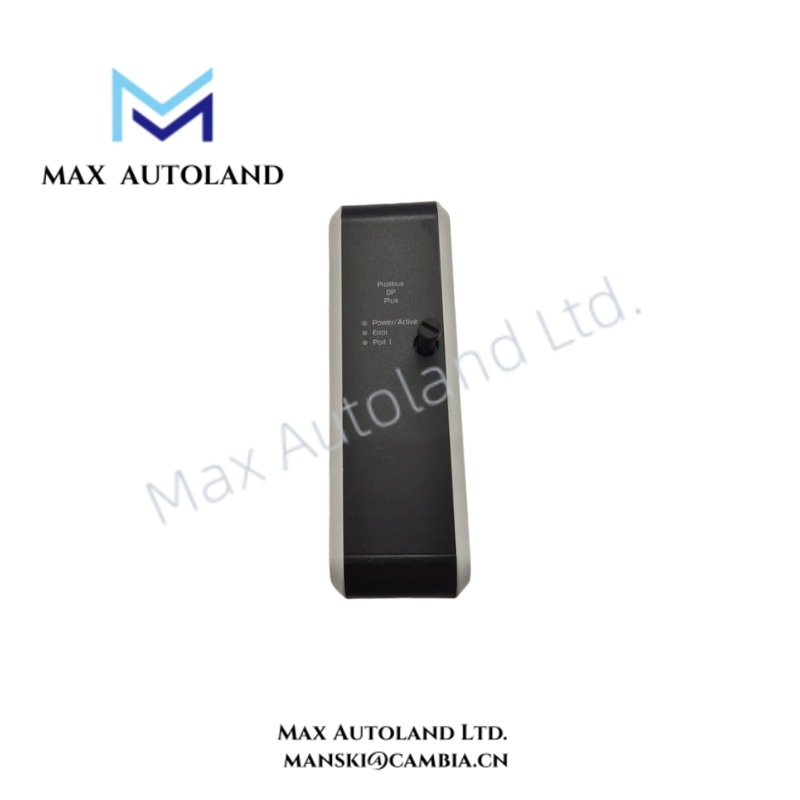

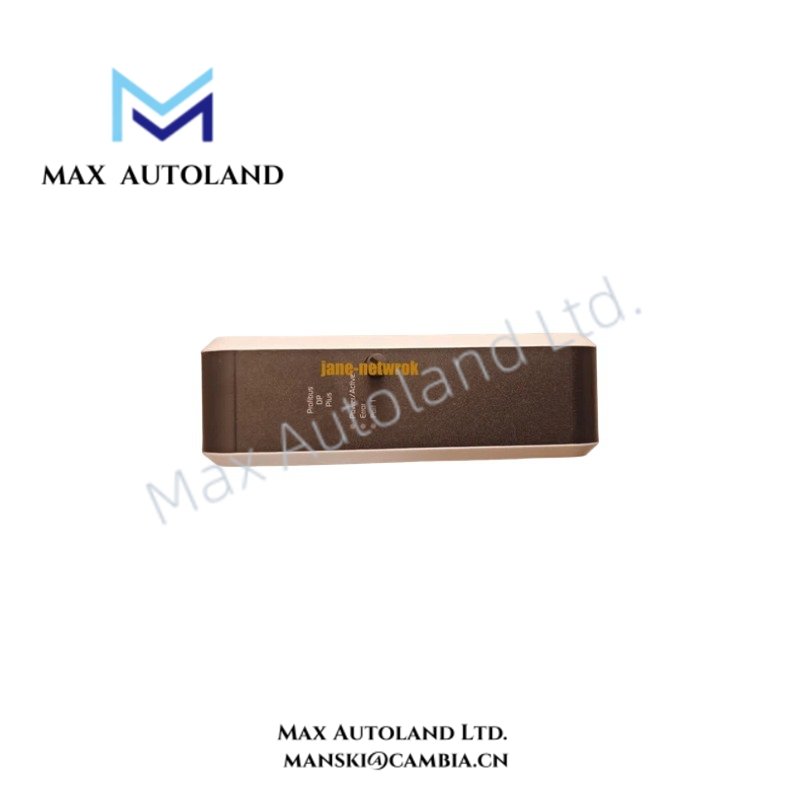

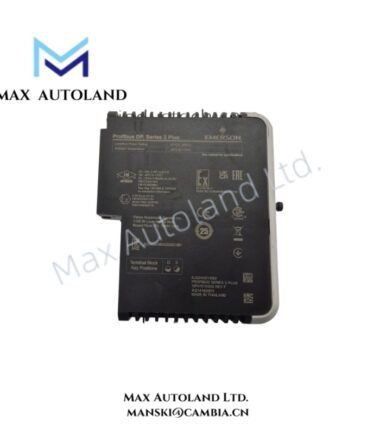

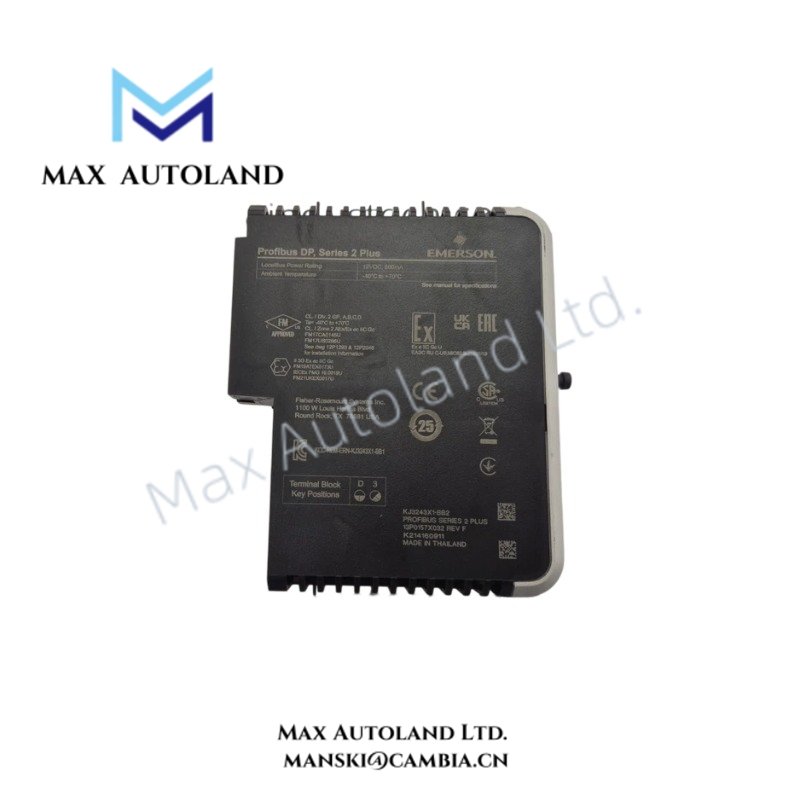

Configured for PROFIBUS DP network communication in Emerson DeltaV Series 2 Plus M-Series platforms, the Emerson KJ3243X1-BB2 (KJ3243X1-BB2 PROFIBUS DP Interface Card) provides direct physical and electrical execution for field bus data exchange.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3243X1-BB2 |
| Brand | Emerson |
| Product Type | PROFIBUS DP Interface Card |
| Series | Series 2 Plus M-Series |
| Origin | USA |
| Weight | 0.4 kg |
| Dimensions | 4.3 x 12.5 x 18.5 cm estimated shipping size |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 12 VDC at 600 mA |
| Communication Protocol | PROFIBUS DP |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half sinewave for 11 msec |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
PROFIBUS DP Network Communication Features
The KJ3243X1-BB2 provides PROFIBUS DP interface functionality for Emerson control system architectures. The card manages PROFIBUS DP communication signals between the controller platform and connected field devices.
Furthermore, the module supports industrial bus communication through a dedicated local bus power interface. The 12 VDC at 600 mA power requirement defines the electrical load supplied through the system connection.
The PROFIBUS DP interface maintains deterministic cyclic data exchange required by distributed field communication networks. Therefore, engineers can integrate PROFIBUS DP devices into Series 2 Plus M-Series control configurations with defined communication parameters.
Frequently Asked Questions
Q: What communication protocol does the KJ3243X1-BB2 support?
A: The KJ3243X1-BB2 supports PROFIBUS DP communication for Emerson Series 2 Plus M-Series systems.
Q: What is the local bus power requirement of this interface card?
A: The module requires 12 VDC local bus power with a current consumption of 600 mA.
Q: What environmental conditions does the module support?
A: The card operates from -40 deg C to +70 deg C and supports 5 to 95% non-condensing relative humidity with ISA-S71.04-1985 Class G3 airborne contaminant conditions.
Field Installation Guidelines
Install the KJ3243X1-BB2 according to Emerson DeltaV hardware installation procedures and approved system configuration requirements.
Verify that the local bus connection provides the specified 12 VDC supply before module installation. Use appropriate grounding methods for PROFIBUS DP cable shields to reduce communication interference.
Route PROFIBUS DP communication cables separately from high-voltage power wiring and high-current switching conductors. Maintain proper cable termination practices at the network endpoints according to PROFIBUS installation standards.
Confirm module seating, connector engagement, and system power conditions before commissioning. After installation, check communication status through the control system diagnostic tools.
