Overview

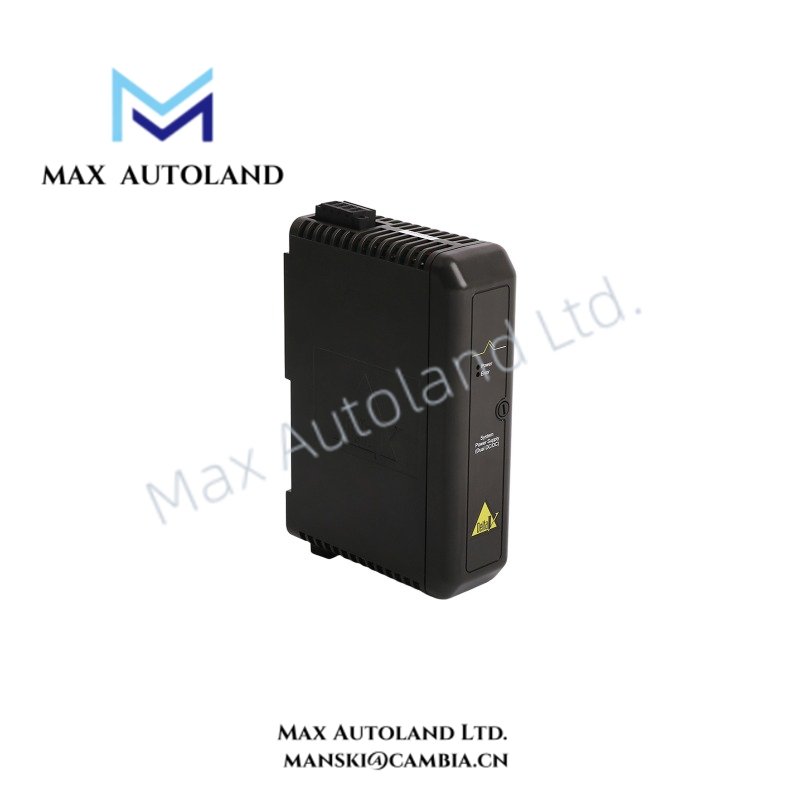

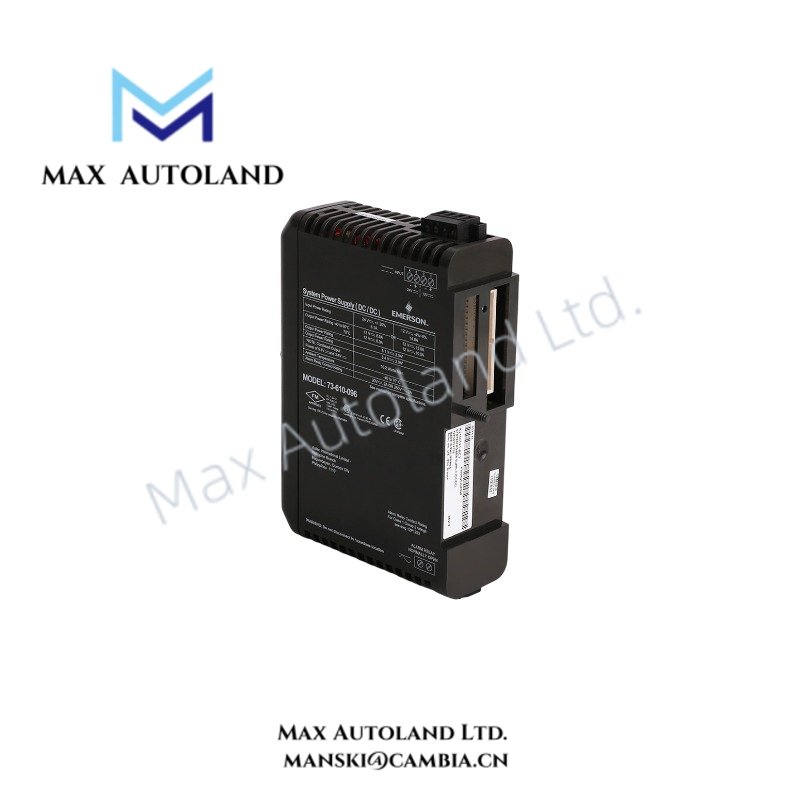

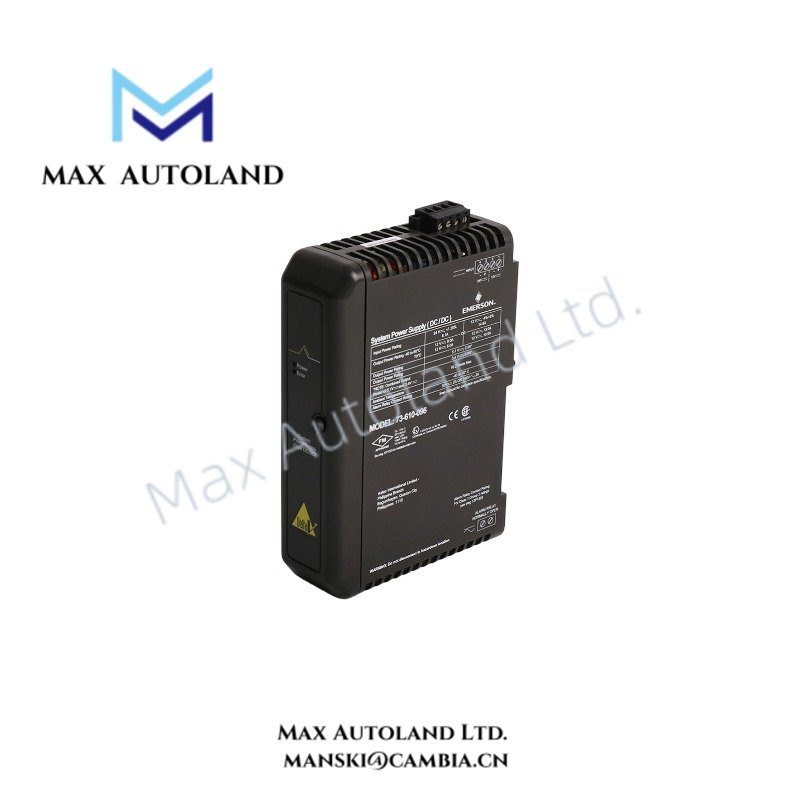

The DeltaV VE5009, also cataloged as the VE5009 24/12-VDC Enhanced System Power Supply, provides regulated DC power conversion and distribution for DeltaV system hardware requiring 12 VDC or 24 VDC input sources.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | VE5009 |
| Brand | DeltaV |
| Operating Temp | -40 to 60 deg C without de-rating; 60 to 70 deg C with de-rating |
| Power Consumption | Input rating: 12 VDC (-4 to +5%) at 14.8 A; 24 VDC +/- 20% at 6.1 A |
| Product Type | 24/12-VDC Enhanced System Power Supply |
| Primary Power | DC input, 2-wire |
| Input Protection | Internally fused, non-replaceable |
| Overvoltage Protection | Output protected at 110% to 120% |
| Storage Temperature | -40 to 70 deg C |
| Relative Humidity | 5 to 95%, non-condensing |
| Vibration Resistance | 1 mm peak-to-peak from 5 Hz to 16 Hz; 0.5 g from 16 Hz to 150 Hz |
| Shock Resistance | 10 g half-sine wave for 11 ms |
DeltaV DC Power Regulation and System Integration
The VE5009 manages DC input conversion for DeltaV system power architectures. It accepts both 12 VDC and 24 VDC sources, then provides controlled output protection through internal overvoltage limitation.
Additionally, the module uses a two-wire DC input connection and includes internal fuse protection. The fuse design prevents field replacement and maintains the specified protection method during operation.
The DeltaV power architecture requires controlled DC distribution paths. Therefore, the VE5009 supports stable power delivery for connected system components while maintaining defined environmental operating limits.
Frequently Asked Questions
Q: What input voltage ranges does the DeltaV VE5009 support?
A: The VE5009 accepts 12 VDC input at -4 to +5% tolerance and 24 VDC input with +/- 20% tolerance.
Q: Does the VE5009 provide replaceable input protection?
A: No. The input protection uses an internally fused design, and the fuse is not replaceable in the field.
Q: Can the VE5009 operate in high-temperature environments?
A: Yes. The module operates from -40 to 60 deg C without de-rating and from 60 to 70 deg C with de-rating.
Field Installation Guidelines
- Install the VE5009 inside the specified DeltaV system enclosure with appropriate mechanical support.
- Connect the DC input wiring according to the defined polarity and system power distribution requirements.
- Keep DC power wiring separated from high-voltage switching cables to reduce electrical interference.
- Use proper grounding methods for the enclosure and connected system components.
- Verify input voltage levels before energizing the module.
- Maintain airflow around the power supply to support thermal performance within the rated temperature range.
- Inspect wiring terminals and mechanical mounting points during scheduled maintenance activities.
