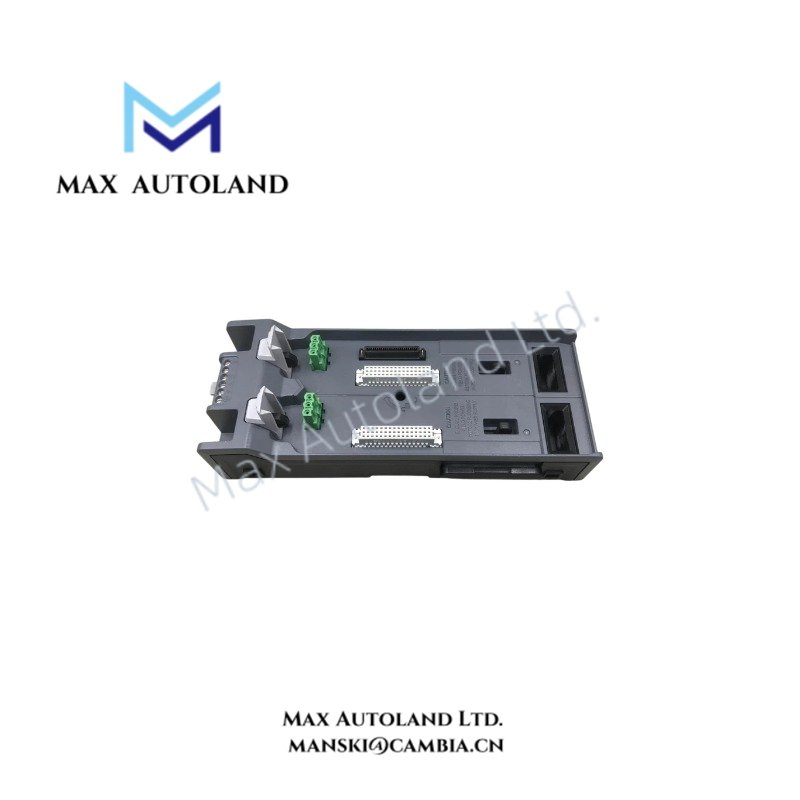

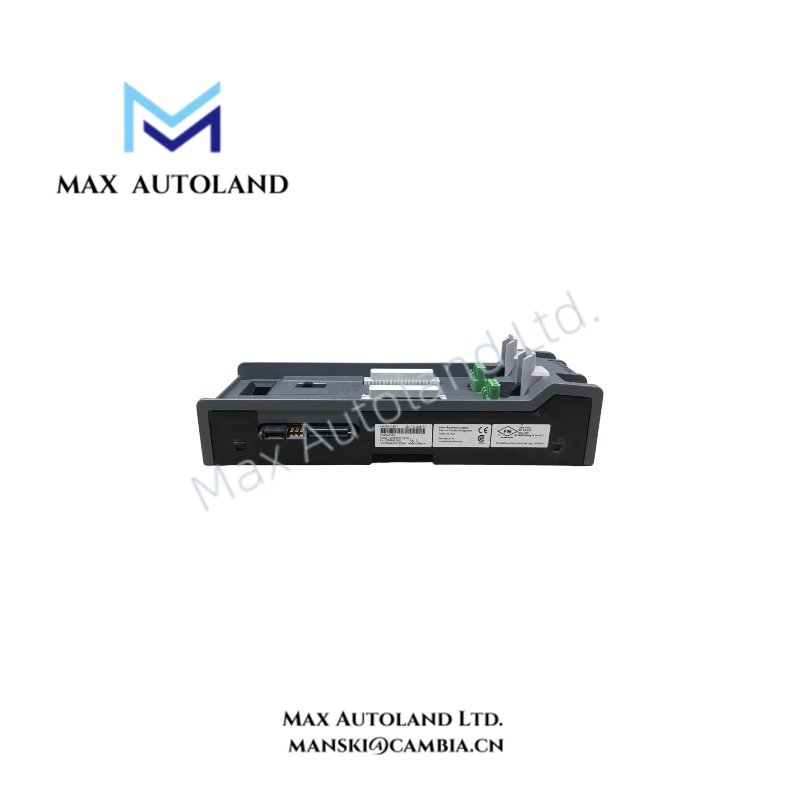

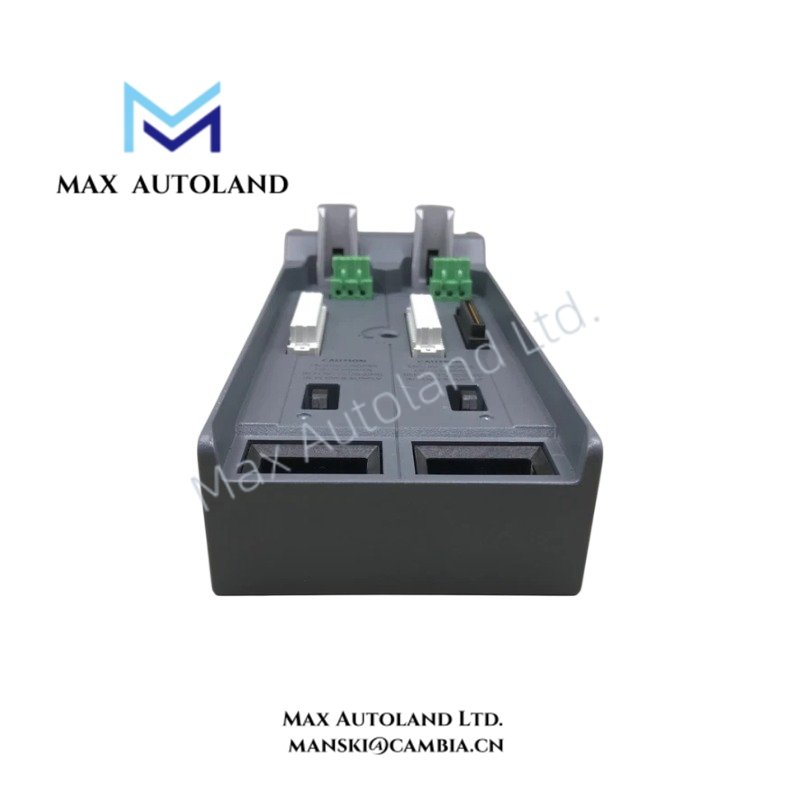

SE3051C0 Emerson DeltaV S-Series 2-Wide Power/Controller Carrier

Hardware Specifications

DeltaV Process Control Power and Bus Integration

The Emerson SE3051C0 uses the DeltaV S-Series carrier architecture to provide electrical and mechanical integration between controller modules, power modules, and system backplane connections. The carrier distributes primary and secondary 24 VDC power paths while maintaining modular installation compatibility.

Additionally, the carrier supports DeltaV hardware configurations requiring channel-to-channel isolation concepts at the I/O system level. It provides the physical carrier structure required for S-Series modules, while field signal conditioning and communication functions remain dependent on the installed DeltaV modules.

The SE3051C0 supports modular cabinet layouts through DIN rail installation. Therefore, system designers can combine controller carriers, I/O carriers, and power components according to the required control architecture.

Frequently Asked Questions

Q: What is the primary electrical function of the Emerson SE3051C0?
A: The SE3051C0 provides 24 VDC power distribution paths and electrical interconnection between DeltaV S-Series controller modules, power modules, and the carrier backplane.

Q: Does the SE3051C0 contain active control electronics?
A: No. The SE3051C0 is a passive carrier assembly. It provides mechanical mounting, power routing, and module interconnection functions without executing control algorithms.

Q: Can the SE3051C0 support redundant power configurations?
A: Yes. The carrier provides primary and secondary 24 VDC power distribution paths for DeltaV S-Series installations configured with redundant power arrangements.

Field Installation Guidelines

• Install the SE3051C0 on a compatible DIN rail inside a DeltaV approved cabinet.
• Verify 24 VDC power polarity before connecting primary and secondary power terminals.
• Confirm that carrier connectors are fully seated before installing controller or power modules.
• Separate power wiring from low-level signal wiring to reduce electrical interference.
• Apply cabinet grounding and shielding practices according to DeltaV installation requirements.
• Inspect mechanical locking features before system energization.
• Maintain environmental conditions within the specified operating temperature range.
