Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ4005X1-BA1 |
| Brand | Emerson |
| Product Type | 2-Wide Power / Controller Carrier |
| System Compatibility | Emerson DeltaV S-Series Distributed Control Systems |
| Origin | United States |
| Mounting Type | DIN Rail Mount |
| Local Bus Power | 12 VDC at 15 A |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | Supports local bus power distribution up to 15 A |
| Shock Resistance | 10 g, 1/2 sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | Meets ISA-S71.04-1985 Class G3 requirements |
DeltaV S-Series Power Distribution and Carrier Integration

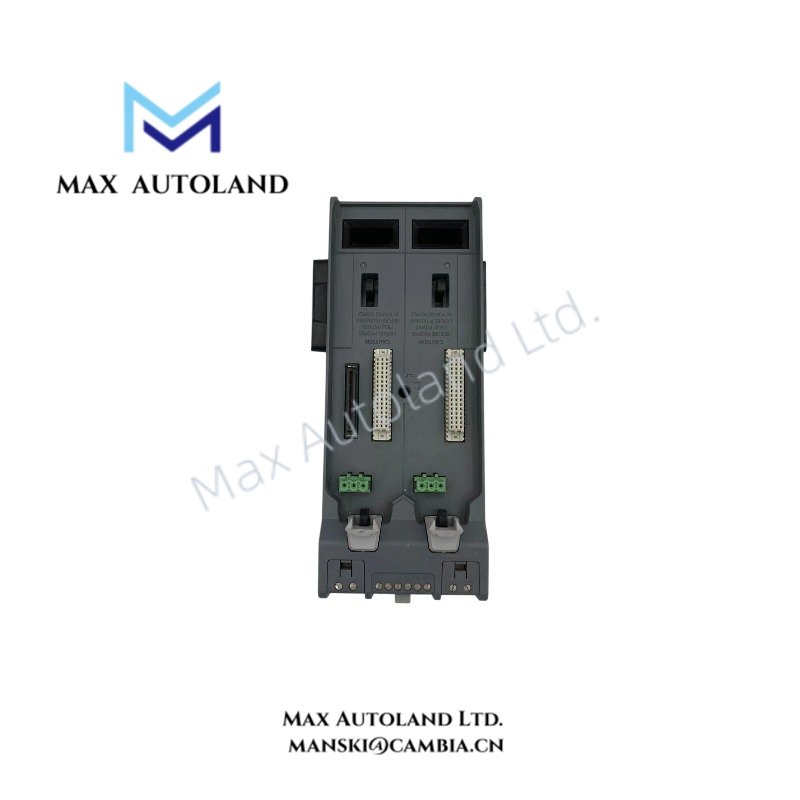

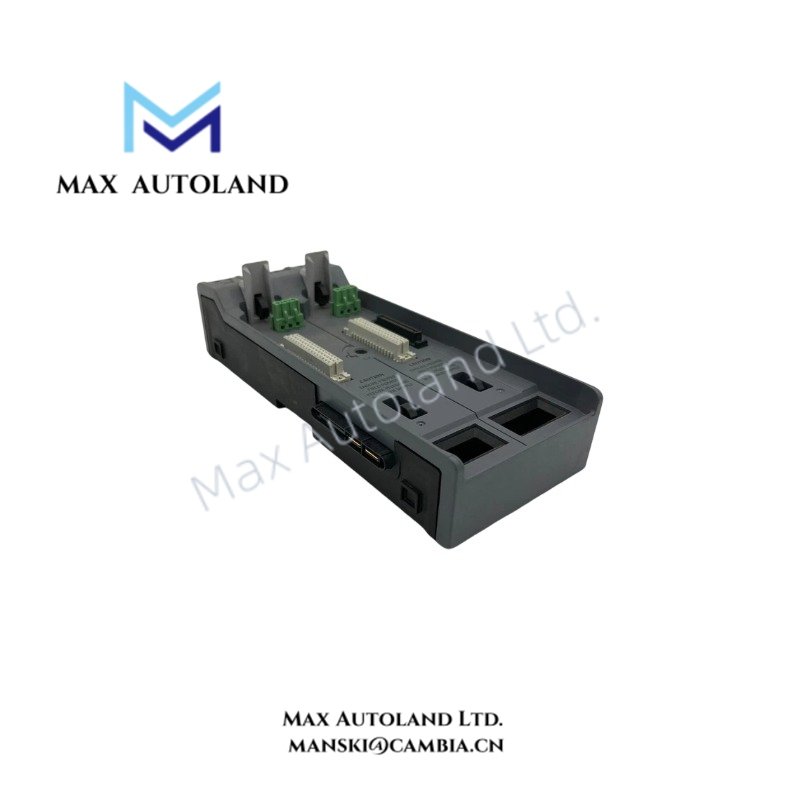

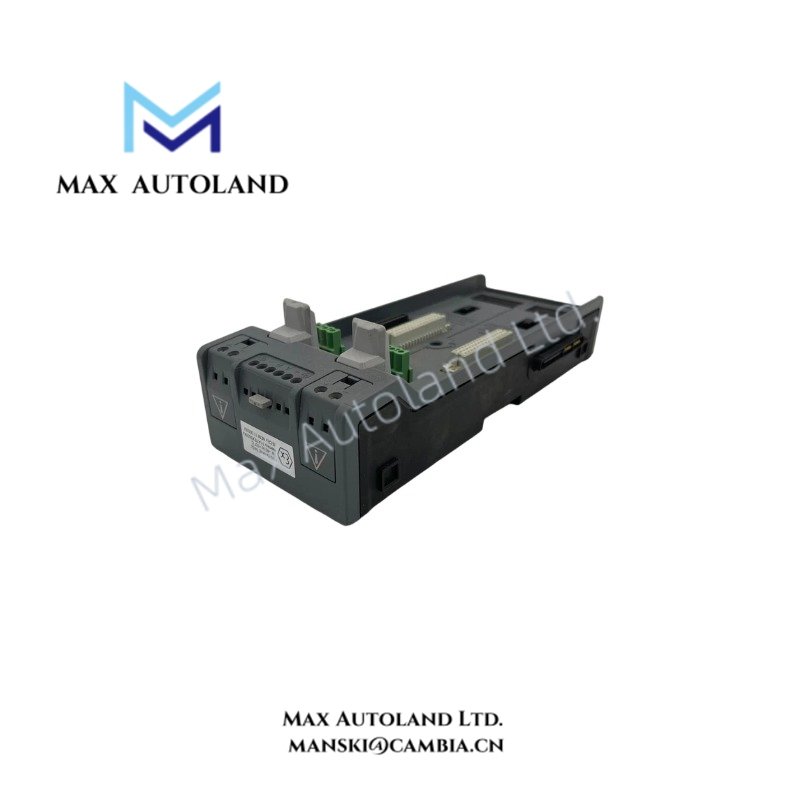

The Emerson KJ4005X1-BA1 provides the mechanical and electrical carrier structure required for DeltaV S-Series controller and power module installation. It distributes 12 VDC local bus power and maintains module alignment through the carrier backplane interface.
Additionally, the carrier design supports DIN rail mounting and modular system expansion. The hardware maintains separation between field wiring paths and system module interfaces, reducing installation complexity in control cabinets.
The DeltaV carrier architecture uses standardized module connections for process control hardware integration. Therefore, proper slot positioning, power loading, and grounding practices are required during system configuration.
Frequently Asked Questions
Q: What function does the KJ4005X1-BA1 provide in a DeltaV S-Series system?
A: The KJ4005X1-BA1 provides a physical carrier platform for mounting controller and power modules while distributing local bus power within the DeltaV S-Series architecture.
Q: Does the KJ4005X1-BA1 require a DIN rail installation method?
A: Yes. The carrier is designed for DIN rail mounting inside industrial control cabinets and requires correct mechanical fixation before module installation.
Q: What power capacity does the local bus support?
A: The carrier supports 12 VDC local bus power distribution with a rated current capacity of 15 A.
Field Installation Guidelines
- Install the carrier on a properly secured DIN rail section with sufficient cabinet support.
- Verify that the cabinet grounding system meets industrial control installation requirements before connecting modules.
- Maintain correct module orientation and ensure all carrier connectors are fully engaged.
- Separate power wiring from sensitive communication wiring to reduce electrical interference.
- Check local bus power loading before adding additional DeltaV modules to the carrier assembly.
- Confirm environmental conditions remain within the specified temperature, humidity, shock, and vibration limits.
