Overview
Specification
| Parameter | Value |
|---|---|

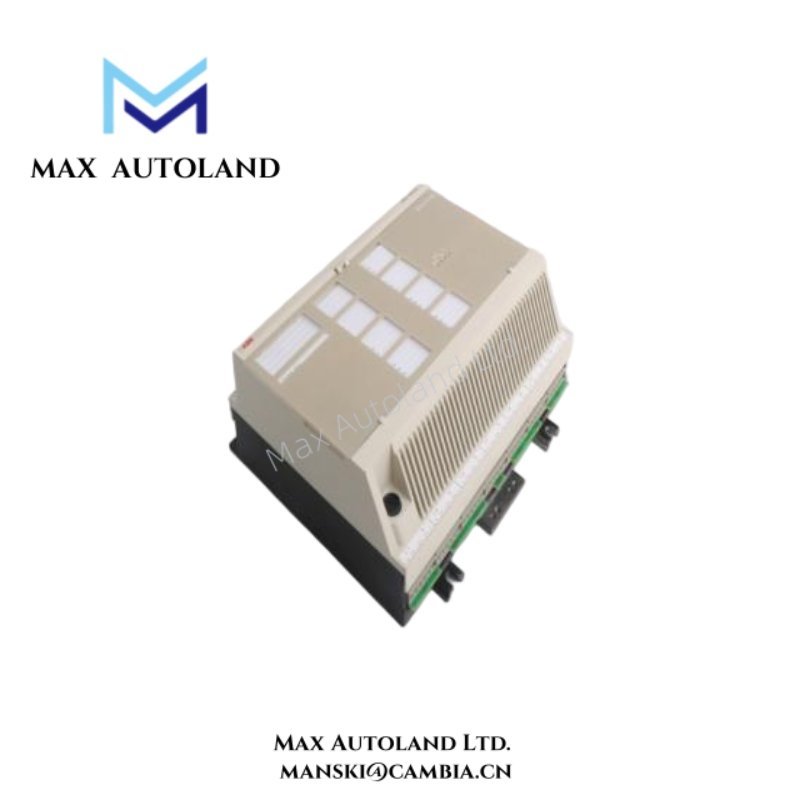

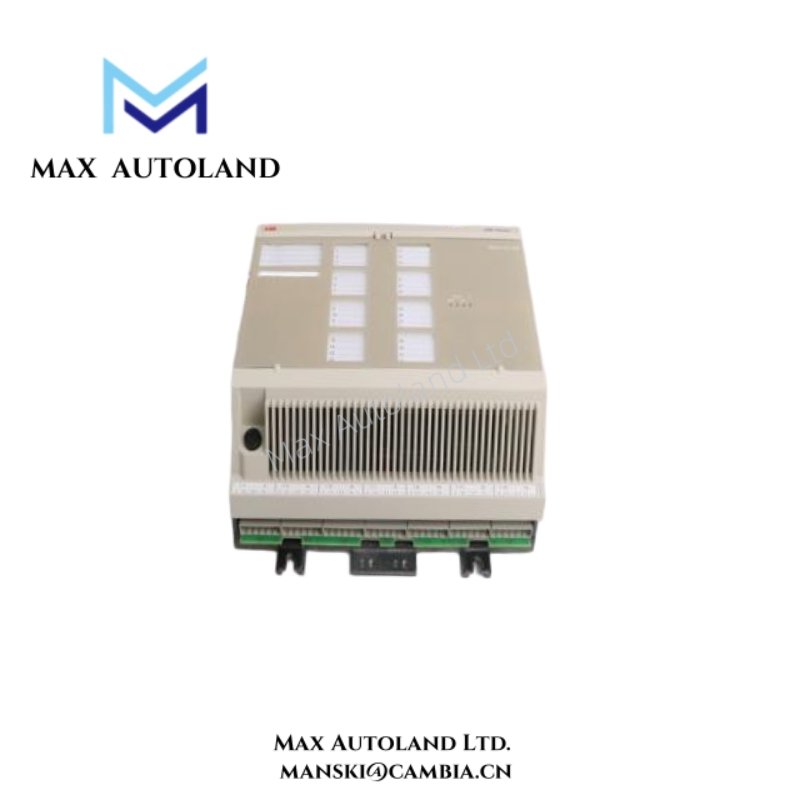

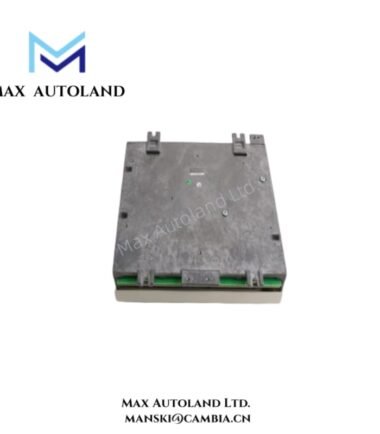

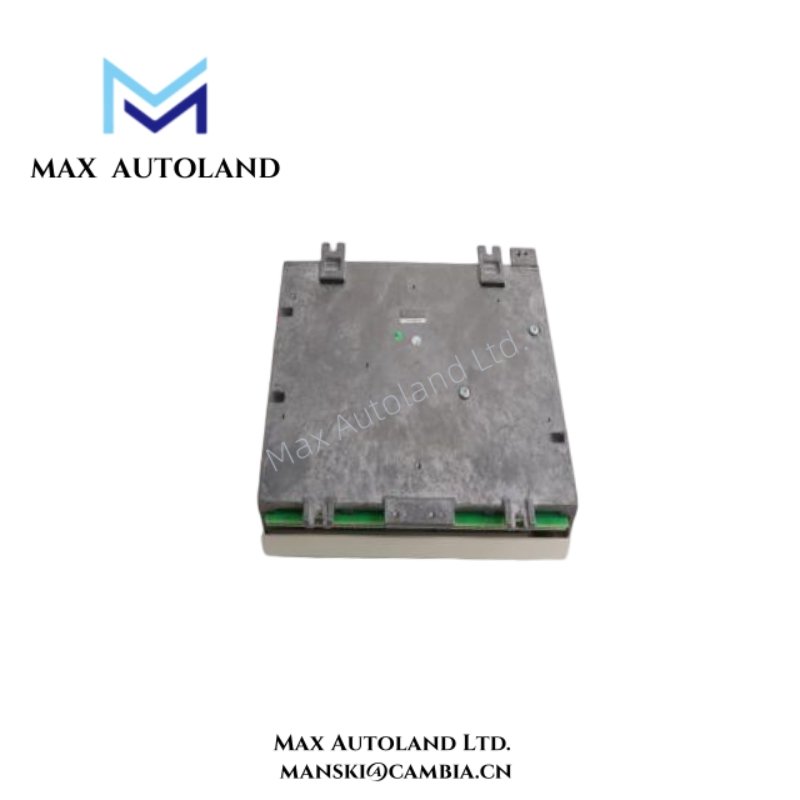

| Product Name | Remote In/Out Basic Unit |
| Model Number | DSAX 452 |
| Order Code | 5712289-A |
| System Platform | ABB Advant OCS |
| Function | Remote Input/Output for LDB network |
| Digital Inputs | Up to 16 channels, 24 V DC standard |
| Digital Outputs | Up to 16 channels, relay or transistor type |
| Analog Inputs | Up to 8 channels, 0–10 V / 4–20 mA |
| Analog Outputs | Up to 8 channels, 0–10 V / 4–20 mA |
| Communication Interface | Advant OCS LDB |
| Diagnostics | LED indicators for input/output status |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 8 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | −20°C to +70°C |
| Humidity Range | 5–95% non-condensing |
| Mounting | Advant OCS rack or panel |
| Dimensions | 210 × 120 × 50 mm (approx.) |
| Weight | 1.3 kg (approx.) |
| Housing Material | Industrial-grade metal enclosure |
FAQ
A1: It provides remote input/output functionality for Advant OCS LDB networks.
Q2: How many channels does it support?
A2: Up to 16 digital I/O channels and 8 analog I/O channels per unit.
Q3: Is the module compatible with existing Advant OCS racks?
A3: Yes, it integrates seamlessly into standard Advant OCS system racks.
A4: Both digital (24 V DC) and analog (0–10 V / 4–20 mA) signals.
Q5: Does it include diagnostic indicators?
A5: Yes, LED indicators display the status of all input and output channels.
A6: Yes, it supports continuous operation in temperature and humidity extremes.
