Overview
Specification
| Parameter | Description |
|---|---|

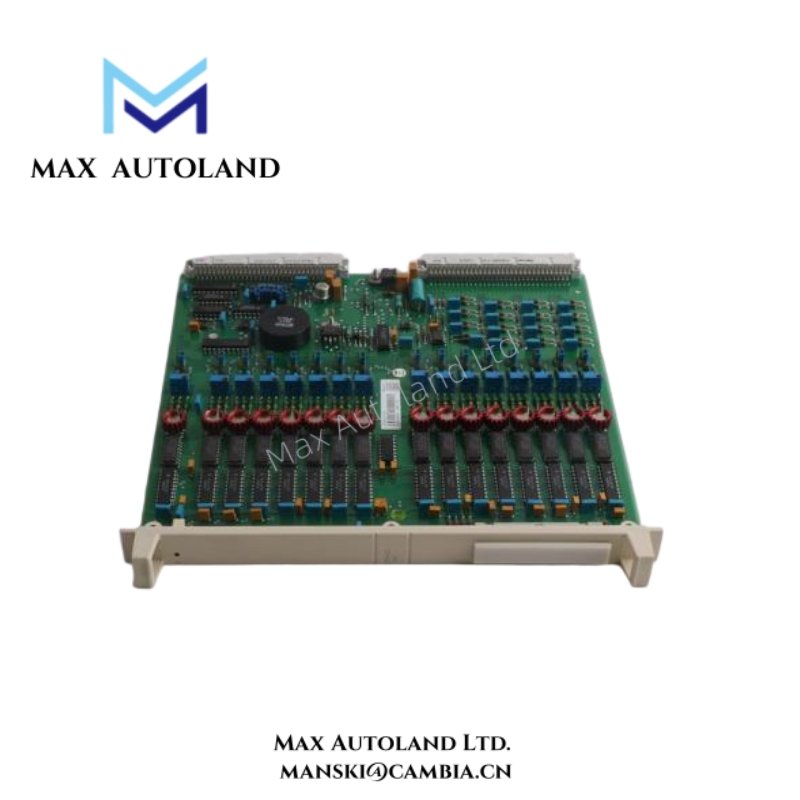

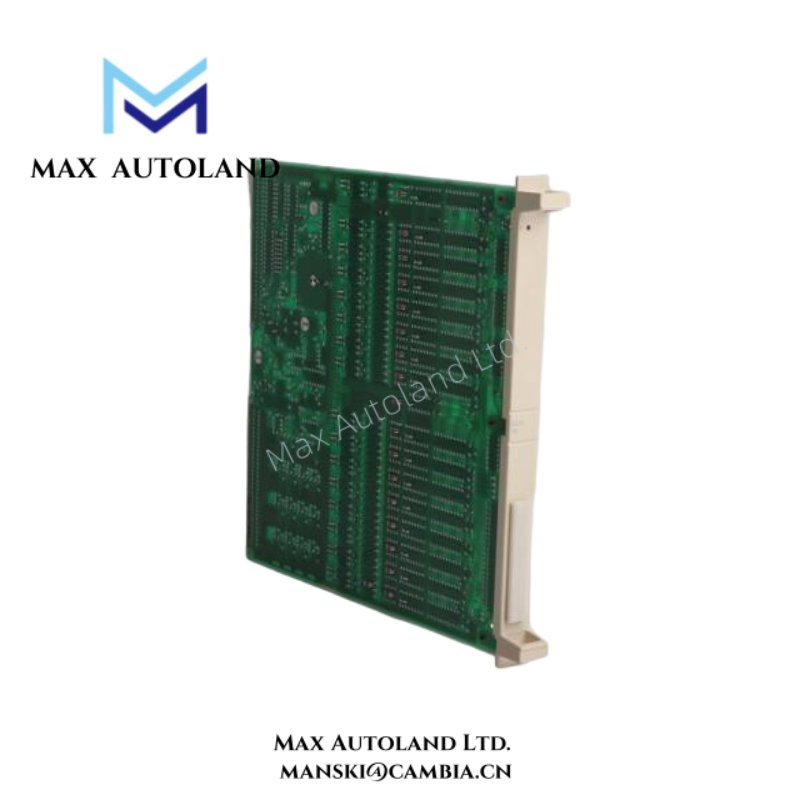

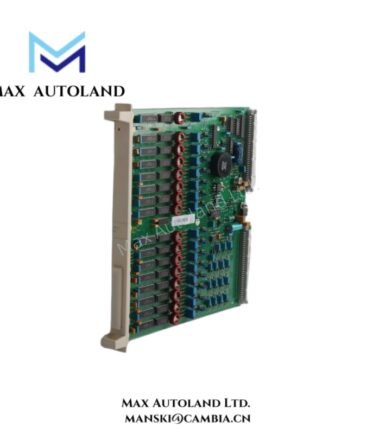

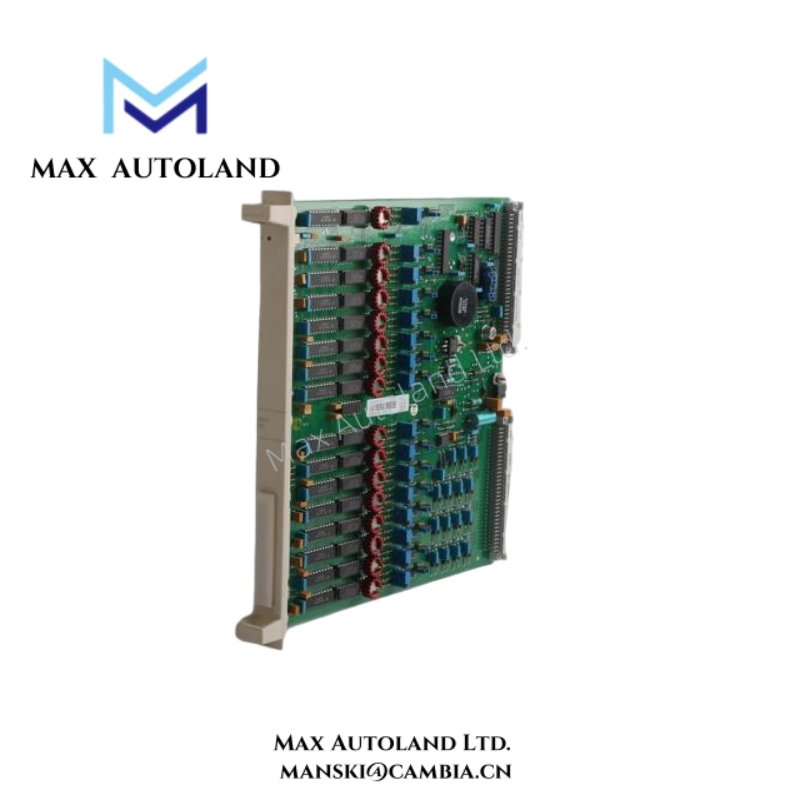

| Model Number | DSAO 130 57120001-FG |
| Module Type | Analog Output Board |
| System Compatibility | ABB Advant OCS / 800xA Automation Systems |
| Channels | 16 analog output channels |
| Output Type | 4–20 mA current, 0–10 V voltage selectable |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit DAC |
| Load Resistance | 0–500 Ω (current output), ≥2 kΩ (voltage output) |
| Input Voltage | 24 V DC typical |
| Power Consumption | ≤ 5 W |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | –20°C to 70°C (–4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted in standard ABB control cabinet |
| Diagnostics | LED indicators for channel and board status |
| Dimensions | Standard DSAO module size |
| MTBF | >100,000 hours typical in industrial environments |
| Certifications | Complies with ABB industrial and safety standards |
FAQ
It works with ABB Advant OCS and 800xA automation systems.
Q2: How many channels does it provide?
It provides 16 analog output channels for precise process control.
Q3: What signal types does it support?
Both 4–20 mA current and 0–10 V voltage outputs are supported.
Q4: Can it operate in harsh industrial environments?
Yes, it tolerates electrical noise, vibration, and temperature fluctuations.
Q5: Does it require complex installation or configuration?
No, it is plug-in compatible and requires minimal setup for operation.
