Overview

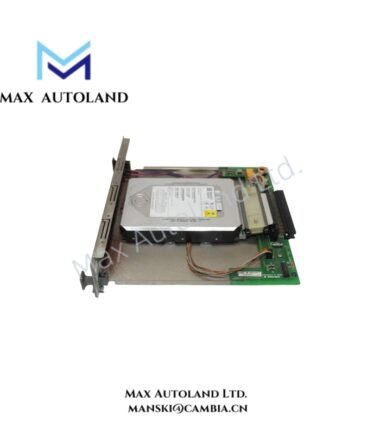

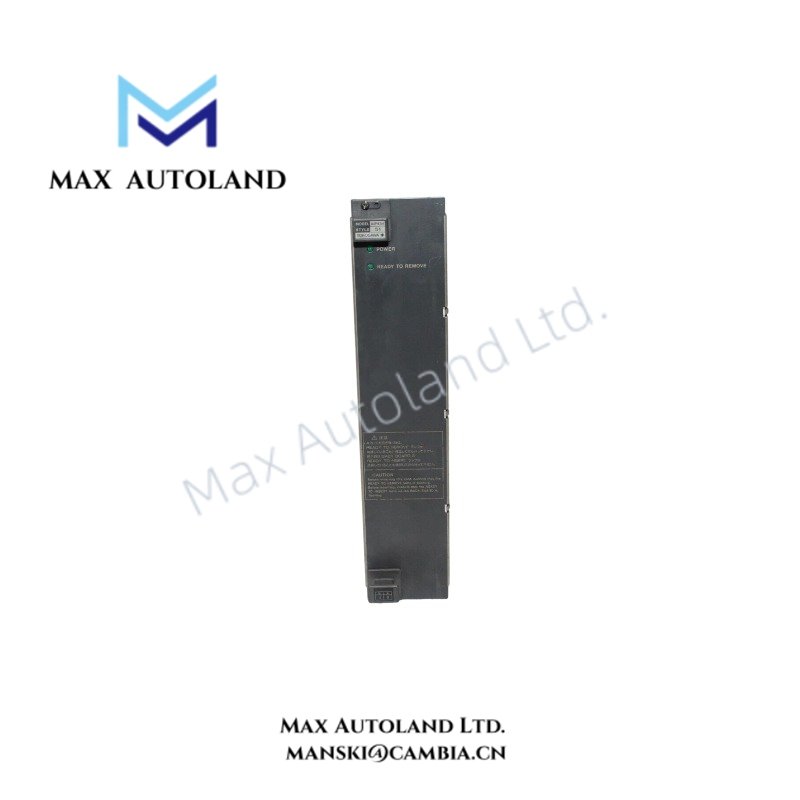

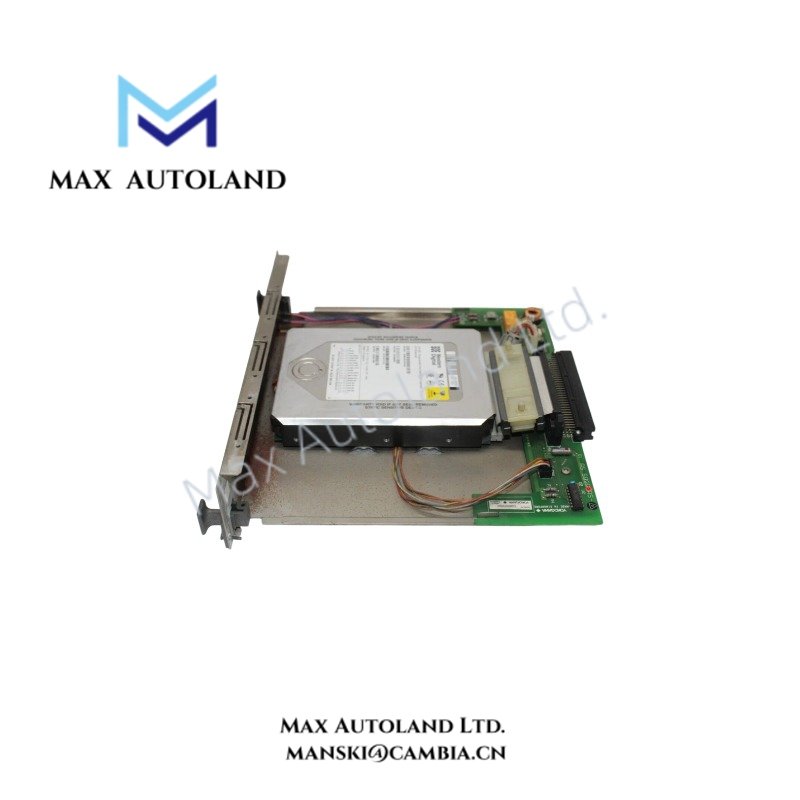

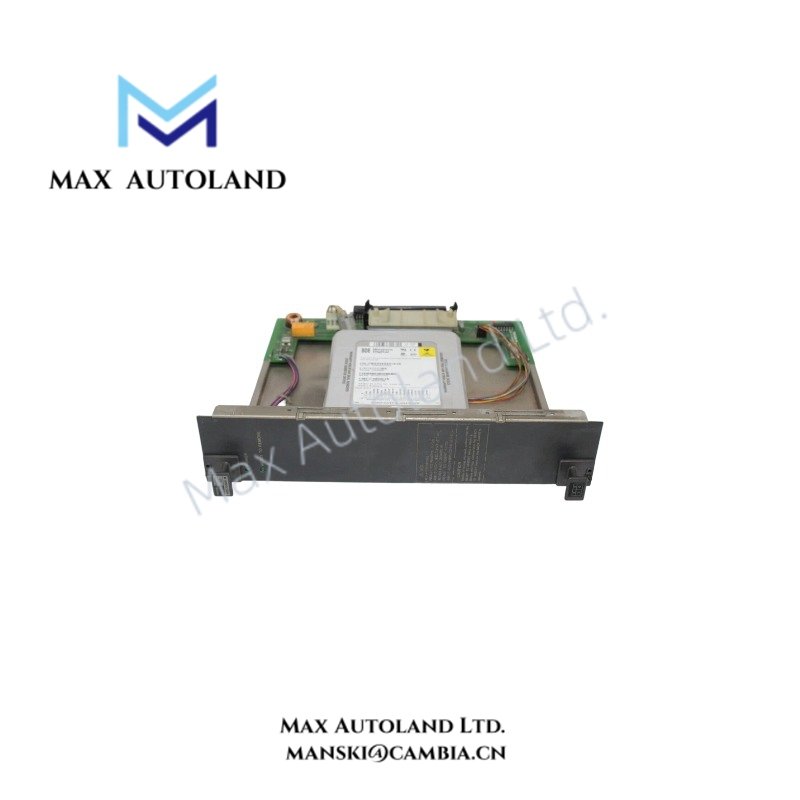

The Yokogawa AIP434-S1, also cataloged as the AIP434-S1 Hard Disk Storage Module, operates as a dedicated data storage component for system files, configuration data, and historical records within Yokogawa CENTUM CS and CENTUM VP DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP434-S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Hard Disk / Storage Module |
| System Compatibility | Yokogawa CENTUM CS and CENTUM VP Distributed Control Systems |
| Storage Capacity | Approx. 4.55 GB (configuration dependent) |
| Mounting Type | Rack-mounted / module slot installation |
| Operating Voltage | 24 VDC |
| Weight | Approx. 1.3 kg to 1.34 kg |
| Dimensions | Approx. 51 mm x 254 mm x 254 mm |
Yokogawa DCS Data Storage Interface Characteristics
The Yokogawa AIP434-S1 provides physical storage functions for CENTUM CS and CENTUM VP system environments. It stores configuration parameters, operational records, alarm history, and system files through the designated controller or workstation hardware interface.
Furthermore, the module supports structured data access within Yokogawa DCS architectures. Its installation uses the specified rack or module slot arrangement to maintain correct electrical connection with the system backplane.
For Yokogawa process control applications, storage modules operate alongside DCS hardware components that manage field communication protocols. These systems commonly integrate process signals through 4-20 mA HART loops, FOUNDATION Fieldbus, or Profibus PA networks, while storage hardware maintains configuration and historical information.
Frequently Asked Questions
Q: Is the Yokogawa AIP434-S1 a field signal input module?
A: No. The AIP434-S1 functions as a storage hardware module and does not directly process analog or digital field input signals.
Q: Can the AIP434-S1 be installed in any Yokogawa DCS rack?
A: No. Installation requires compatibility with the designated CENTUM CS or CENTUM VP hardware configuration and approved module slot arrangement.
Q: Does the AIP434-S1 support hot-swapping during system operation?
A: Available documentation does not confirm hot-swap capability. Replacement procedures should follow the applicable Yokogawa maintenance instructions for the installed DCS platform.
Field Installation Guidelines
- Verify the Yokogawa system hardware configuration before installation.
- Confirm that the module slot and rack interface match the AIP434-S1 installation requirements.
- Use proper grounding methods for the DCS cabinet and maintain correct cable shielding practices.
- Keep storage modules protected from excessive vibration, contamination, and unauthorized mechanical handling.
- Follow Yokogawa maintenance procedures when removing or replacing the module to prevent configuration or data integrity issues.
