Overview

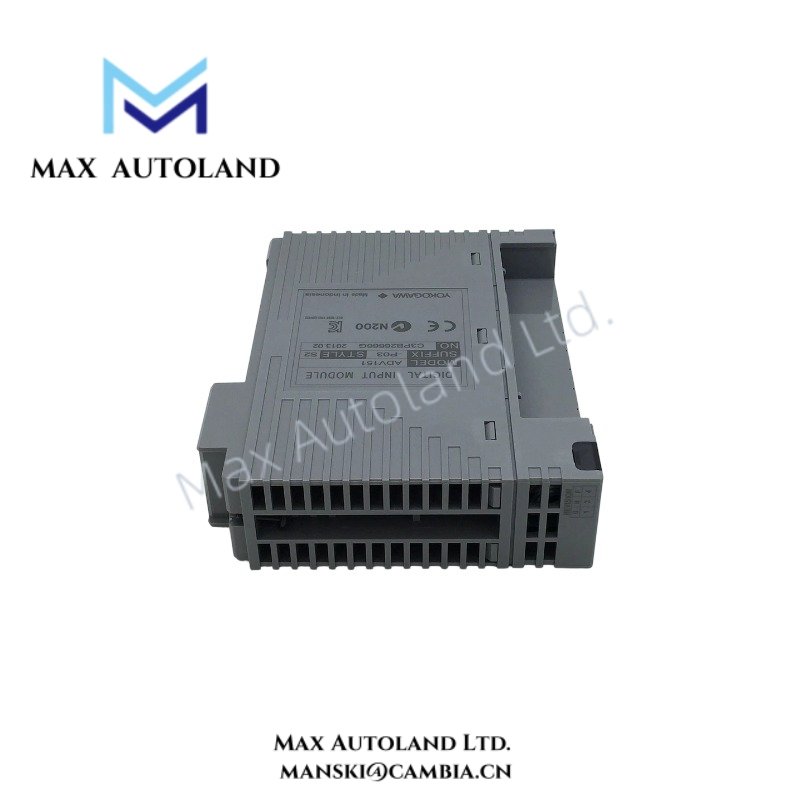

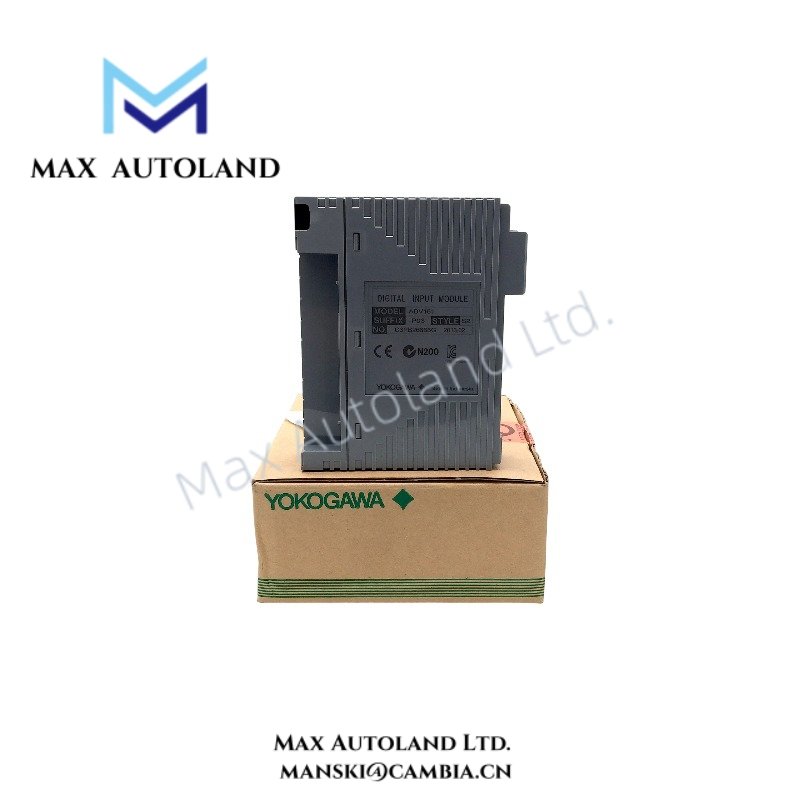

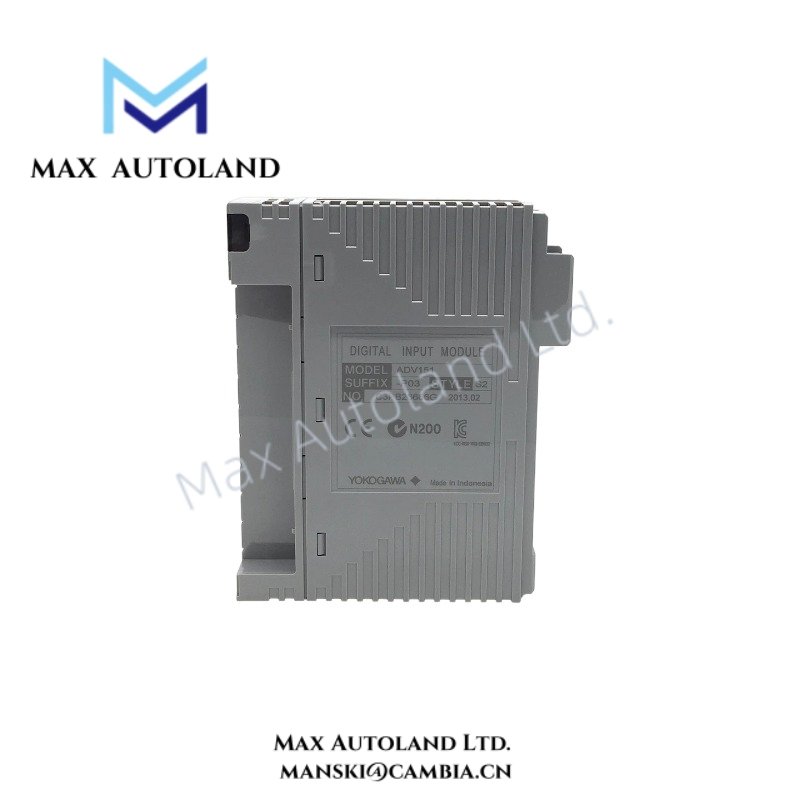

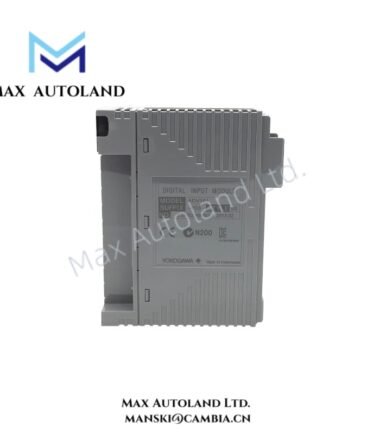

Configured for 24 V DC binary signal acquisition in Yokogawa CENTUM VP and CENTUM CS 3000 DCS platforms, the Yokogawa ADV151-P03/D5A00 (ADV151 Digital Input Module) provides direct electrical execution for ON/OFF status monitoring from field switches, sensors, and relay contacts.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P03/D5A00 |
| Base Model | ADV151 |
| Brand | Yokogawa |
| Product Type | Digital Input Module |
| System Platform | CENTUM VP / CENTUM CS 3000 DCS |
| Origin | Japan |
| Weight | Not specified in available technical data |
| Dimensions | Not specified in available technical data |
| Input Channels | 32 channels |
| Input Signal Type | 24 V DC ON/OFF discrete input |
| Input Configuration | Sink / Source input |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or lower |
| Input Current | 4.1 mA +/- 20% per channel at 24 V DC |
| Maximum Input Voltage | 30.0 V DC |
| Input Response Time | <= 8 ms for status input; >= 20 ms for pushbutton input |
| Isolation Voltage | 1500 V AC between input signal and system for 1 minute |
| External Interface | Dedicated cable connection through D5A00 adapter interface |
| Redundant Operation | Supported in single or dual redundant configurations |
| Power Consumption | Maximum 500 mA at 5 V DC internal supply |
Channel Isolation and DCS Signal Processing
The ADV151-P03/D5A00 applies Yokogawa process I/O design methods for discrete field signal handling. The module receives 24 V DC status signals and transfers channel data to the CENTUM control platform through the FIO architecture.
Furthermore, the module provides channel group isolation between field wiring and system electronics. This design limits electrical interference from external devices and supports stable ON/OFF status acquisition.
For Yokogawa process control applications, the module architecture supports channel-to-channel isolation practices used in distributed control environments. The system separates field input circuits from controller processing circuits to reduce signal disturbance during industrial operation.
Frequently Asked Questions
Q: Does the ADV151-P03/D5A00 support redundant installation?
A: Yes. The module supports single and dual redundant configurations within compatible Yokogawa CENTUM VP and CENTUM CS 3000 system architectures.
Q: What field devices can connect to the ADV151-P03/D5A00?
A: The module accepts 24 V DC binary signals from devices such as limit switches, proximity sensors, pushbuttons, and relay contacts.
Q: Does the D5A00 option change the electrical input function of the ADV151 module?
A: No. The D5A00 suffix identifies the external interface adapter configuration. The core digital input function remains based on the ADV151 hardware design.
Field Installation Guidelines
- Install the ADV151-P03/D5A00 in the designated Yokogawa I/O node position according to the CENTUM system hardware configuration.
- Verify that field wiring polarity matches the configured sink or source input arrangement before energizing the module.
- Route digital input cables separately from high-voltage power lines and strong electromagnetic interference sources.
- Connect cable shields according to the plant grounding standard to reduce electrical noise coupling.
- Confirm field device voltage levels remain within the specified 24 V DC input range before commissioning.
- Check connector seating and adapter installation condition before applying system power.
- Validate channel assignment and input status indication through the CENTUM engineering environment after installation.
