Overview

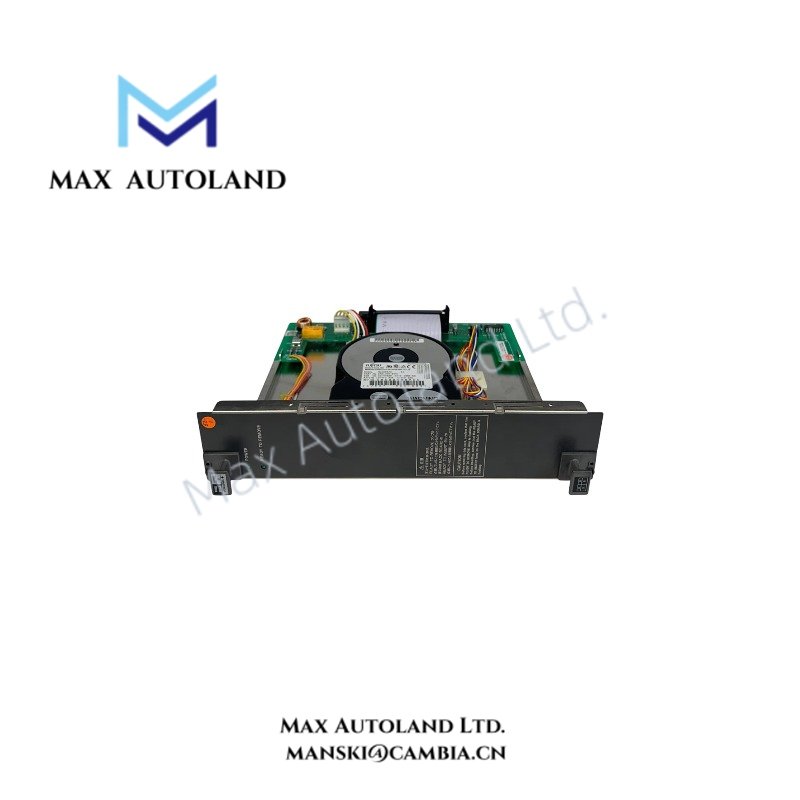

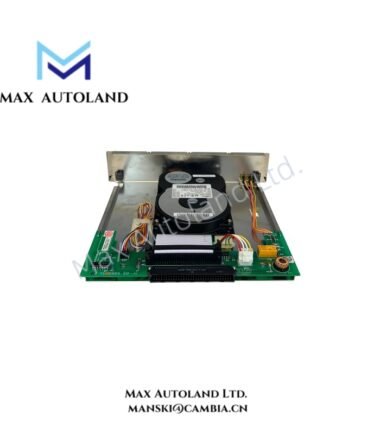

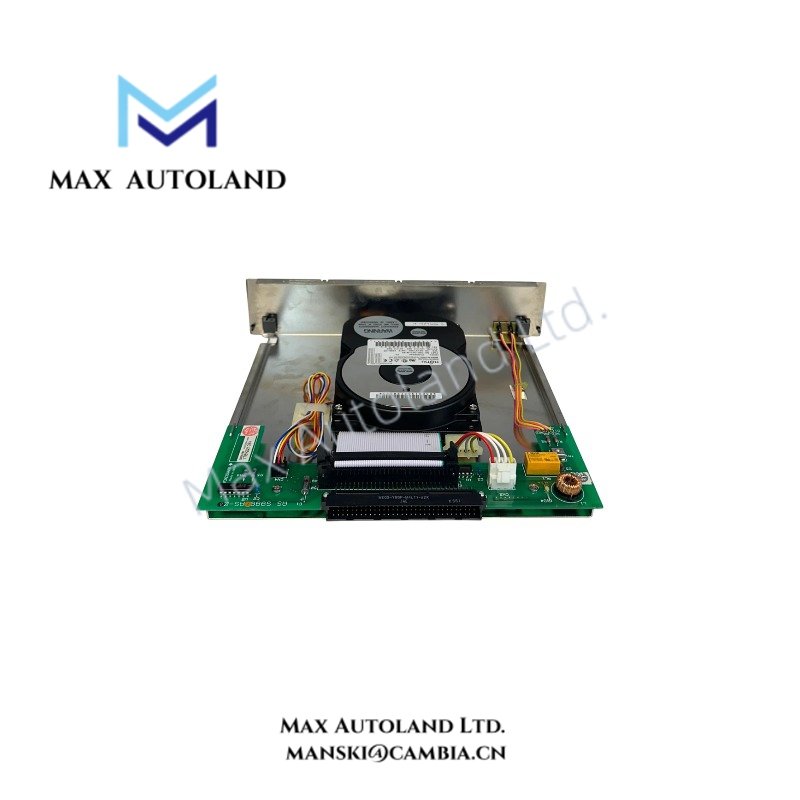

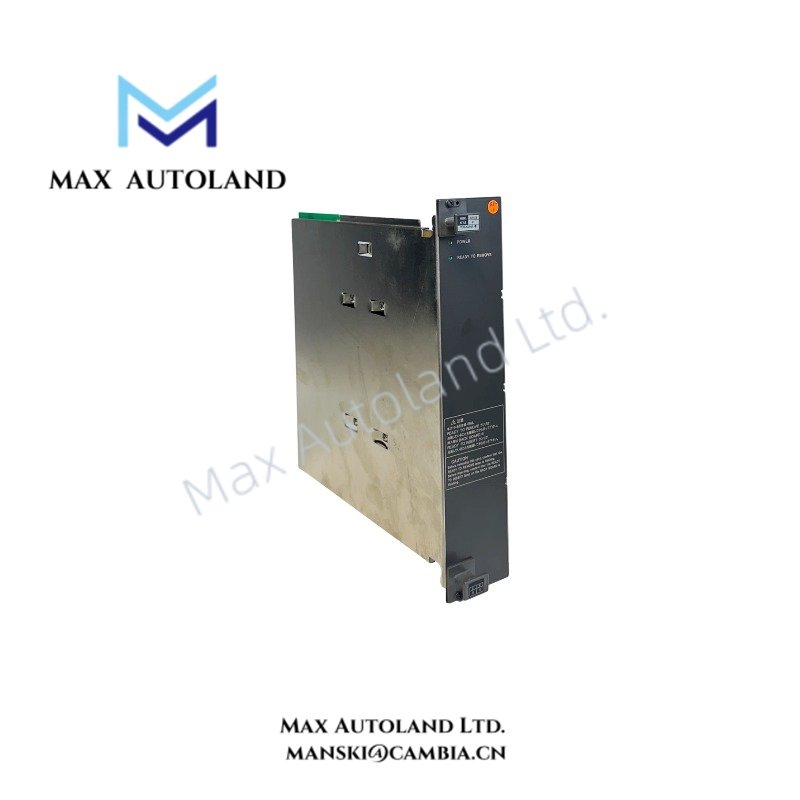

The Yokogawa AIP423 S1, also cataloged as the AIP423 Hard Disk Module, operates as a dedicated hardware component for data storage and system data handling within Yokogawa CENTUM series DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP423 S1 |
| Brand | Yokogawa |
| Product Type | Hard Disk Module |
| Origin | Japan |
| Weight | 1 kg |
| Dimensions | 7.6 cm x 25.4 cm x 27.9 cm |
| Operating Temp | -20 deg C to +60 deg C |
| Operating Voltage | 24 VDC nominal, 18 VDC to 32 VDC range |
| Mounting Type | Yokogawa standard rack or system mounting configuration |
| System Compatibility | Yokogawa CENTUM CS, CENTUM VP and related DCS platforms |
Yokogawa DCS Data Handling and Communication Characteristics
The AIP423 S1 functions as a hardware storage and processing component inside Yokogawa DCS architectures. It manages system data exchange between control system elements and supports structured data access within the CENTUM environment.
Additionally, Yokogawa DCS modules commonly implement process communication interfaces such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity through compatible system components. The AIP423 S1 itself serves as a physical system module and does not replace field communication interface hardware.
The module design supports controlled data operation with Yokogawa system backplanes. Therefore, installation requires correct rack positioning, connector alignment, and system configuration verification before operation.
Frequently Asked Questions
Q: Is the AIP423 S1 compatible with Yokogawa CENTUM systems?
A: The AIP423 S1 is designed for integration with Yokogawa CENTUM CS, CENTUM VP, and related DCS platforms. System compatibility depends on the installed controller and hardware configuration.
Q: Does the AIP423 S1 provide direct 4-20 mA field signal input functions?
A: No. The AIP423 S1 is classified as a Hard Disk Module. Analog signal processing requires dedicated Yokogawa input modules such as AAI series or equivalent I/O hardware.
Q: Can the AIP423 S1 be installed without system configuration checks?
A: No. Installation requires verification of rack position, connector condition, grounding arrangement, and compatibility with the target Yokogawa DCS configuration.
Field Installation Guidelines
- Install the module according to Yokogawa rack layout requirements and system hardware documentation.
- Verify all backplane connectors are clean and correctly aligned before insertion.
- Maintain proper cabinet grounding to reduce electrical noise and interference.
- Separate module signal wiring from high-current power cables where applicable.
- Confirm system firmware and hardware compatibility before replacement or commissioning.
- Follow standard ESD protection procedures when handling electronic assemblies.
