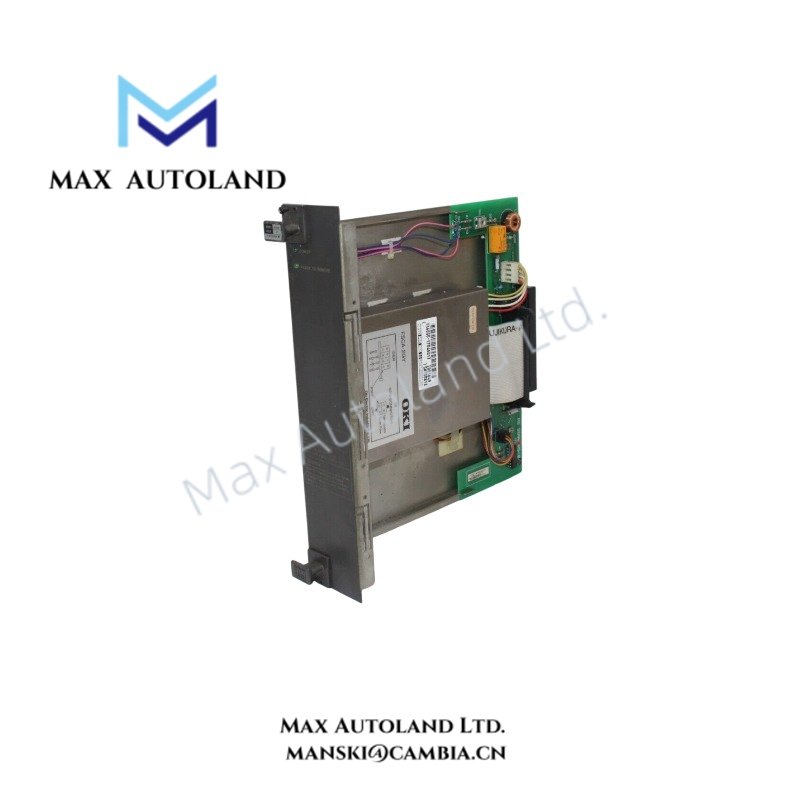

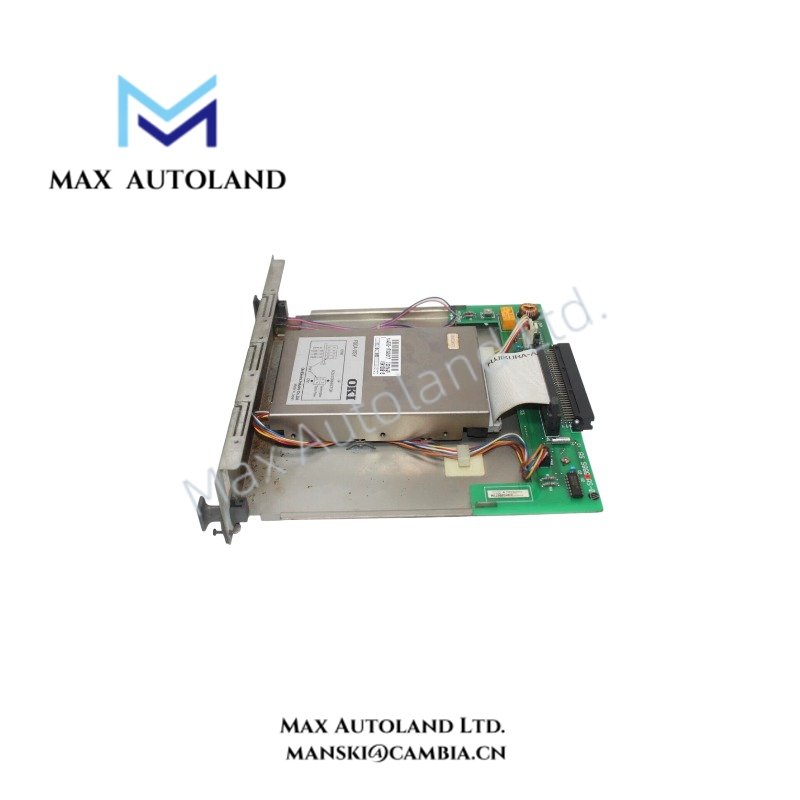

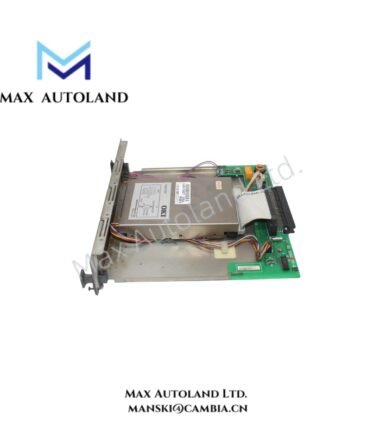

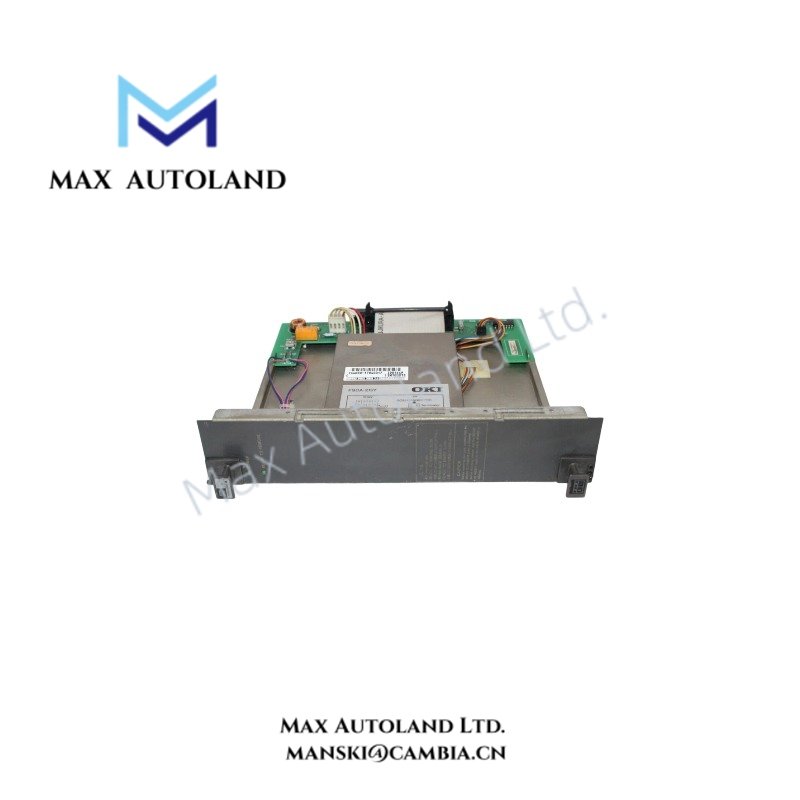

Yokogawa AIP444-S1 Industrial Automation Module
The Yokogawa AIP444-S1, also cataloged as the AIP444-S1 Industrial Automation Module, operates as a dedicated hardware component for signal processing and control execution within Yokogawa CENTUM DCS platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP444-S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Dimensions | Compact modular design for industrial rack or panel mounting |
| Operating Temp | -10 deg C to +60 deg C |
| Power Consumption | Not specified in available documentation |
| Product Type | Industrial Automation / Control System Module |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Communication Interface | Industrial communication interfaces depending on system configuration |
| Mounting Type | Yokogawa modular control system installation |
Yokogawa DCS Signal Interface and Process Control Characteristics
The AIP444-S1 integrates with Yokogawa process control architectures to support structured module-level signal handling and system communication. In addition, Yokogawa DCS configurations commonly apply channel-to-channel isolation methods to separate field signals and reduce electrical interference during process operation.
The module design supports integration with industrial instrumentation networks where analog and digital process data exchange requires stable electrical conditioning. Furthermore, Yokogawa control platforms can incorporate communication functions such as 4-20 mA HART loop protocol, FOUNDATION Fieldbus, or Profibus PA connectivity depending on the installed I/O architecture.
The AIP444-S1 installation requires correct grounding, shielding, and field wiring practices to maintain signal integrity. Therefore, cable routing should avoid high-voltage power lines and electromagnetic interference sources.
Frequently Asked Questions
Q: Does the Yokogawa AIP444-S1 support hot-swap replacement?
A: Hot-swap capability depends on the installed Yokogawa control system chassis and configuration. The module replacement procedure must follow the applicable CENTUM system maintenance instructions.
Q: What power supply does the AIP444-S1 require?
A: The module operates with a 24 VDC industrial power supply environment. Actual current consumption depends on the installed system configuration.
Q: Can the AIP444-S1 communicate directly with field instruments?
A: The module communication capability depends on the Yokogawa DCS architecture and connected I/O configuration. Field device protocols are determined by the installed interface modules and system settings.
Field Installation Guidelines
- Install the AIP444-S1 in the designated Yokogawa system rack or module carrier according to the hardware configuration manual.
- Verify that the 24 VDC power source matches the system power requirements before connection.
- Connect field wiring using appropriate industrial terminal blocks and maintain correct polarity.
- Apply shield grounding practices according to Yokogawa installation standards to reduce electrical noise.
- Separate signal cables from high-current power cables to minimize electromagnetic interference.
- Confirm module recognition and diagnostic status through the DCS engineering workstation after installation.
