Overview

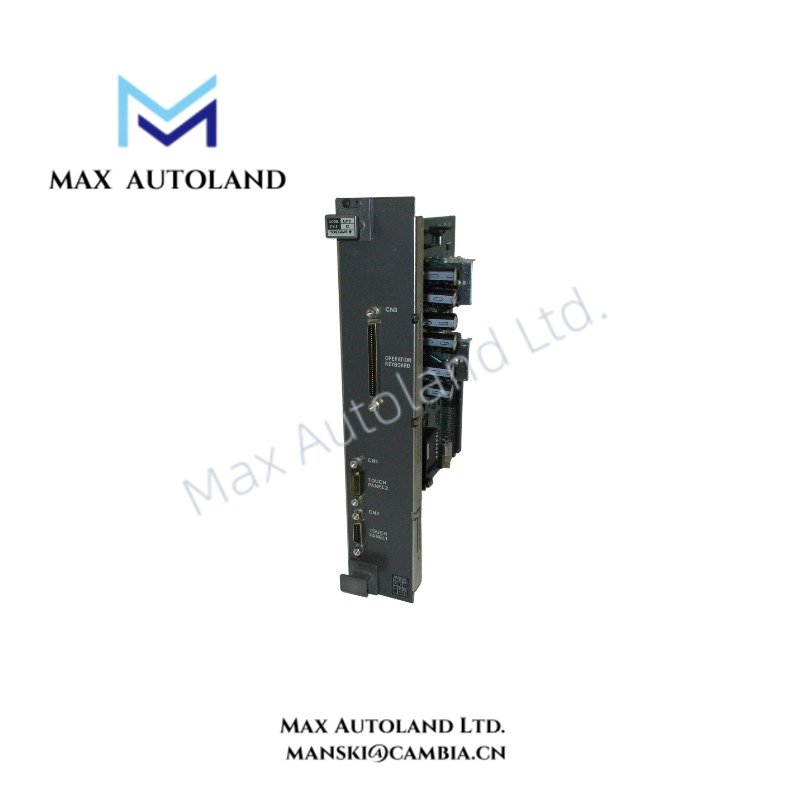

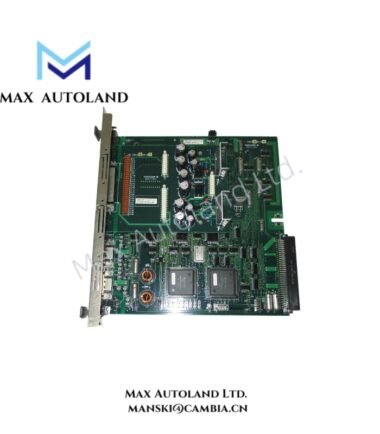

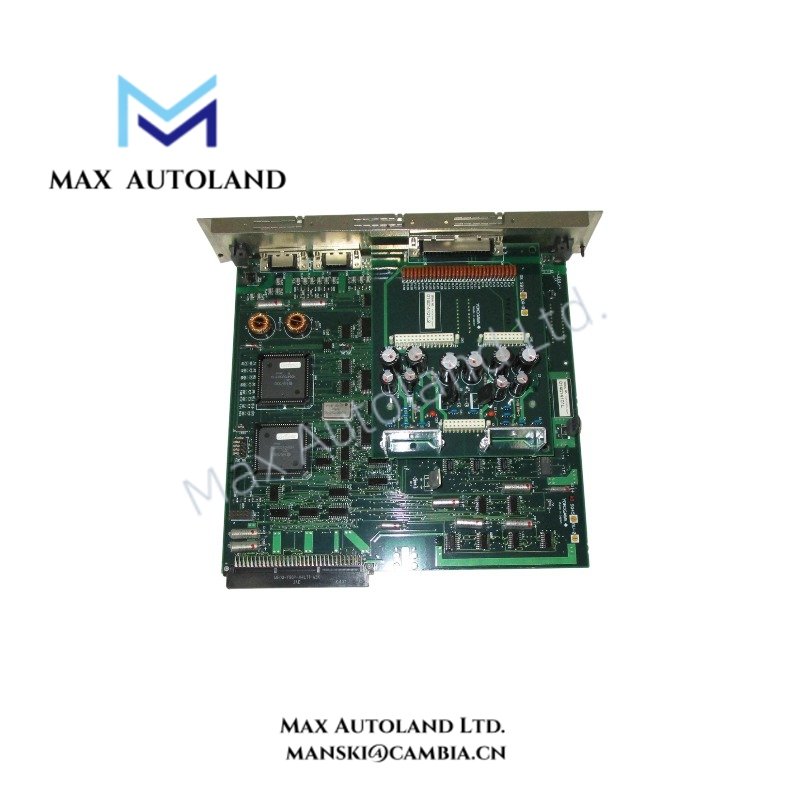

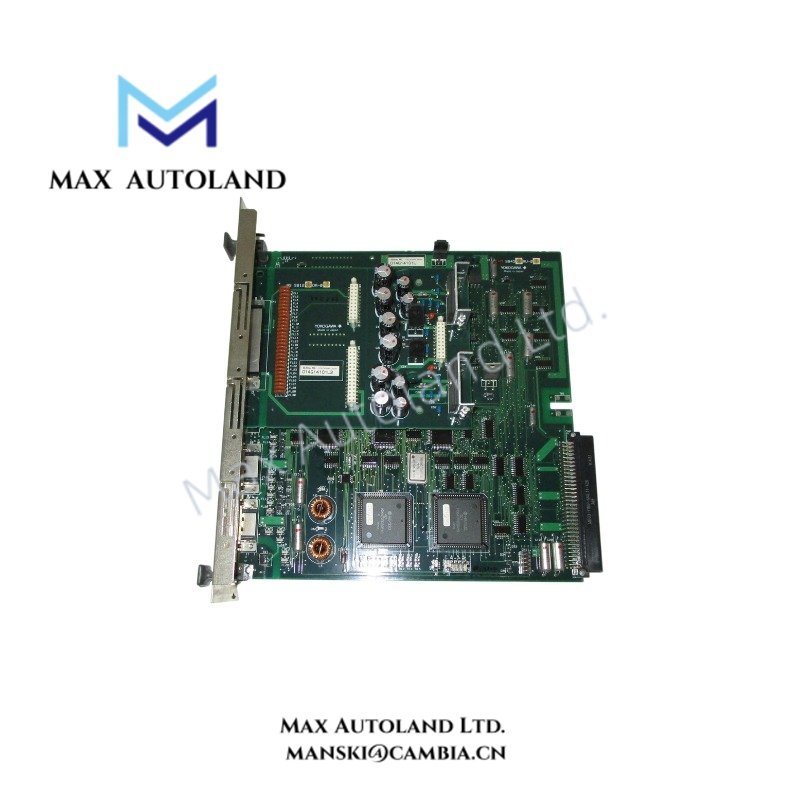

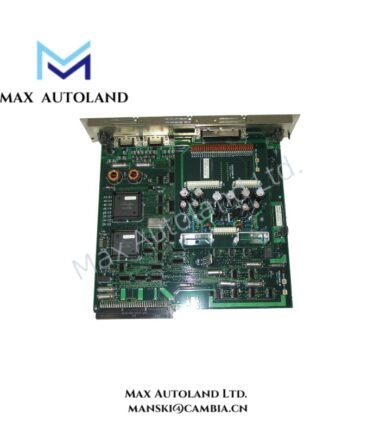

The Yokogawa AIP121 S2, also cataloged as the AIP121 S2 Analog Input Module, operates as a dedicated hardware component for analog signal acquisition and A/D conversion within Yokogawa CENTUM CS 3000 and CENTUM VP DCS platforms. The module processes field transmitter signals, including 4-20 mA current loops and voltage inputs, then transfers converted data through the system architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP121 S2 |
| Brand | Yokogawa |
| Product Type | Analog Input Module / Analog Input Processor Module |
| System Compatibility | Yokogawa CENTUM CS 3000 / CENTUM VP DCS |
| Input Channels | 8 to 16 channels, configuration dependent |
| Input Signal Types | 4-20 mA DC current, 0-10 VDC, +/-5 VDC differential voltage |
| A/D Conversion Resolution | 16-bit |
| Measurement Accuracy | +/-0.05% to +/-0.1% of full scale |
| Operating Voltage | 24 VDC nominal system supply |
| Isolation | Channel-to-channel and channel-to-system bus galvanic isolation |
| Redundancy Support | Supports dual-redundant controller node configurations |
| Origin | Japan |
| Weight | Approx. 0.5 kg – 0.6 kg |
| Dimensions | Approx. 260 mm x 180 mm x 60 mm |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | Supplied from system power architecture, value dependent on rack configuration |
DCS Analog Signal Processing and Isolation Features
The Yokogawa AIP121 S2 provides direct interface between field instrumentation and CENTUM control systems through isolated analog acquisition channels. The module accepts standard industrial process signals and performs digital conversion before transmission to controller processing units.
Furthermore, the module supports 4-20 mA HART loop applications when integrated with compatible field devices and system configurations. Channel-to-channel isolation reduces interference between independent measurement circuits, while galvanic separation protects the system bus from field-side electrical disturbances.
The module design also supports differential voltage measurement, allowing connection to transmitters, sensors, and process measurement devices requiring isolated analog input handling.
Frequently Asked Questions
Q: What input signals can the Yokogawa AIP121 S2 process?
A: The module processes 4-20 mA DC current signals, 0-10 VDC voltage signals, and +/-5 VDC differential voltage inputs according to the configured application.
Q: Does the AIP121 S2 support redundant system configurations?
A: The module supports dual-redundant configurations when installed within compatible Yokogawa controller node rack architectures.
Q: How does the module protect analog measurement channels from interference?
A: The AIP121 S2 uses galvanic isolation between channels and the system bus to reduce electrical coupling and signal disturbance.
Field Installation Guidelines
Install the AIP121 S2 module in the designated Yokogawa DCS rack position according to the system hardware configuration manual.
Verify that field wiring uses appropriate shielded cables for analog signal transmission. Connect cable shields according to the site grounding standard to minimize electromagnetic interference.
Separate analog signal wiring from high-current power cables and switching circuits. Confirm terminal connections, polarity, and signal ranges before system commissioning.
Check the module status indicators after installation and verify input scaling through the DCS engineering workstation before placing the control loop into operation.
