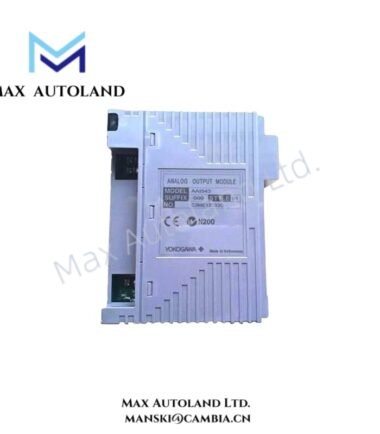

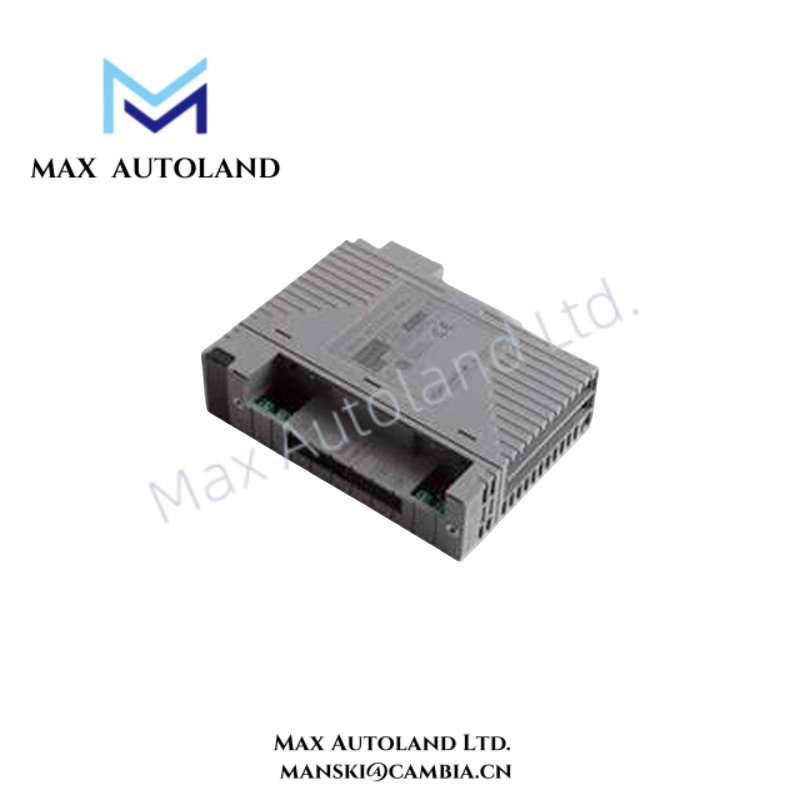

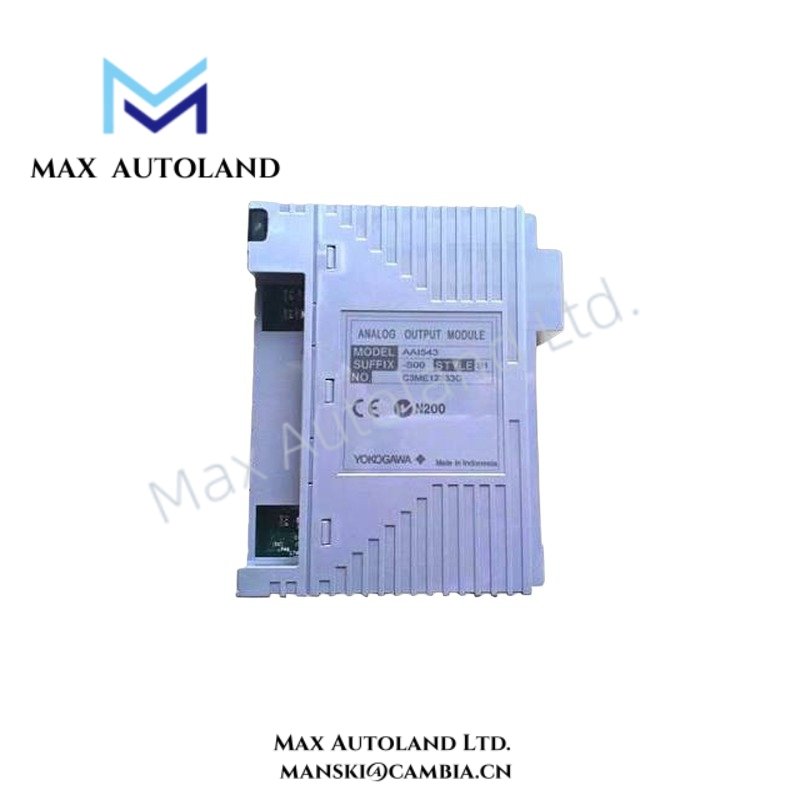

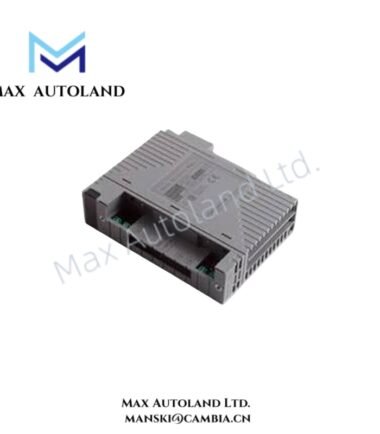

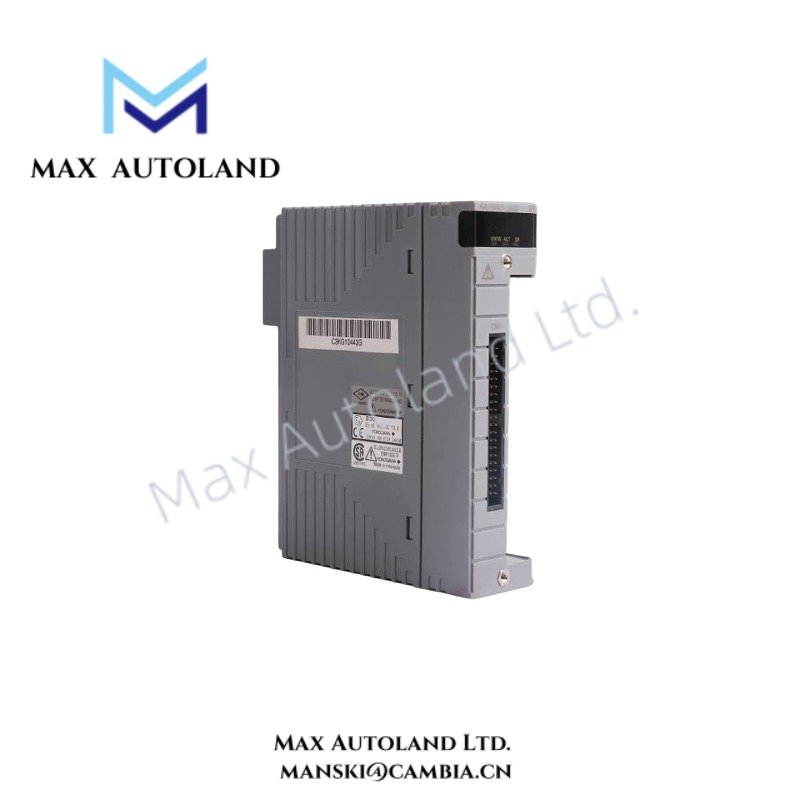

Overview
Configured for isolated 4-20 mA signal output execution in Yokogawa CENTUM VP and CENTUM CS 3000 systems, the Yokogawa AAI543-H53/K4A00 (AAI543 Analog Output Module) provides direct electrical control output through 16 isolated analog channels.
Suffix Breakdown & Model Matrix
| Model | Description |
|---|---|
| AAI543 | Analog Output Module, 4-20 mA, 16-channel, isolated |
| -S | Standard type |
| -H | With digital communication (HART protocol) |
| -5 | Standard switch-over response in redundant configuration without explosion protection |
| -6 | Fast switch-over response in redundant configuration without explosion protection |
| -E | Standard switch-over response in redundant configuration with explosion protection |
| -F | Fast switch-over response in redundant configuration with explosion protection |
| /K4A00 | KS Cable Interface Adapter for AEA4D Terminal Board connection |
| /A4S00 | Pressure Clamp Terminal Block (ATA4S-00) |
| /A4S10 | Pressure Clamp Terminal Block with surge absorber (ATA4S-10) |
| /A4D00 | Dual Pressure Clamp Terminal Block (ATA4D-00) |
| /A4D10 | Dual Pressure Clamp Terminal Block with surge absorber (ATA4D-10) |
| /CCC01 | Connector Cover for MIL Cable (ACCC01) |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H53/K4A00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Analog Output Module |
| System Compatibility | CENTUM VP, CENTUM CS 3000 |
| Output Channels | 16 isolated channels |
| Output Signal | 4-20 mA DC |
| Output Isolation | Isolated between output and system |
| Redundant Configuration | Supported |
| Switch-over Response | Standard switch-over response in redundant configuration |
| Withstanding Voltage | Between output and system: 1500 VAC for 1 minute |
| Allowable Load Resistance | 0 to 750 ohm |
| Circuit-open Detection | Less than 0.65 mA |
| Accuracy | +/-48 uA |
| Data Update Period | 10 ms |
| Ambient Temperature Drift | +/-16 uA/10 deg C |
| Maximum Current Consumption | 230 mA at 5 VDC, 540 mA at 24 VDC |
| Weight | Approx. 0.40 kg |
| External Connection | Pressure clamp terminal, MIL connector cable, dedicated cable |
| Communication Function | HART communication available |
4-20 mA HART Loop and Channel Isolation Characteristics
The AAI543-H53/K4A00 uses isolated analog output channels to transmit 4-20 mA control signals from the Yokogawa DCS output layer to field devices. In addition, the HART communication option supports digital communication over compatible current loops, allowing parameter access and device diagnostics.
Furthermore, each output channel maintains electrical isolation from the system side. This channel isolation structure reduces signal interference risks in multi-channel process control installations. The module supports redundant configurations with defined switch-over response behavior for continuous control output availability.
Frequently Asked Questions
Q: Does the AAI543-H53/K4A00 support redundant configuration?
A: Yes. The module supports dual-redundant operation with standard switch-over response according to the selected suffix configuration.
Q: What output signal does the AAI543-H53/K4A00 provide?
A: The module provides 16 isolated analog output channels with 4-20 mA DC signals.
Q: Is HART communication available on this module?
A: Yes. HART communication is available when the module configuration includes the HART-enabled option.
Field Installation Guidelines
- Install the module inside the compatible Yokogawa FCS or I/O node equipment according to the system hardware manual.
- Verify the terminal board type before connecting field wiring, especially when using KS Cable Interface Adapter configurations.
- Separate analog signal wiring from high-voltage power cables to reduce electrical noise coupling.
- Connect cable shields according to the site grounding standard and avoid multiple grounding points on signal shields.
- Confirm field device loop polarity before applying 4-20 mA output signals.
- Check redundant module installation status and verify switch-over operation during commissioning.
- Use surge protection terminal options when the installation environment requires additional transient voltage protection.
