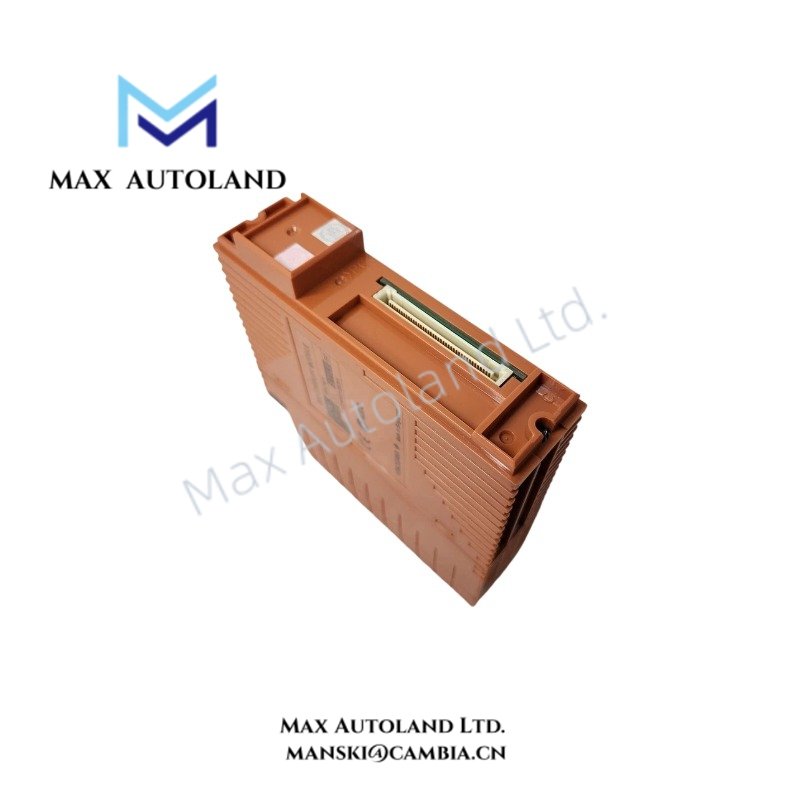

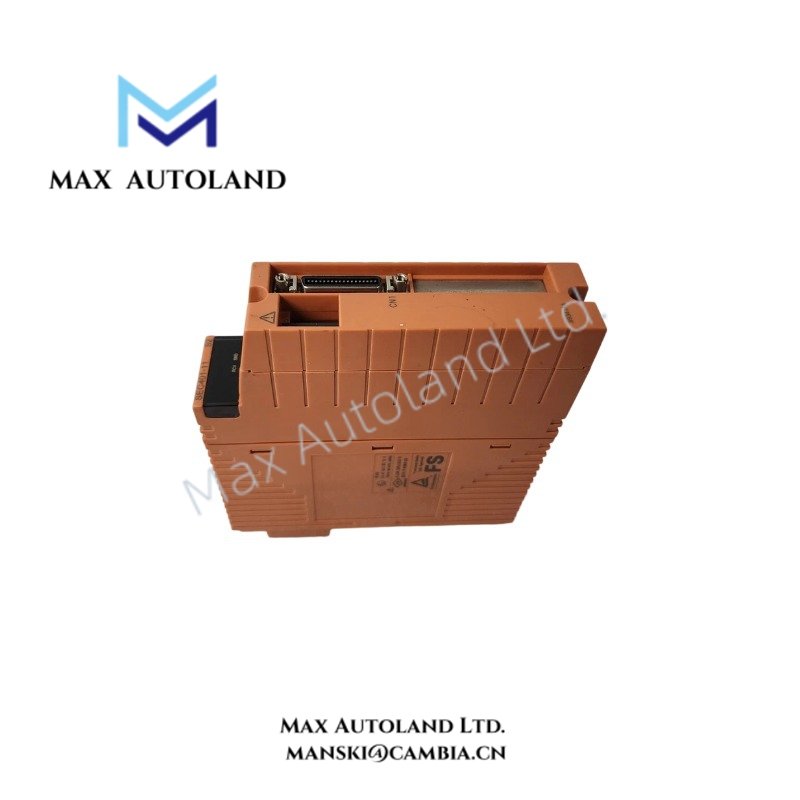

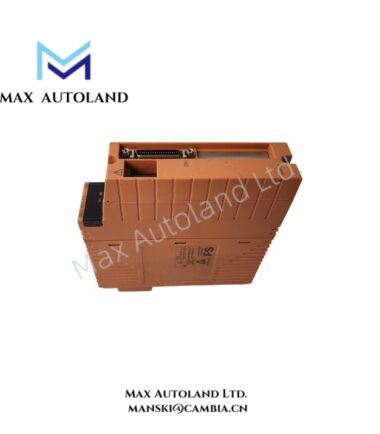

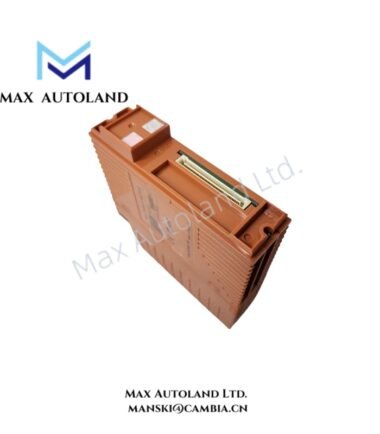

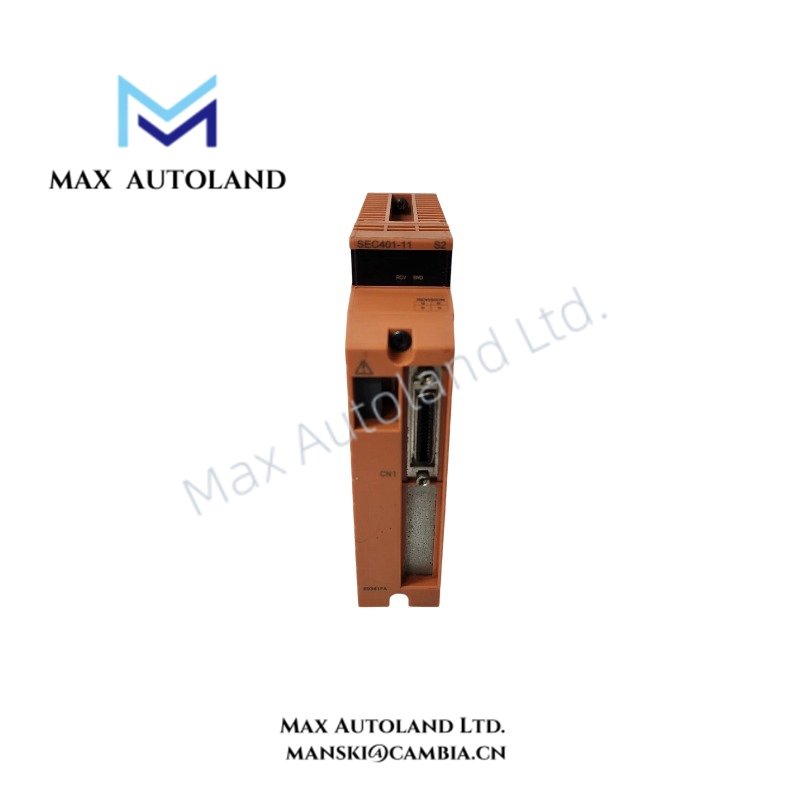

SEC401-11 Yokogawa Bus Coupler Module

Overview

The Yokogawa SEC401-11, also cataloged as the SEC401-11 Bus Coupler Module, operates as a dedicated hardware component for ESB bus master interface communication within Yokogawa industrial control system networks. It provides physical data transmission between ESB bus devices with a maximum connection capacity of 9 units, a transmission speed of 128 Mbps, and a maximum transmission distance of 10 m.

Hardware Specifications

Yokogawa ESB Bus Communication Interface

The SEC401-11 performs ESB bus master interface operations within Yokogawa control architectures. It manages electrical communication between connected ESB bus modules and maintains deterministic data exchange across the local bus structure.

Additionally, the module supports a transmission speed of 128 Mbps and connects up to 9 ESB devices under the specified network configuration. The 0.5 A current consumption value defines the module power requirement within the installed control system assembly.

For Yokogawa DCS applications, the module integrates with process control hardware that may include signal modules using industrial communication standards such as 4-20 mA HART, FOUNDATION Fieldbus, or Profibus PA through compatible system configurations. The SEC401-11 itself functions specifically as an ESB bus communication interface component.

Frequently Asked Questions

Q: What communication function does the Yokogawa SEC401-11 provide?
A: The SEC401-11 provides an ESB bus master interface function for communication between connected Yokogawa ESB bus components.

Q: How many units can the SEC401-11 connect within an ESB configuration?
A: The module supports a maximum connection capacity of 9 units according to the specified technical parameters.

Q: What are the transmission limits of the SEC401-11?
A: The module supports a transmission speed of 128 Mbps and a maximum transmission distance of 10 m.

Field Installation Guidelines

Install the SEC401-11 according to the Yokogawa system hardware configuration requirements. Verify the ESB bus connection direction and confirm that all connectors are fully seated before system power application.

Maintain proper cable routing practices to reduce electrical interference. Separate communication wiring from high-current power cables where applicable, and apply correct grounding methods for the control cabinet structure.

Check the module current consumption requirement during cabinet power planning. Confirm that the installed power supply capacity supports the complete module assembly before commissioning.
