Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

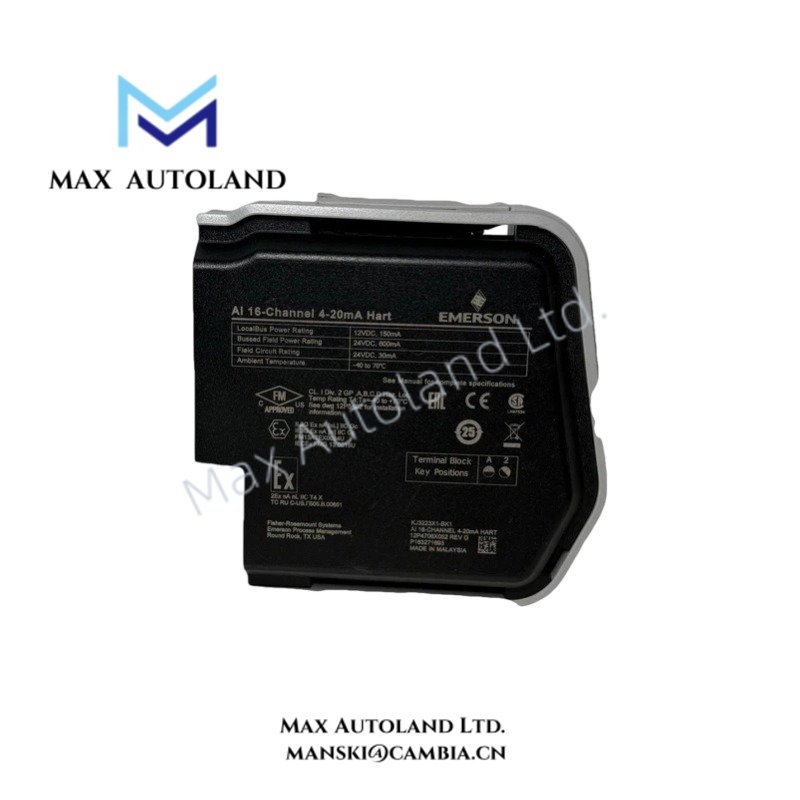

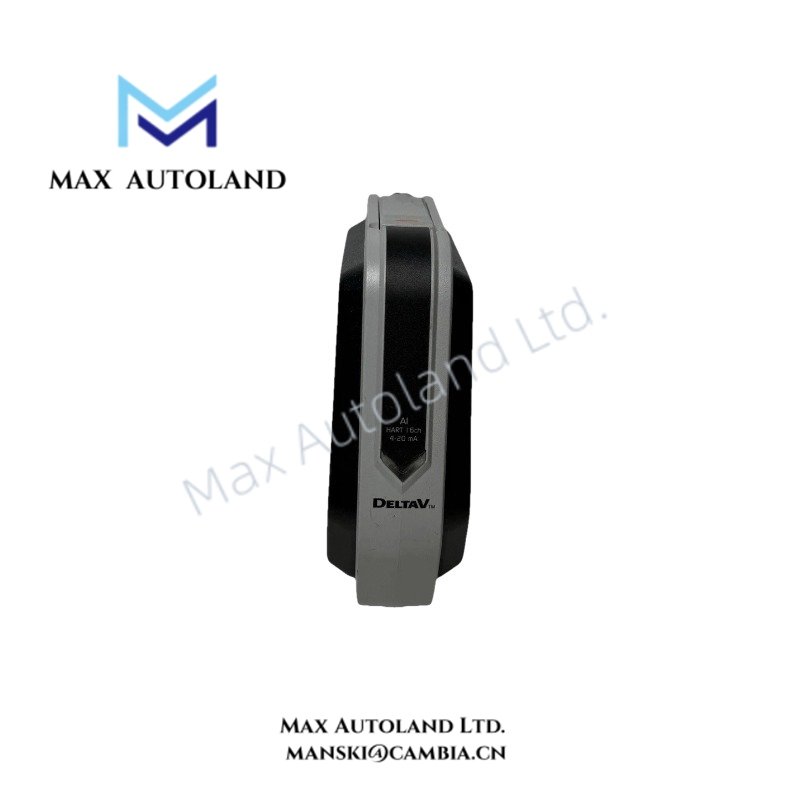

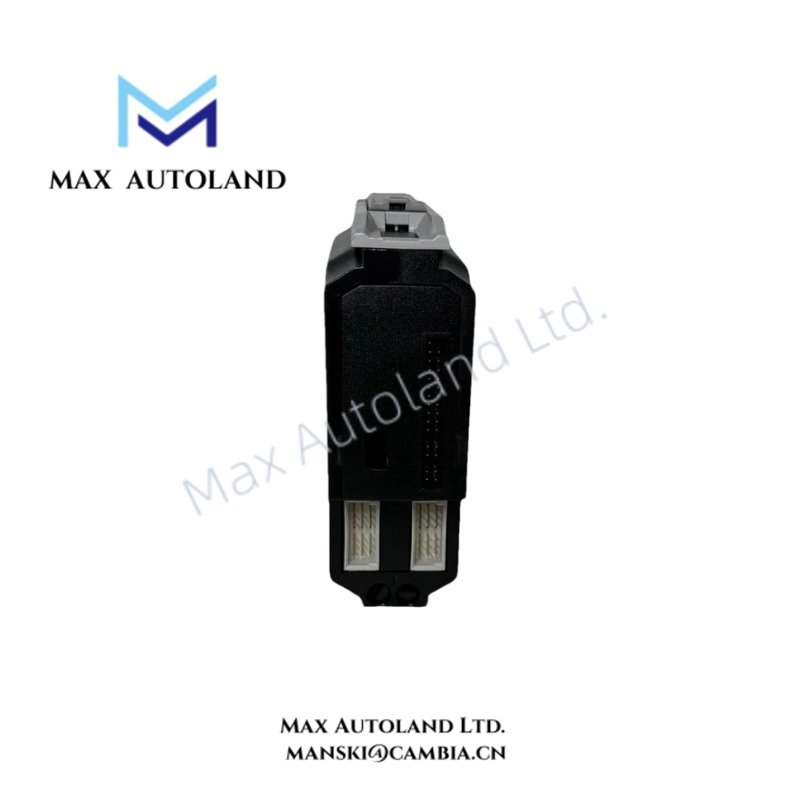

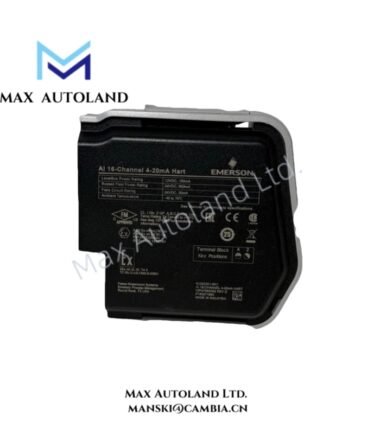

| Model | KJ3223X1-BK1 |
| Brand | Emerson DeltaV |
| Origin | Not specified |
| Product Type | Analog Input Card, 16-channel 4-20 mA HART |
| System Compatibility | Emerson DeltaV S-Series DCS |
| Signal Type | 4-20 mA current input with HART protocol |
| Number of Channels | 16 channels |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | Local Bus: 12 VDC at 150 mA; Bussed Field Power: 24 VDC at 600 mA |
| Field Circuit Power | 24 VDC at 30 mA per channel |
| Input Impedance | 250 ohms nominal |
| Resolution | 16-bit |
| Accuracy | +/- 0.1% of span |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Shock Resistance | 10g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz |
4-20 mA HART Loop Processing and Channel Isolation
The KJ3223X1-BK1 processes analog field signals through 16 independent input channels. Therefore, the module converts continuous current measurements into digital values for DeltaV controller execution.
The module supports 4-20 mA HART loop protocol communication, enabling access to primary process variables and device diagnostic information from compatible smart field instruments. Additionally, channel-to-channel signal management supports stable measurement operation in process instrumentation environments.
Frequently Asked Questions
Q: Does the KJ3223X1-BK1 support HART communication on all input channels?
A: Yes. The module provides 16 analog input channels configured for 4-20 mA current loops with HART communication capability.
Q: What power requirements must be considered during installation?
A: The module requires 12 VDC local bus power at 150 mA and 24 VDC bussed field power at 600 mA. Field circuit loading must also consider 24 VDC at 30 mA per channel.
Q: What environmental conditions are specified for operation?
A: The module operates from -40 deg C to +70 deg C with 5% to 95% RH non-condensing conditions.
Field Installation Guidelines
Install the KJ3223X1-BK1 according to Emerson DeltaV S-Series hardware installation procedures. Verify the module seating position on the carrier and confirm correct backplane connection before applying power.
Use shielded instrumentation wiring for analog field connections when required by the installation environment. Connect cable shields according to the plant grounding standard to reduce electrical interference.
Separate low-level analog signal cables from high-current power conductors and switching circuits. Confirm loop polarity, field power availability, and HART communication wiring before commissioning.
Check module status indicators after installation and verify channel signal values through the DeltaV engineering workstation before placing the control loop into service.
