Overview

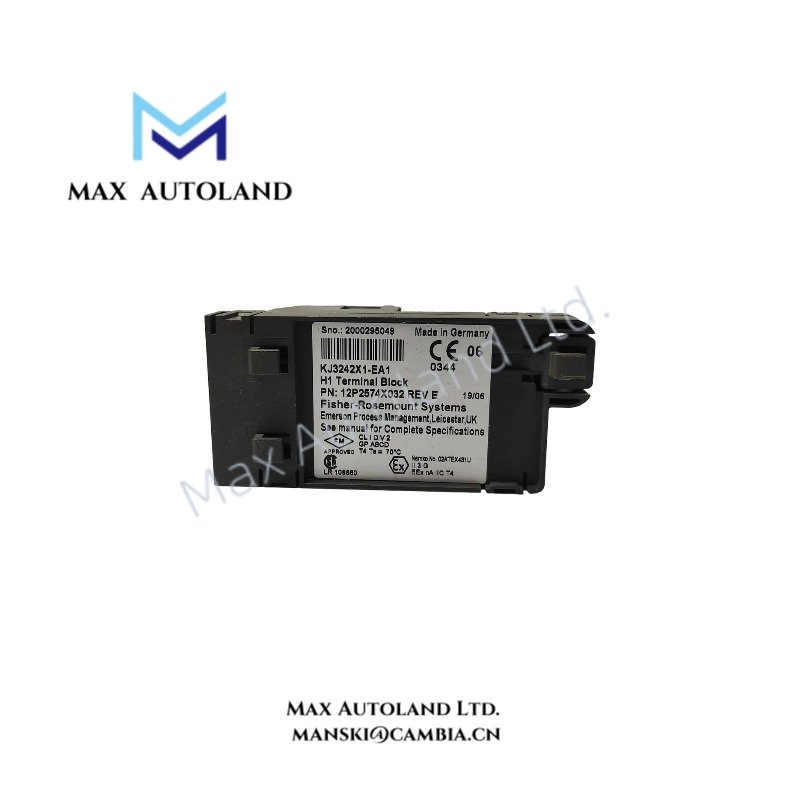

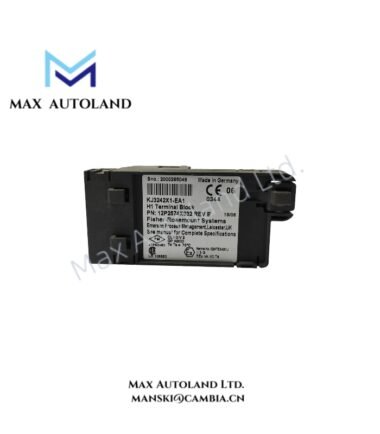

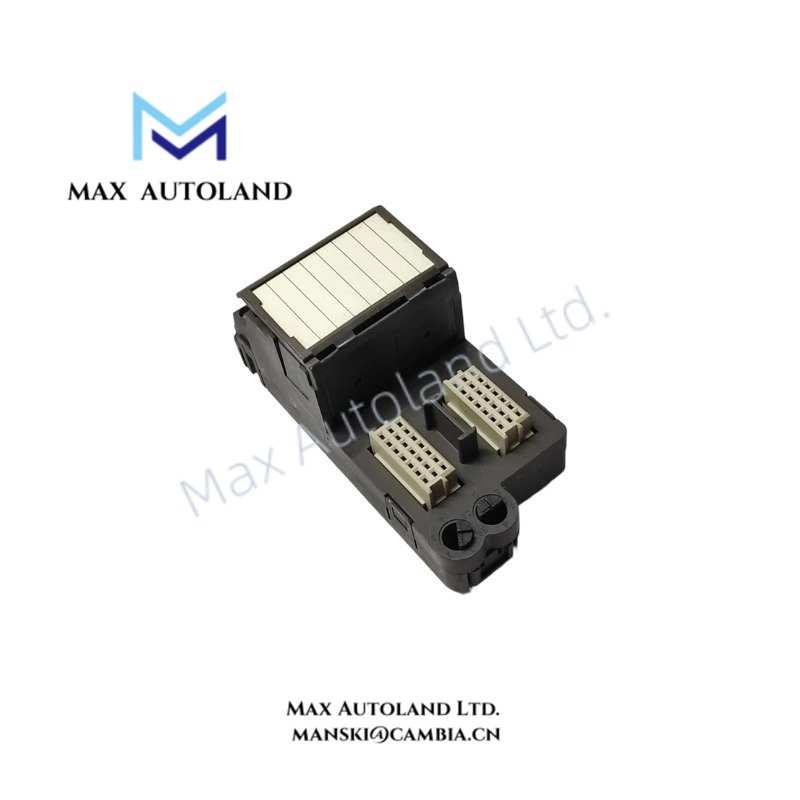

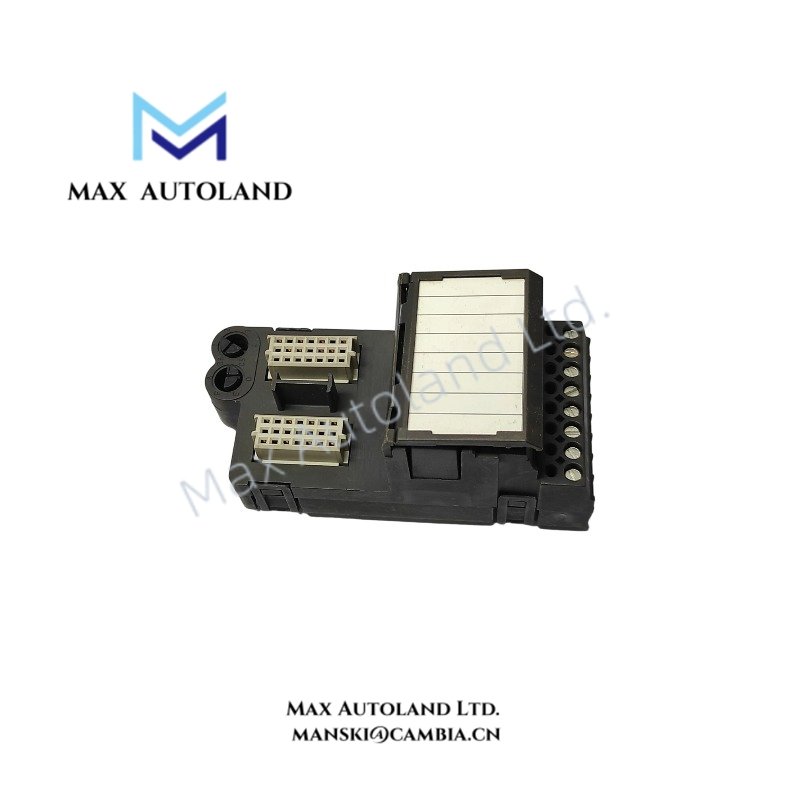

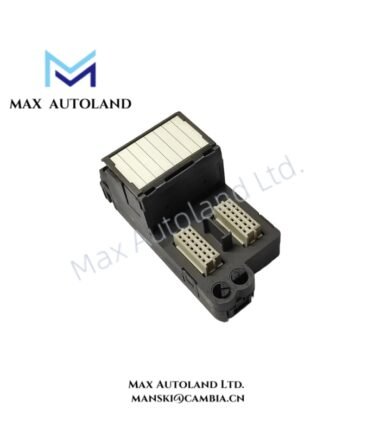

The Emerson KJ3242X1-EA1, also cataloged as the KJ3242X1-EA1 H1 Terminal Block, operates as a dedicated hardware component for H1 fieldbus signal termination and power interface connection within the DeltaV Electronic Marshalling CHARM I/O Subsystem.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3242X1-EA1 |
| Brand | Emerson |
| Product Type | H1 Terminal Blocks |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power rating: 35 VDC @ 500 mA |
| System Compatibility | DeltaV Electronic Marshalling CHARM I/O Subsystem |
| Installation Area | Hazardous Atmosphere, Zone 2 applications |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5 to 95% non-condensing |
| Service Requirement | No user-serviceable parts; calibration not required |
H1 Fieldbus Interface and Environmental Characteristics
The Emerson KJ3242X1-EA1 provides the physical termination interface for H1 fieldbus connections in DeltaV CHARM-based architectures. Moreover, the terminal block supports field wiring organization and electrical connection management for H1 communication circuits.
The unit operates with a 35 VDC input power rating and 500 mA maximum input current specification. In addition, the hardware maintains operation across a -40 deg C to +70 deg C temperature range and supports industrial vibration and shock conditions.
The KJ3242X1-EA1 installation design follows hazardous area requirements defined for DeltaV Electronic Marshalling systems. Therefore, users must follow the dedicated Zone 2 installation procedures specified for CHARM I/O Subsystems.
The Emerson process control hardware family applies field communication practices such as HART loop protocol integration and FOUNDATION Fieldbus connectivity. However, this terminal block functions as a physical H1 interface component rather than an active signal processing module.
Frequently Asked Questions
Q: Can the KJ3242X1-EA1 be removed or inserted while system power remains active?
A: No. The unit cannot be removed or inserted with system power energized. Maintenance personnel must disconnect power before replacement or inspection.
Q: Does the KJ3242X1-EA1 require calibration after installation?
A: No. The terminal block contains no adjustable parameters and does not require calibration.
Q: Can users disassemble the KJ3242X1-EA1 for internal maintenance?
A: No. The unit contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
Install the KJ3242X1-EA1 according to DeltaV Electronic Marshalling CHARM I/O Subsystem hazardous area installation procedures.
Before installation, verify the product label information, including serial number, manufacturing location, and production date. Furthermore, confirm that the mounting location meets the specified environmental limits.
Route field wiring according to industrial control cabinet practices. Keep communication wiring separated from high-voltage power cables where required, and apply appropriate shielding and grounding methods based on the system installation standard.
Remove or insert the terminal block only after confirming that system power is de-energized. Do not modify internal components because the unit does not support field repair or adjustment.
