Overview
Specification
| Parameter | Specification |
|---|---|

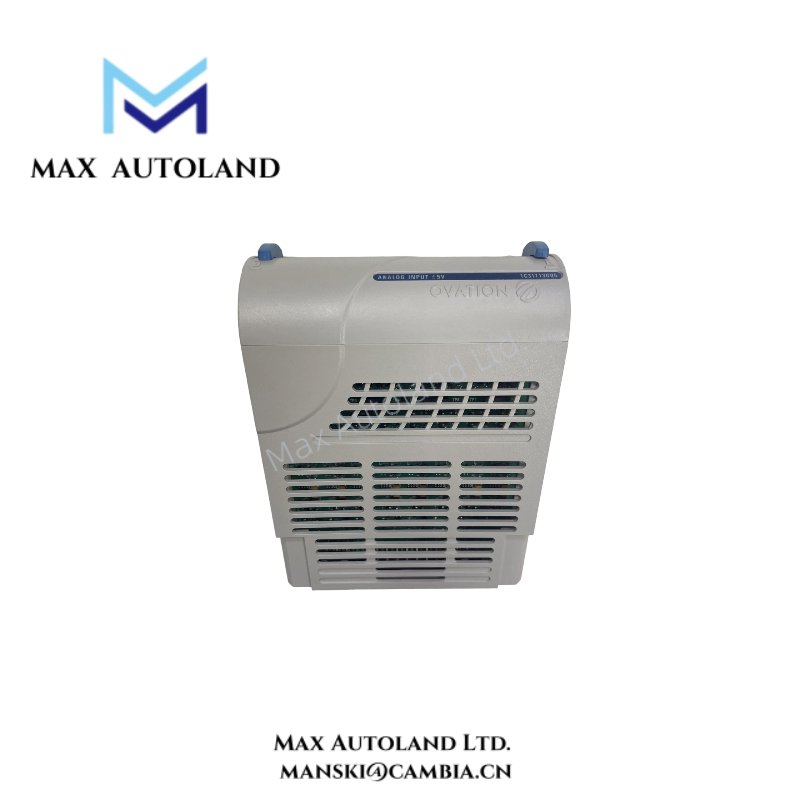

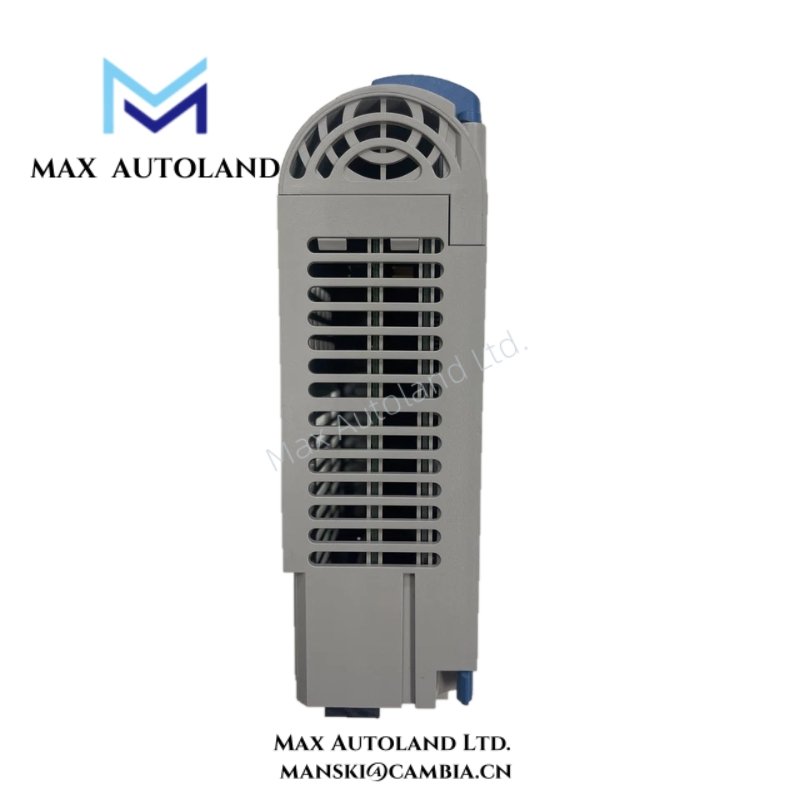

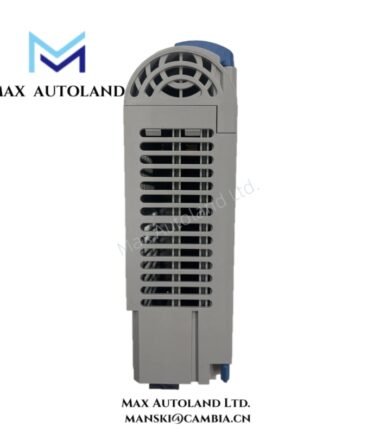

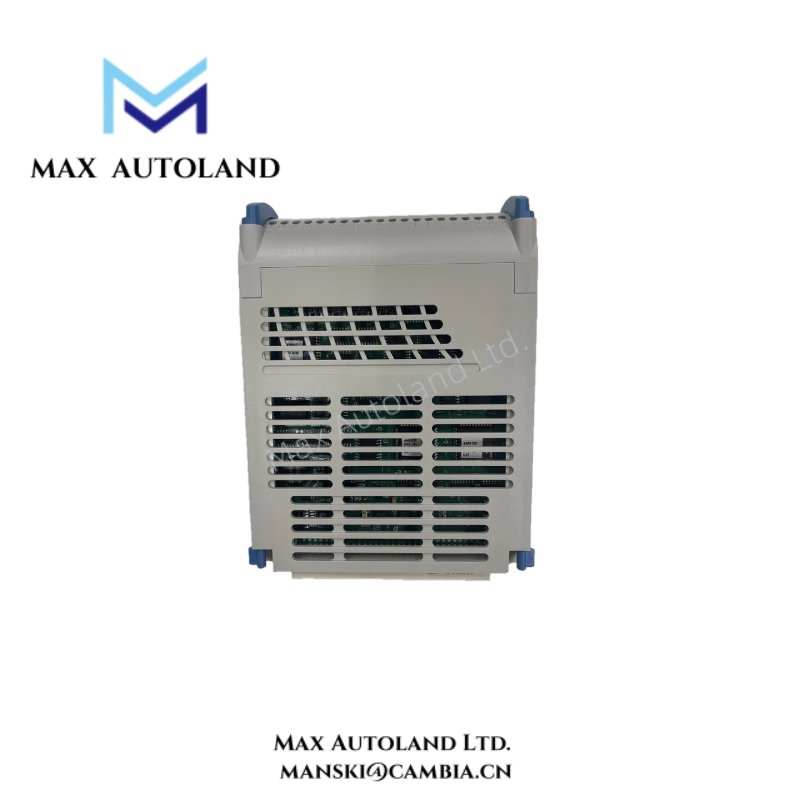

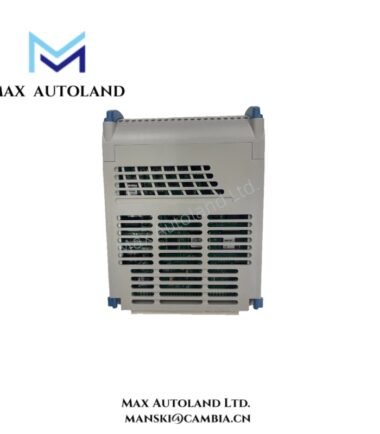

| Model / Part Number | 1C31129G05 |
| Module Type | Analog Output Module for Ovation DCS |
| Number of Channels | 8 |
| Output Type | Voltage (±10 V or ±5 V) |
| Resolution | 16-bit |
| Accuracy | ±0.05% full scale |
| Update Rate | Up to 500 Hz |
| Output Filtering | Software-configurable |
| LED Indicators | One per channel for status and diagnostics |
| Power Supply | 24 V DC nominal (per Ovation I/O architecture) |
| Dimensions | ~130 mm × 100 mm × 70 mm |
| Weight | ~0.5 kg |
| Operating Temperature | –40°C to +85°C (typical industrial range) |
| Protection / Rating | IP20 (typical for I/O modules) |
| Integration | Compatible with Ovation I/O chassis for easy installation |
FAQ
A: It offers 8 analog output channels, allowing control of multiple field devices from a single module.Q2: What output voltages are supported?
A: The module supports ±10 V and ±5 V, and you can configure the range via software.
Q3: How precise are the analog signals?
A: It uses a 16-bit digital-to-analog converter, giving very fine resolution and precise control.
Q4: Can I smooth the output signals?
A: Yes, the module supports software‑configurable filters to reduce noise or transient effects.
Q5: How fast can it update its outputs?
A: The update rate is up to 500 Hz, so it can respond quickly to changing set points or process demands.
