Overview
Specification
| Specification | Details |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3202X1-BA1 |

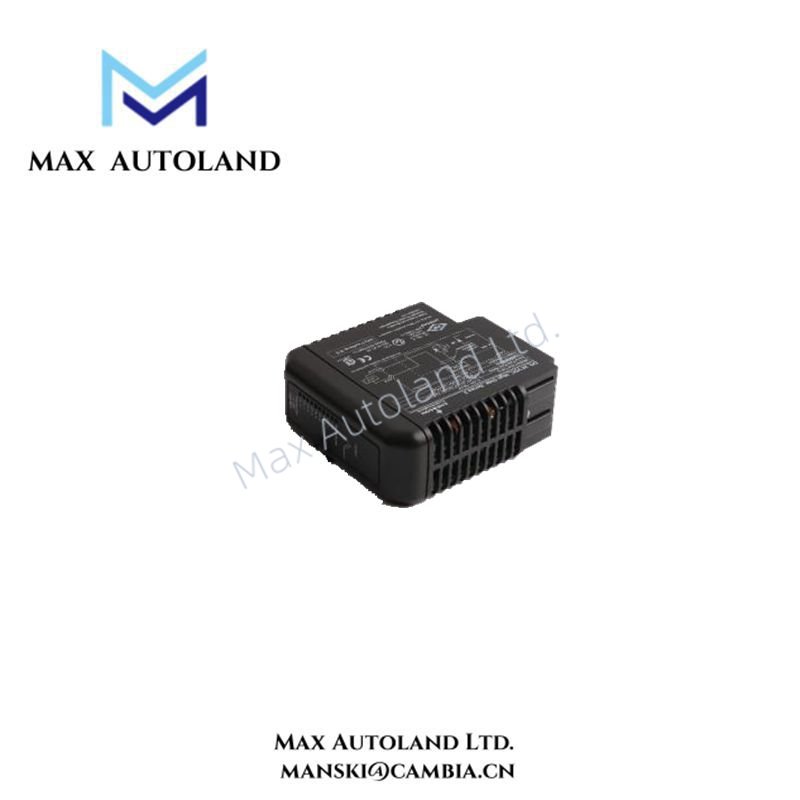

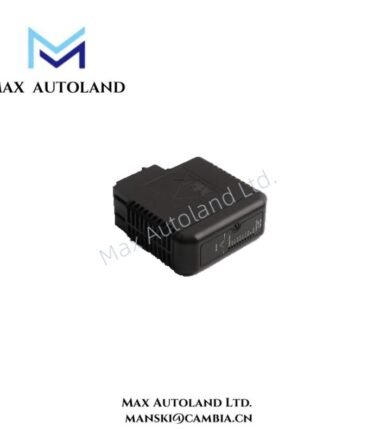

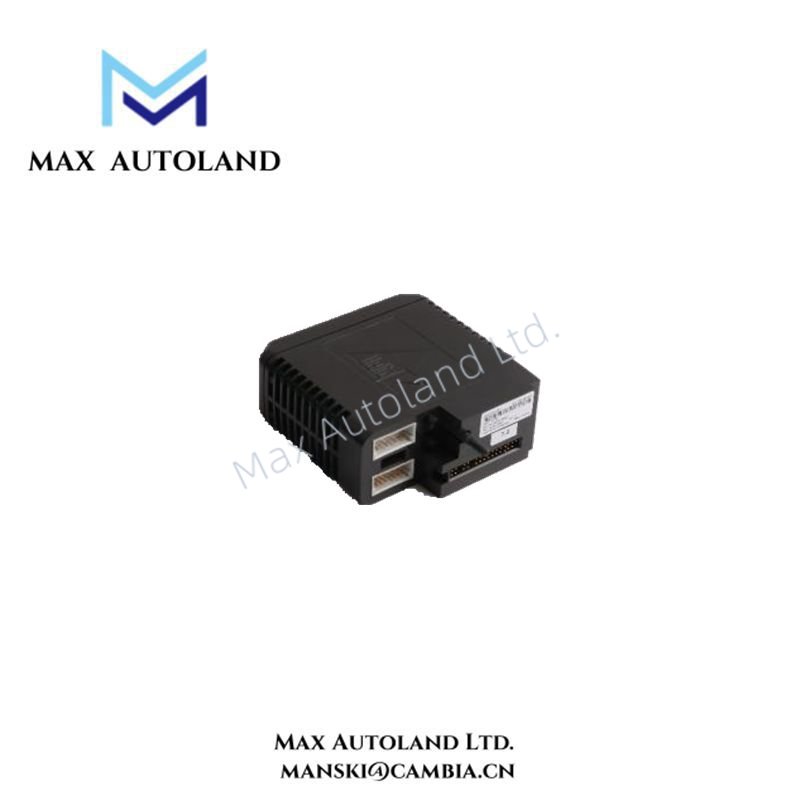

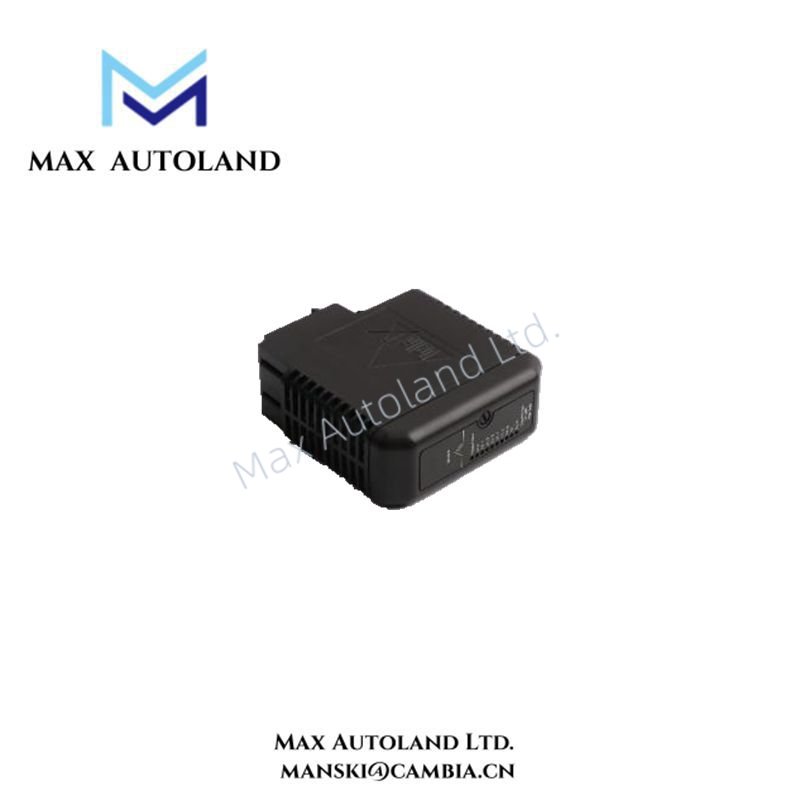

| Module Type | 8-Channel 24 VDC High-Side Output Module |
| Channels | 8 high-side digital outputs |
| Output Voltage | 24 VDC |
| Output Current | [Insert rated current if known] |
| Interface | DeltaV system bus |
| Dimensions | Standard DeltaV rack form factor |
| Weight | [Insert weight if known] |
| Operating Temperature | Standard industrial range |
| Mounting | DIN-rail / rack mount |
| Diagnostics | Supports fast system diagnostics |
FAQ
A: Yes, this module is fully new, original, and sourced directly from Emerson.Q: How fast can you ship?
A: We usually ship within 3 days to 2 weeks depending on order size. Common carriers include DHL.
Q: What if the module has a quality issue?
A: We support returns within 30 days if there is a verified quality problem.
Q: Can this module integrate with all DeltaV systems?
A: Yes, KJ3202X1-BA1 is compatible with standard DeltaV controllers and racks.
Q: What are the main technical features?
A: It features 8 high-side outputs, 24 VDC voltage, compact design, and integrated diagnostics for secure and reliable operation.
