Overview

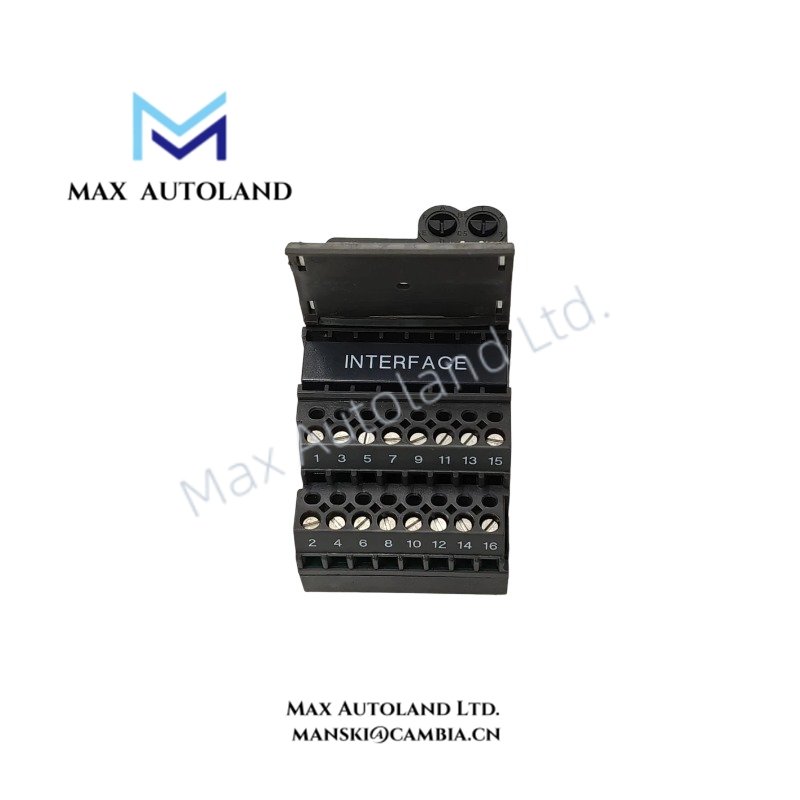

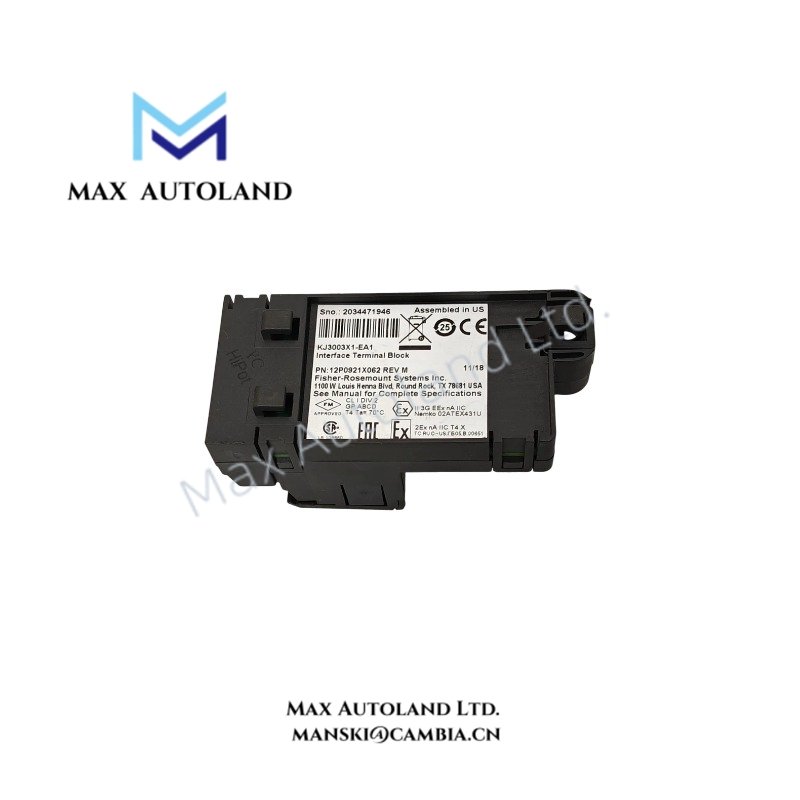

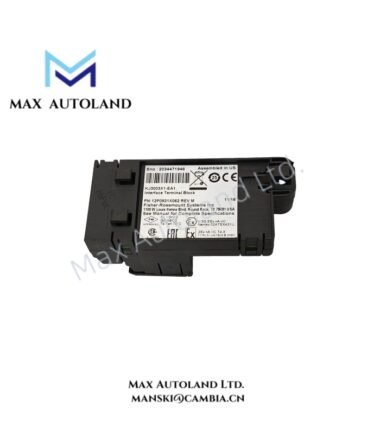

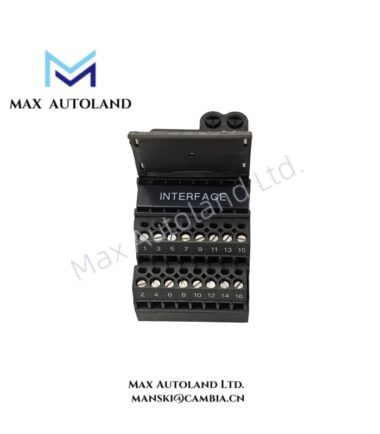

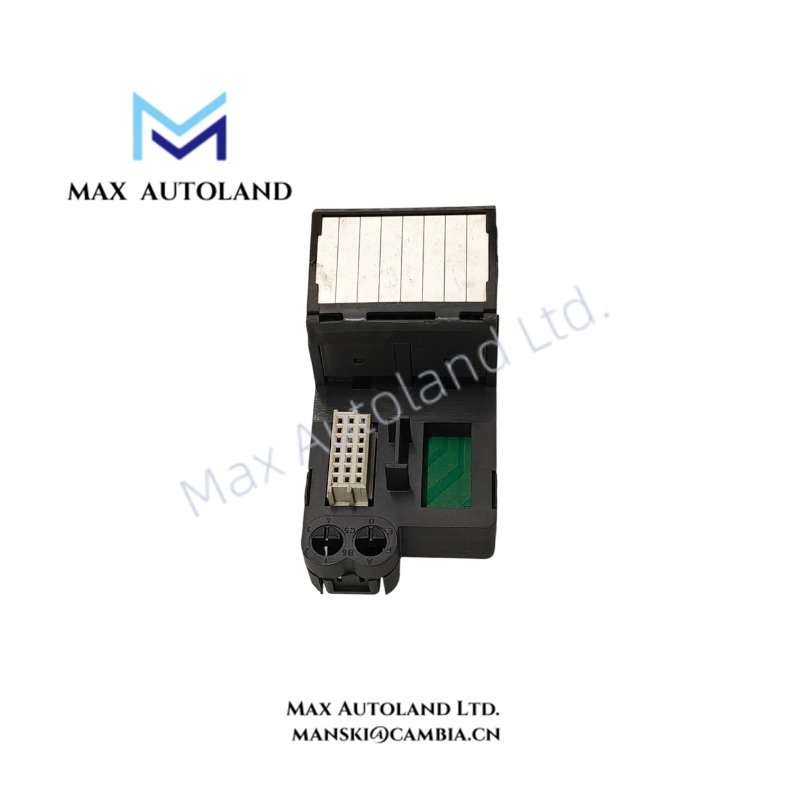

The Emerson KJ3003X1-EA1, also cataloged as the KJ3003X1-EA1 Serial Interface Terminal Block, operates as a dedicated hardware component for serial signal interface connection within the DeltaV CHARMs I/O Subsystem. This terminal block provides physical signal termination and interface support for CHARM-based electronic marshalling configurations.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3003X1-EA1 |
| Brand | Emerson |
| Product Type | Serial Interface Terminal Block |
| System Compatibility | DeltaV CHARMs I/O Subsystem |
| Origin | Germany |
| Weight | 0.1 kg |
| Dimensions | 5.1 cm x 7.6 cm x 5.1 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input power rating: 35 VDC at 1 A |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Hazardous Area Rating | Refer to product label and installation documentation for area certification details |
DeltaV CHARMs Interface and Signal Termination Characteristics
The KJ3003X1-EA1 supports physical termination between serial interface wiring and the DeltaV CHARMs electronic marshalling architecture. Moreover, the terminal block maintains defined electrical connections for field wiring installation and module interface operation.
Emerson DeltaV hardware platforms commonly integrate channel-to-channel isolation techniques within compatible I/O architectures. Therefore, field wiring practices must maintain proper separation, grounding, and shielding methods to preserve signal integrity.
The terminal block design supports installation in hazardous atmosphere applications when users follow the specified DeltaV Zone 2 installation instructions. In addition, the unit requires installation procedures defined by Emerson documentation to maintain compliance with operating environment requirements.
Frequently Asked Questions
Q: Can the Emerson KJ3003X1-EA1 be removed or inserted while system power remains active?
A: No. This unit cannot be removed or inserted with system power energized. Users must disconnect power before replacement or maintenance operations.
Q: Does the KJ3003X1-EA1 require field calibration?
A: No. The terminal block contains no calibration adjustment functions and does not require calibration.
Q: Can users repair internal components of the KJ3003X1-EA1?
A: No. The unit contains no user-serviceable parts and should not be disassembled.
Field Installation Guidelines
- Install the KJ3003X1-EA1 according to Emerson DeltaV CHARMs I/O Subsystem installation documentation.
- Verify the product label for serial number, manufacturing location, and manufacturing date before installation.
- Disconnect system power before removing or inserting the terminal block.
- Route field wiring according to industrial control cabinet wiring practices and maintain proper separation between signal and power conductors.
- Connect cable shields and grounding points according to the applicable DeltaV installation requirements.
- Avoid installation conditions outside the specified temperature, humidity, shock, vibration, and airborne contaminant limits.
- Confirm hazardous area installation requirements before energizing the system.
Reviews
There are no reviews yet.
