Overview

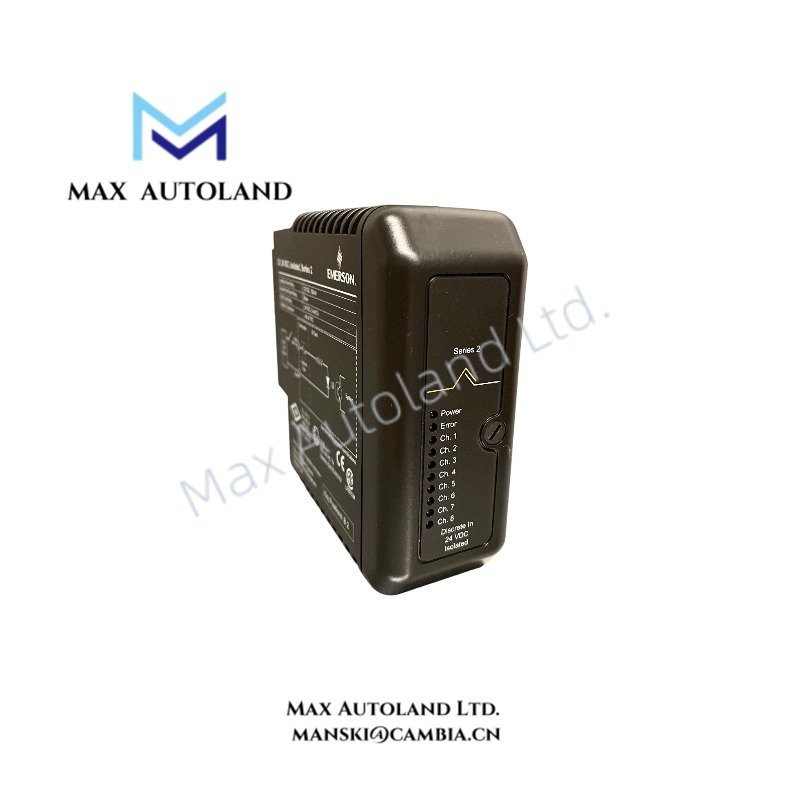

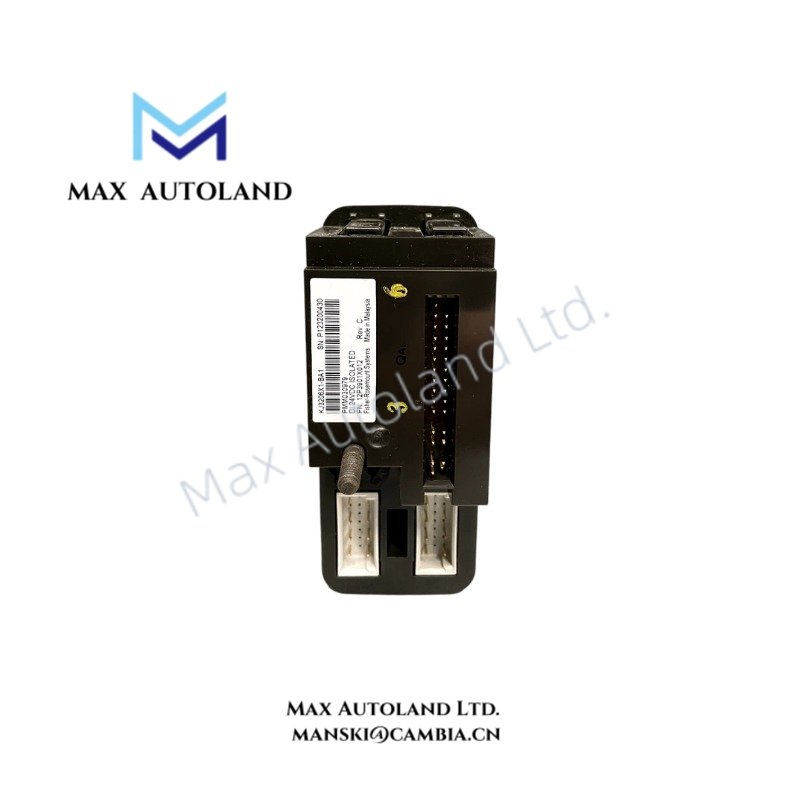

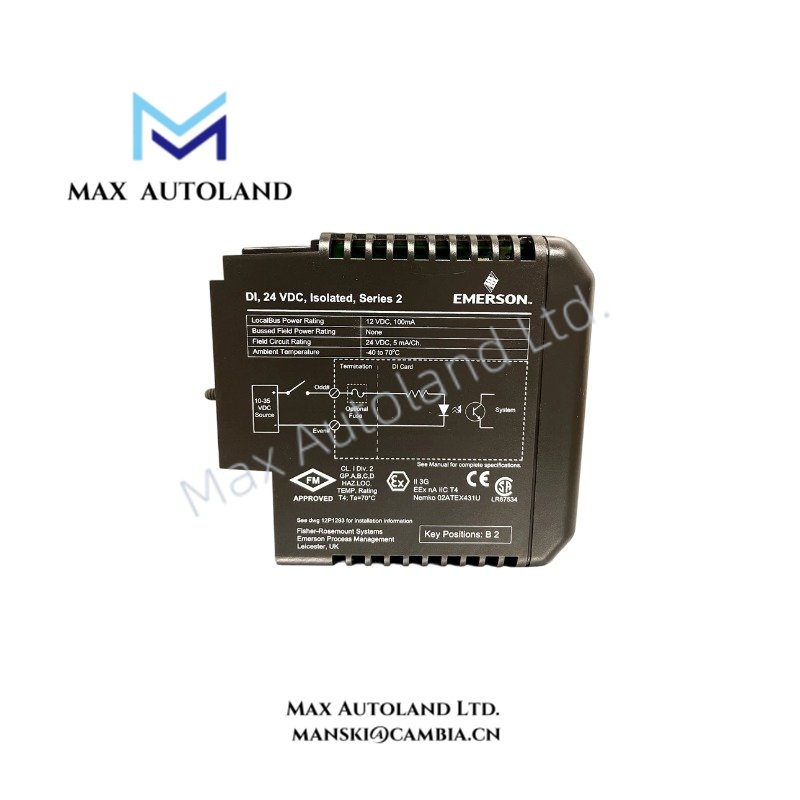

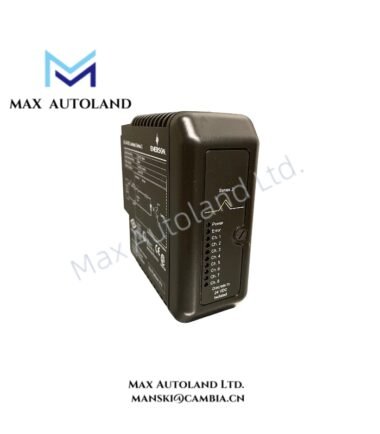

The Emerson KJ3206X1-BA1, also cataloged as the KJ3206X1-BA1 Digital Input Module, operates as a dedicated hardware component for isolated 24 VDC discrete signal acquisition within the DeltaV M-Series control system. The module provides eight isolated input channels and interfaces field circuits through a keyed terminal block connection.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3206X1-BA1 |
| Brand | Emerson |
| Product Type | Digital Input Modules |
| Channel Count | 8 isolated digital input channels |
| Input Voltage | 24 VDC |
| Local Bus Power | 12 VDC at 100 mA |
| Field Circuit Power | 24 VDC at 5 mA per channel |
| Hazardous Area Rating | II 3G Ex nA IIC Gc |
| Certification | FM12ATEX0090U, IECEx FMG 12.0035U |
| Terminal Block Key Position | B2 |
| Protection Rating | IP 20 |
| Operating Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5 to 95% non-condensing |
| Shock Resistance | 10 g half sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Power Consumption | Local bus power: 12 VDC at 100 mA |
Channel Isolation and DeltaV Field Signal Processing
The KJ3206X1-BA1 provides eight isolated 24 VDC digital input channels for discrete field signal monitoring. Moreover, each channel receives field circuit power at 24 VDC with a 5 mA current requirement, allowing direct connection to compatible field devices.
The module uses channel-to-channel isolation techniques to separate field input circuits from internal control electronics. Therefore, it reduces electrical interaction between independent discrete signals during operation. The rotary keying system prevents incorrect terminal block and I/O card combinations after installation.
Frequently Asked Questions
Q: Can the KJ3206X1-BA1 be removed or inserted while system power is energized?
A: The module cannot be removed or inserted with energized system power unless the installation area is confirmed as non-hazardous. Only one unit may be removed or inserted at a time.
Q: Does the KJ3206X1-BA1 require calibration during operation?
A: No calibration is required. The module contains no user-serviceable parts and should not be disassembled.
Q: What terminal block compatibility method does this module use?
A: The module uses a rotary keying system. The terminal block keys must match the assigned I/O card configuration before operation.
Field Installation Guidelines
Install the KJ3206X1-BA1 according to DeltaV M-Series hardware installation procedures and hazardous area requirements. Before installation or removal, verify that field circuits and fused terminal blocks are de-energized in hazardous environments.
Maintain correct terminal block key alignment to prevent incompatible module connections. Furthermore, route field wiring according to industrial control cabinet practices, including proper separation between signal wiring and high-voltage conductors.
Verify enclosure grounding, cable shielding practices, and environmental protection requirements before commissioning. The installation location must maintain the specified operating temperature, humidity range, vibration limits, and airborne contaminant classification.
