Overview

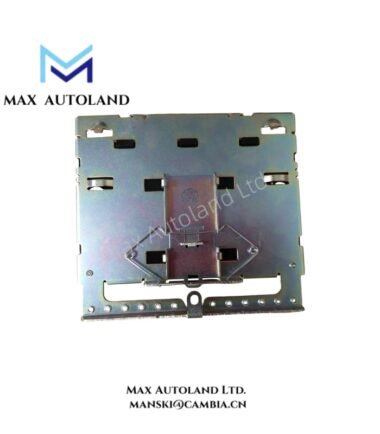

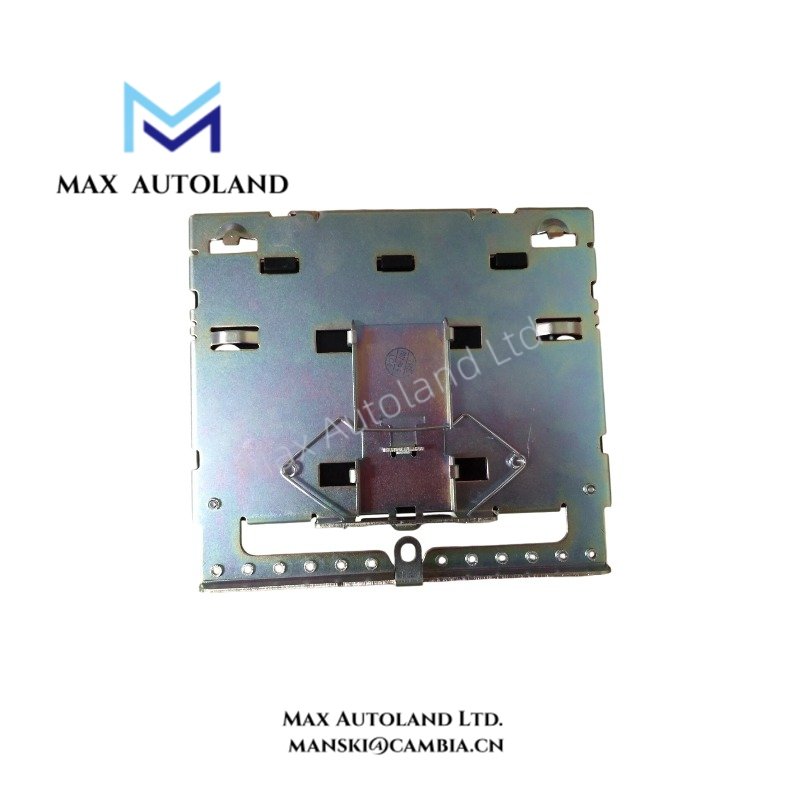

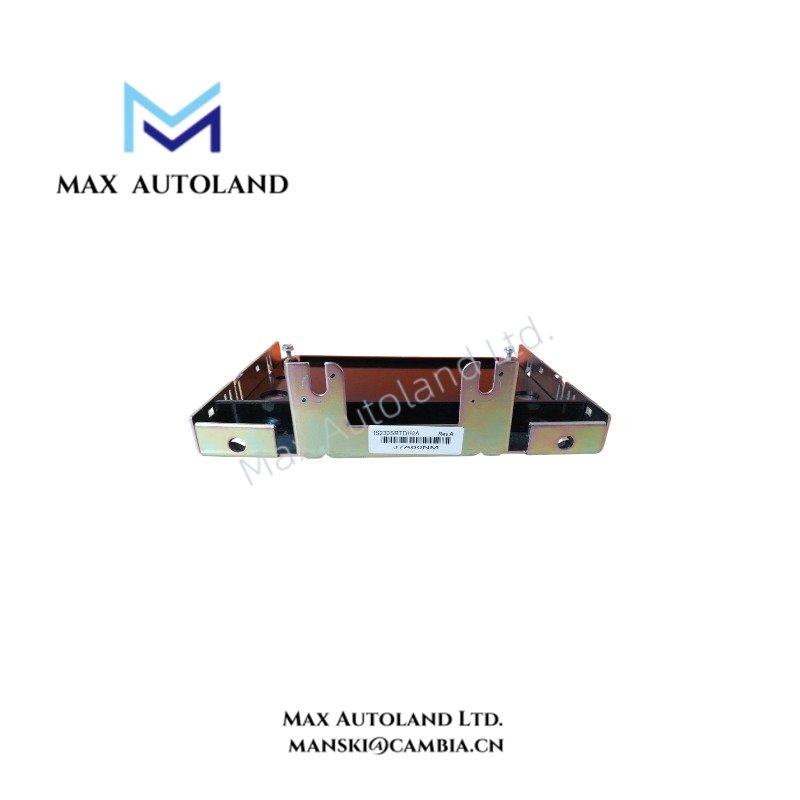

The GE IS230SRTDH2A, also identified by the base model IS230SRTDH2A, is an RTD terminal board for the GE Mark VIe turbine control system. It provides field termination for eight resistance temperature detector (RTD) inputs and connects to a PRTD or VRTD I/O processor. The board supports DIN-rail or flat mounting configurations and uses high-density Euroblock terminal connectors for field wiring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS230SRTDH2A |
| Brand | General Electric (GE) |
| Series | Mark VIe |
| Product Type | RTD Terminal Board |
| Primary Function | RTD signal termination |
| RTD Input Channels | 8 |
| Compatible I/O Processor | PRTD or VRTD |
| Mounting | DIN rail or flat mounting |
| Terminal Type | High-density Euroblock terminal blocks |
RTD Signal Termination and I/O Interface
The IS230SRTDH2A terminates field RTD wiring before the temperature signals reach the associated I/O processor. Its eight input channels support the connection of multiple temperature measurement points within the turbine control system.
The Euroblock terminals provide individual field wiring connections. Therefore, installers should verify terminal assignments against the applicable GE wiring documentation before connecting RTD sensors.
The board connects to a PRTD or VRTD processor. The exact sensor resistance ranges, wiring configurations, and supported RTD types must be confirmed from the relevant system documentation.
Frequently Asked Questions
Q: How many RTD inputs does the GE IS230SRTDH2A support?
A: The board provides eight RTD input channels for connection to the associated PRTD or VRTD I/O processor.
Q: What mounting options does the IS230SRTDH2A support?
A: The supplied description identifies DIN-rail and flat mounting configurations. Confirm the mounting arrangement and mechanical clearances for the installed assembly before installation.
Q: Can the IS230SRTDH2A connect directly to a turbine controller?
A: The board connects to a PRTD or VRTD I/O processor. Verify the processor compatibility, terminal assignments, and interconnection requirements before commissioning.
Field Installation Guidelines
- Verify the complete board model and hardware revision against the system drawings.
- Isolate the relevant equipment and follow site electrical safety procedures before wiring.
- Confirm RTD sensor type, channel assignments, and wiring configuration using the applicable GE documentation.
- Route RTD signal cables separately from high-current conductors and switching circuits where practical.
- Apply cable shielding and grounding according to the system grounding plan to reduce electrical interference.
- Inspect Euroblock terminals for secure conductor termination and correct channel identification.
- Verify field wiring continuity and processor compatibility before restoring operation.
