Overview

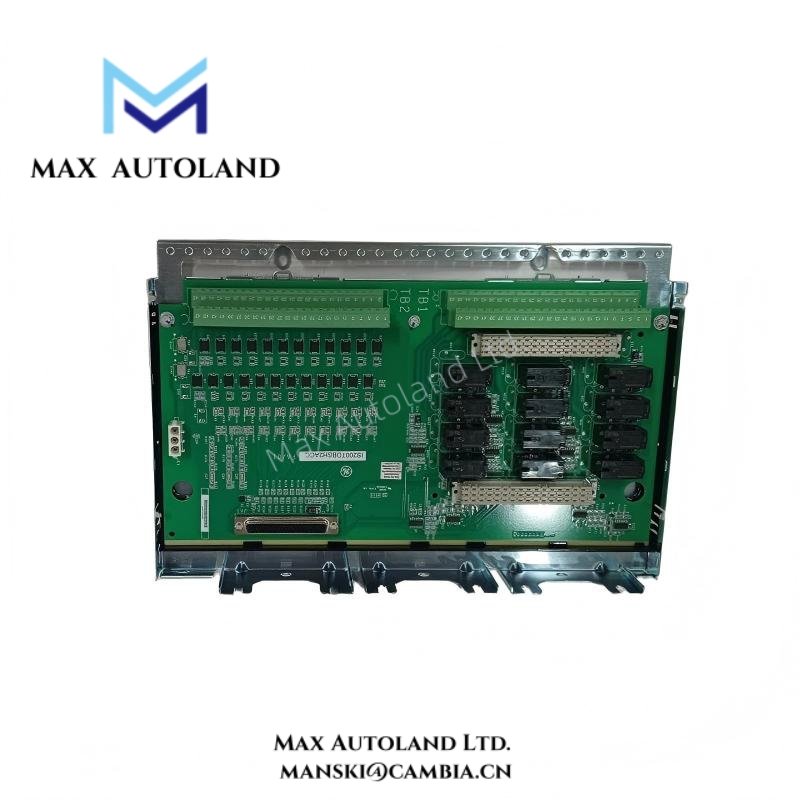

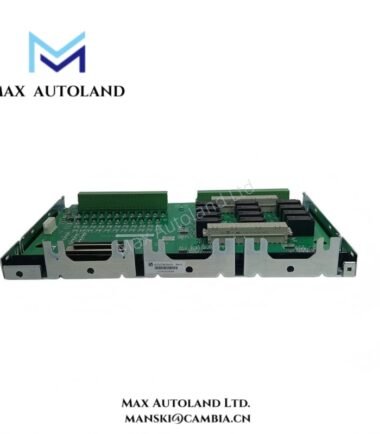

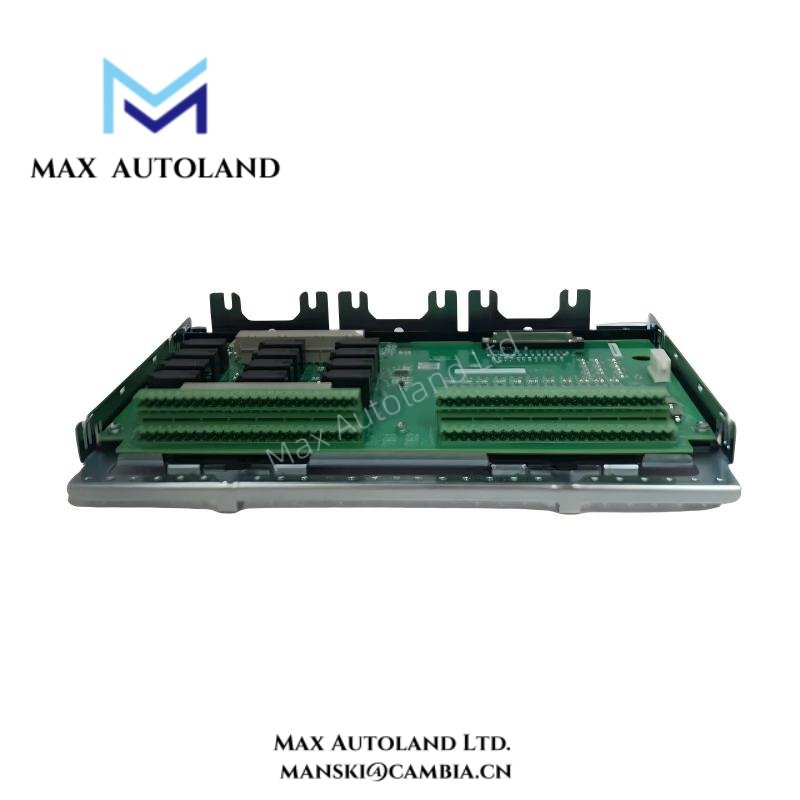

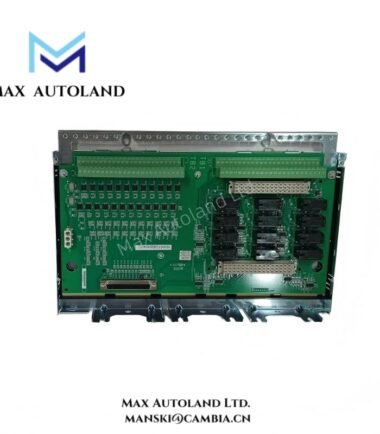

The IS200TDBSH2ACC terminal board manages contact inputs and relay outputs for GE Mark VI turbine control systems.
General Electric designed IS200TDBSH2ACC to provide reliable interface between control modules and field devices.
Engineers install IS200TDBSH2ACC when automation systems require accurate signal routing from digital and analog contacts.
Furthermore the terminal board integrates multiple protective circuits which ensure long-term reliability and stable relay operations.
Consequently the IS200TDBSH2ACC supports high-density I/O management while maintaining safe operation across industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200TDBSH2ACC |
| Product Type | Contact Input / Relay Output Terminal Board |
| Product Series | GE Mark VI Turbine Control System |
| Input Channels | Up to 48 contact inputs |
| Output Channels | Up to 24 relay outputs |
| Relay Contact Rating | 5 A @ 250 V AC / 30 V DC |
| Signal Type | Dry contacts and low-voltage digital inputs |
| Protection Features | Short-circuit, overcurrent, and voltage spike protection |
| LED Indicators | One per input/output channel |
| Backplane Interface | 48‑pin connector for Mark VI system integration |
| Auxiliary Terminals | Screw terminals for external wiring |
| Power Supply | Supplied via backplane bus |
| Circuit Components | Relays, resistors, fuses, transistors |
| Mounting Method | PCB with factory-drilled rack mounting holes |
| Dimensions | Approx. 135 mm × 35 mm × 120 mm |
| Weight | Approx. 0.4 kg |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | Up to 95% non-condensing |
| Typical Applications | Turbine field device interface, relay control, I/O signal distribution |
FAQ
Q1: Is the IS200TDBSH2ACC terminal board new and original?
A1: Yes. Every IS200TDBSH2ACC unit we supply is 100% brand-new original GE equipment.
Q2: Do you have the IS200TDBSH2ACC board in stock?
A2: Yes. We normally keep IS200TDBSH2ACC terminal boards available for fast delivery.
Q3: How long does shipping take after ordering?
A3: Orders typically ship within 3 days to 2 weeks, depending on order size and warehouse availability.
Q4: Which logistics carriers handle delivery?
A4: We ship via DHL, FedEx, UPS, and other reliable international carriers.
Q5: What if the board has a quality issue?
A5: Customers can request returns or replacement within 30 days if any quality issue occurs.
Q6: Which systems use the IS200TDBSH2ACC terminal board?
A6: The IS200TDBSH2ACC is designed for GE Mark VI turbine control systems to manage contact inputs and relay outputs.
