Overview

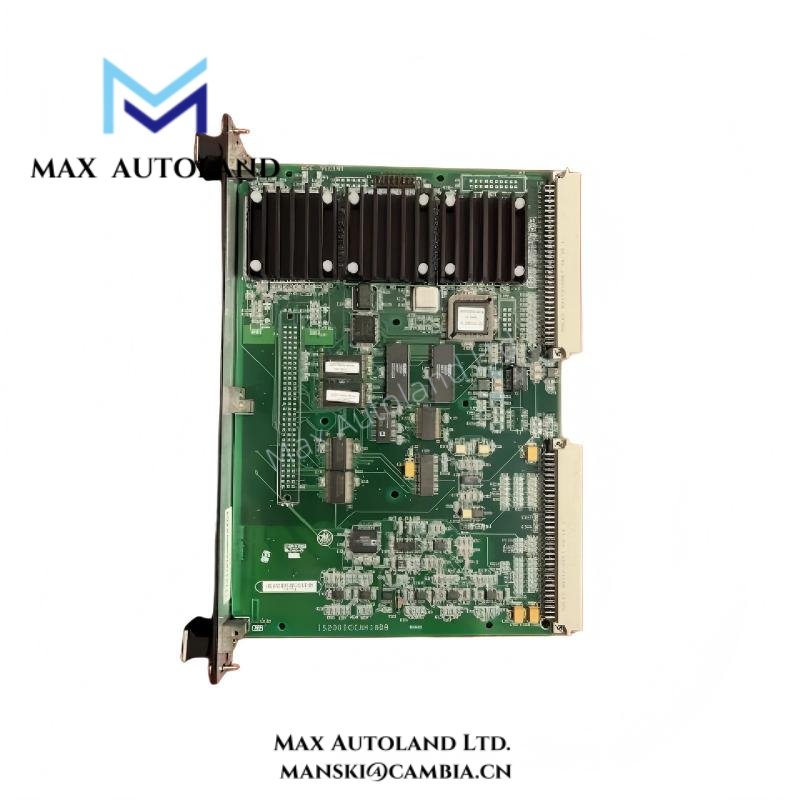

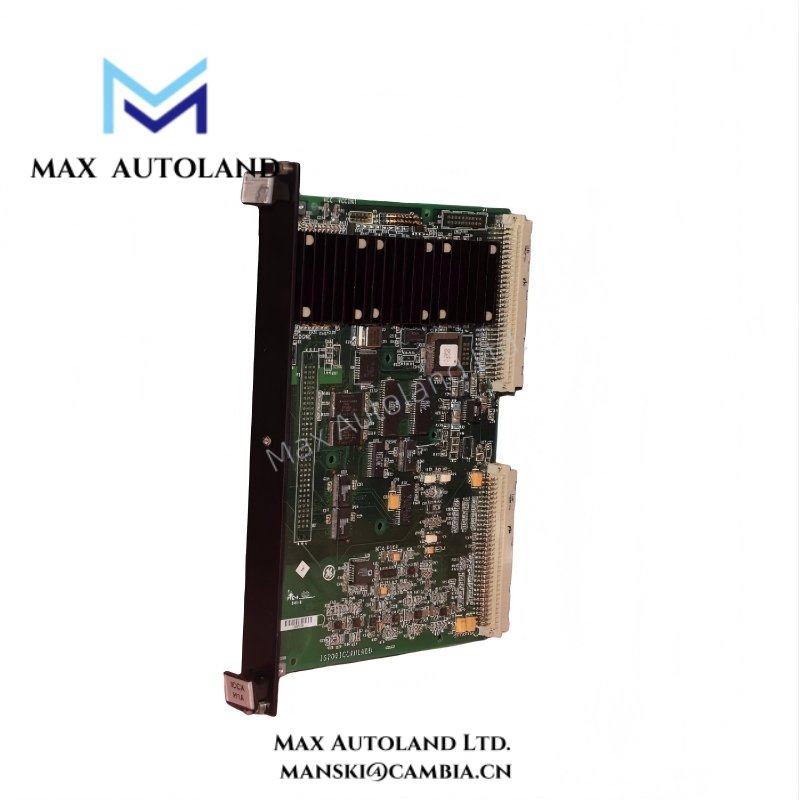

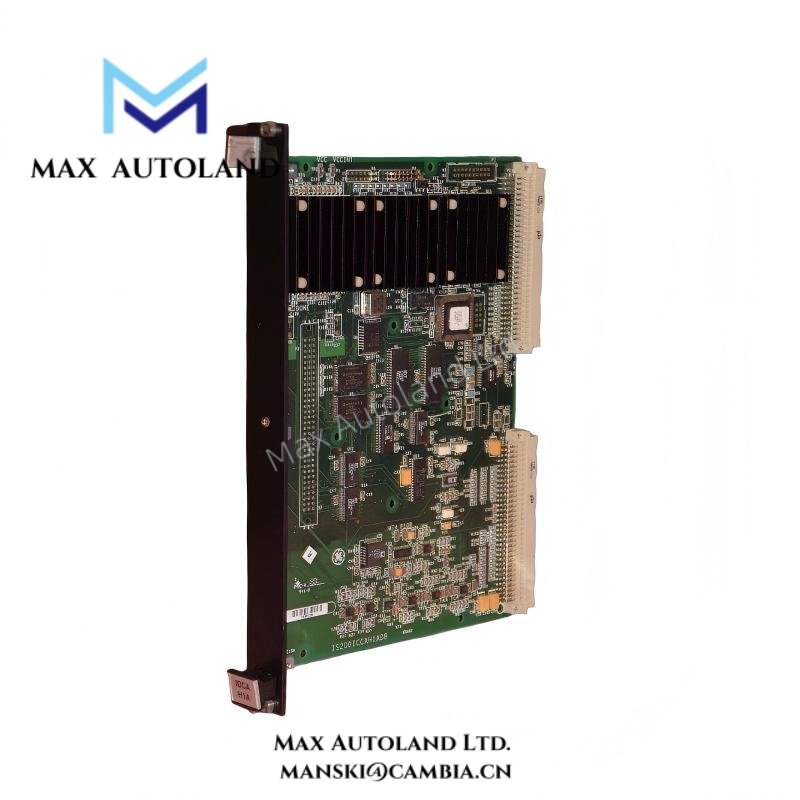

The IS200ICCAH1ADB control board supports advanced drive communication within the GE Mark VI turbine control architecture.
GE designed this board to coordinate signal exchange between turbine controllers and innovation drive systems efficiently.
Engineers rely on IS200ICCAH1ADB to deliver stable signal processing and consistent control performance during demanding turbine operations.
Additionally, the board integrates optimized circuit layouts that maintain signal accuracy across multiple industrial interfaces.
The IS200ICCAH1ADB module includes high-density electronic components and embedded energy storage capacitors for improved electrical stability.
Furthermore, its compact mechanical design fits standard Mark VI control racks and simplifies installation procedures.
Specification
| Parameter | Specification | Details |
|---|---|---|
| Manufacturer | GE (General Electric) | Global manufacturer of turbine control and industrial automation systems |
| Model | IS200ICCAH1ADB | Innovation Drive Control Board used in Mark VI systems |
| Series | Mark VI Turbine Control System | Supports turbine and industrial drive control integration |
| Board Type | Drive Control Printed Circuit Board | Multi-layer PCB designed for high-speed signal transmission |
| Dimensions | 218 mm × 140 mm × 38 mm | Compact structure suitable for standard Mark VI racks |
| Weight | 0.92 kg | Reinforced PCB structure ensures stability under vibration |
| Processor Components | 2 embedded microcontroller units | Handles drive communication and real-time signal processing |
| Memory Components | 6 integrated memory ICs | Supports configuration storage and diagnostic data logging |
| Interface Ports | 3 high-density signal connectors | Enables communication with Mark VI controllers and drive modules |
| Communication Interface | High-speed serial communication bus | Provides reliable signal transfer between drive and control subsystems |
| Input Power | 24 VDC control power supply | Industrial power level compatible with Mark VI system architecture |
| Energy Storage | 110 mF capacitor bank | Maintains voltage stability during transient electrical disturbances |
| Circuit Layers | 6-layer industrial PCB | Improves signal integrity and reduces electrical interference |
| Mounting Method | Rack mounted PCB with guide rails | Ensures stable installation inside Mark VI control cabinets |
| Operating Temperature | −20°C to 70°C | Suitable for turbine rooms and industrial power plants |
| Humidity Range | 5% – 95% non-condensing | Maintains performance in humid industrial environments |
| Diagnostic Capability | Integrated test points and status indicators | Supports system maintenance and troubleshooting procedures |
| Typical Service Life | More than 10 years | Designed for continuous turbine control operation |
FAQ
Q1: Is the IS200ICCAH1ADB module brand new and original?
Yes. The IS200ICCAH1ADB we supply is brand new and factory original.
Q2: Do you keep IS200ICCAH1ADB in stock?
Yes. We usually keep inventory available to support urgent industrial replacement requirements.
Q3: How long does shipping take after placing an order?
Shipping normally occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics carriers do you usually use?
We typically ship orders using reliable international logistics services such as DHL, FedEx, and UPS.
Q5: What input power does IS200ICCAH1ADB require?
The module operates with a 24 VDC industrial control power supply within the Mark VI system architecture.
Q6: What happens if the product has quality issues?
We support returns within 30 days if customers identify verified quality problems.
