Overview

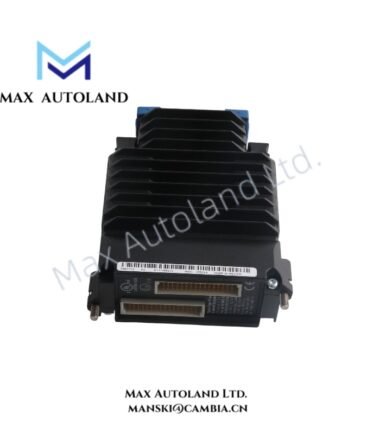

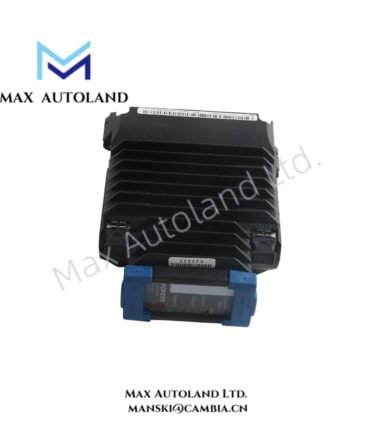

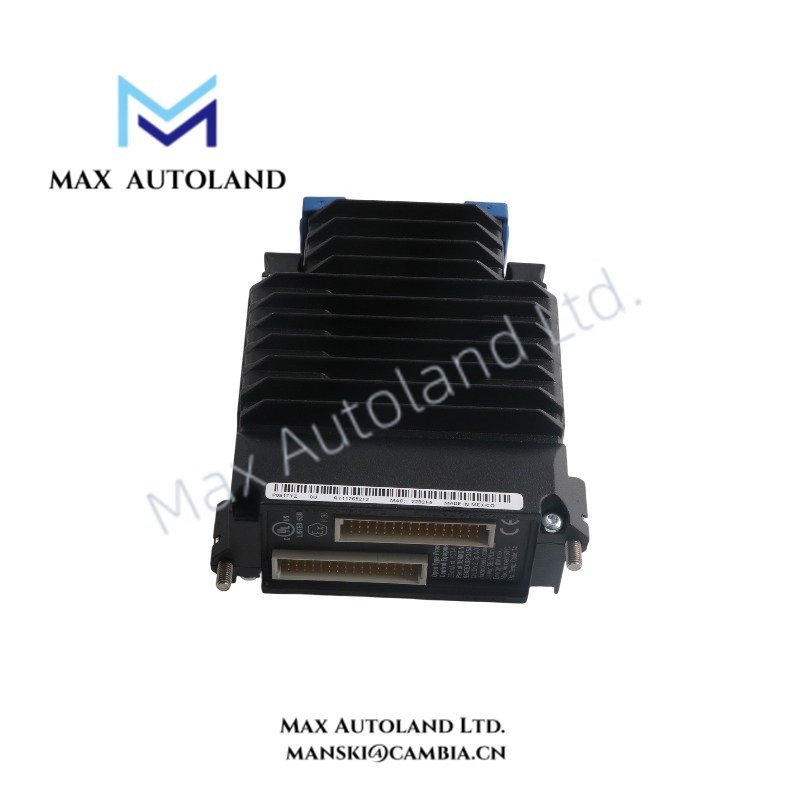

Invensys FCP270 Field Control Processor
The Invensys P0917YZ, also cataloged as the FCP270 Field Control Processor, performs distributed process control execution and alarm processing within Foxboro I/A Series control system architectures. It executes user-defined control strategies and manages field-level control operations through connected I/O networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FCP270 |
| Spare Model | P0917YZ |
| Brand | Invensys |
| Product Type | Field Control Processor |
| Origin | Not specified |
| Weight | 0.74 kg |
| Dimensions | 5 x 14.5 x 11.5 cm (estimated shipping size) |
| Controller Function | Distributed field-mounted process control and alarm execution |
| System Compatibility | Foxboro I/A Series control system platform |
| Control Execution | User-defined control strategy processing |
| Installation Type | Field-mounted controller hardware |
DCS Process Control Execution and Network Operation
The FCP270 operates as a field-level controller within the Invensys distributed control architecture. It executes configured regulatory control, logic processing, and alarm handling functions locally. Additionally, the processor exchanges process data with connected field I/O subsystems and higher-level control applications.
The controller architecture supports distributed processing by transferring control execution closer to field devices. Therefore, the system can reduce centralized controller loading while maintaining coordinated process operation. The FCP270 manages configured control blocks, signal processing tasks, and operator alarm functions according to the loaded application database.
Frequently Asked Questions
Q: What is the primary function of the Invensys FCP270 P0917YZ module?
A: The FCP270 P0917YZ is a Field Control Processor designed to execute user-defined process control strategies, alarm functions, and field-level control operations within an Invensys distributed control system.
Q: Is the FCP270 installed as a centralized controller or a field controller?
A: The FCP270 is designed as a distributed field-mounted controller. It performs local control execution while communicating process information through the system network.
Q: Does the FCP270 support fault-tolerant configurations?
A: The FCP270 supports optional fault-tolerant configurations depending on the installed system architecture and configured hardware arrangement.
Field Installation Guidelines
- Install the FCP270 according to the applicable Invensys/Foxboro system hardware installation documentation.
- Verify mechanical mounting conditions before connecting field wiring and communication interfaces.
- Use properly shielded cables for signal connections where required by the control system design.
- Connect cable shields according to site grounding practices to reduce electrical interference.
- Separate control communication wiring from high-voltage power cables to minimize induced noise.
- Confirm module seating, connector engagement, and system communication status after installation.
- Verify configured controller database parameters before placing the process loop into operation.
