Overview

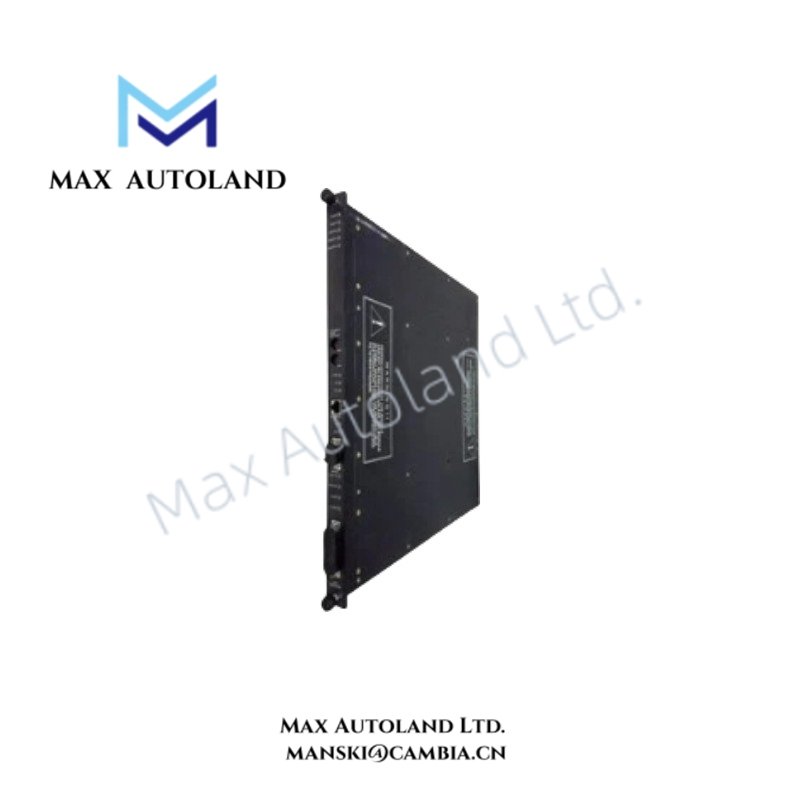

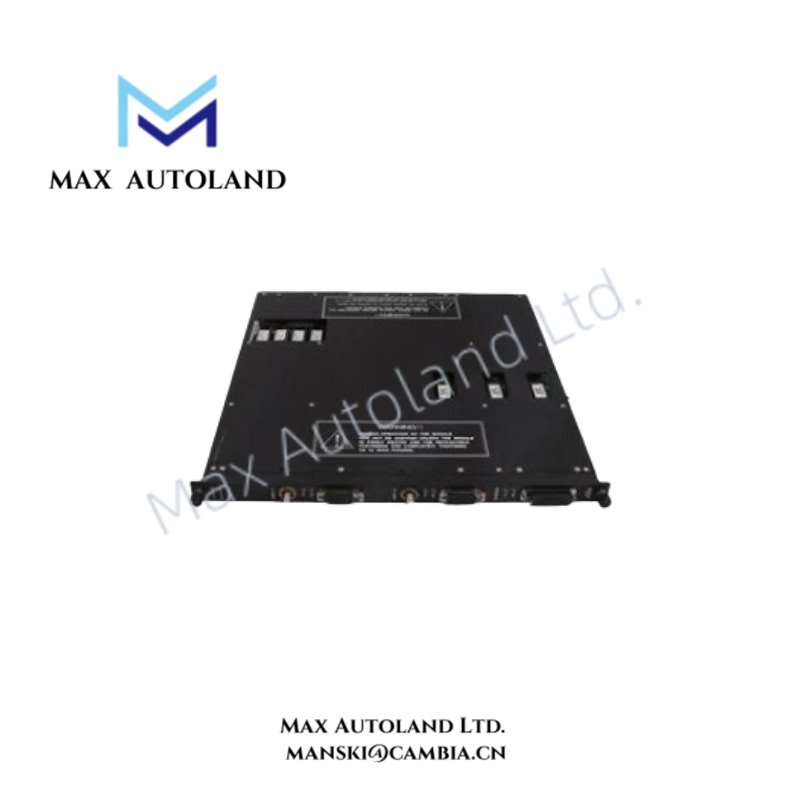

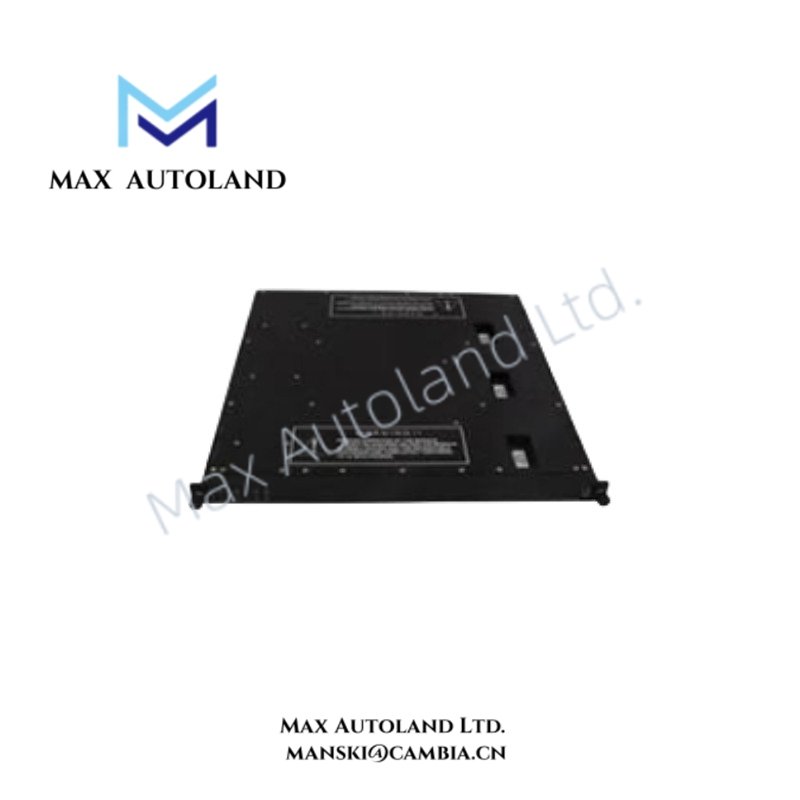

The Invensys Triconex 3101, also cataloged as the MP3101 Main Processor Module, operates as a dedicated hardware component for control logic execution, I/O data processing, and system synchronization within Triconex Safety Instrumented System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | Triconex 3101 / MP3101 Main Processor Module |
| Brand | Invensys Triconex |
| Origin | USA |
| Product Type | Main Processor Module |
| Processor | Motorola MPC860 32-bit RISC processor, 50 MHz |
| Memory Architecture | 16 MB DRAM with byte parity, 6 MB Flash PROM with CRC protection, 8 KB NVRAM with CRC protection |
| TriBus Interface | 25 Mbps CRC-protected communication interface with 32-bit plus parity DMA |
| TriStation Communication Port | 1 x 10BaseT Ethernet port with shielded RJ-45 connector |
| Modbus Communication Port | 1 x RS-232/485 DTE interface with DB-9 shielded connector |
| Debug Port | RJ-12 diagnostic connector located on baseplate |
| Communication Bus | RS-485 HDLC communication bus, 2 Mbps |
| Real-Time Clock | Power-on accuracy typically 1 second/day, maximum 2.2 seconds/day |
| Backup Battery | AA lithium battery, predicted service life up to 15 years |
| Dimensions | Approximately 16 cm x 16 cm x 12 cm |
| Weight | Approximately 0.8 kg |
TMR Safety Control Architecture
The Triconex 3101 MP3101 Main Processor Module operates within a Triple Modular Redundancy (TMR) architecture. The processor executes identical control programs across redundant processing paths and performs voting operations to maintain fail-safe state execution.
The module supports SIL3 safety system configurations when installed within approved Triconex SIS architectures. In addition, the processor uses continuous diagnostic routines, CRC memory verification, and redundant communication monitoring to detect internal faults.
The MP3101 uses TriBus communication to exchange synchronized data between processor modules and I/O subsystems. Furthermore, the architecture provides fault containment through hardware separation and controlled data validation between redundant processing channels.
Frequently Asked Questions
Q: What communication interfaces are available on the Triconex 3101 MP3101 module?
A: The module provides a TriStation 10BaseT Ethernet interface, an RS-232/485 Modbus DTE port, and an RJ-12 diagnostic port for maintenance access.
Q: Does the MP3101 support Triconex TMR operation?
A: Yes. The MP3101 is designed for Triconex TMR architectures and executes synchronized processing with redundant processor modules through the TriBus interface.
Q: What memory types are installed on the Triconex 3101 module?
A: The module includes DRAM for application execution, Flash PROM for system software storage, and CRC-protected NVRAM for retentive variables.
Field Installation Guidelines
Install the Triconex 3101 MP3101 module only in compatible Triconex chassis and approved baseplate configurations.
Verify that the module seating mechanism fully engages with the backplane connector before system power application. Ensure communication cables maintain proper shielding and grounding practices to reduce electromagnetic interference.
Route Ethernet, RS-485, and diagnostic wiring separately from high-voltage power conductors. Confirm connector integrity and inspect the baseplate communication contacts before replacement or commissioning.
