Overview

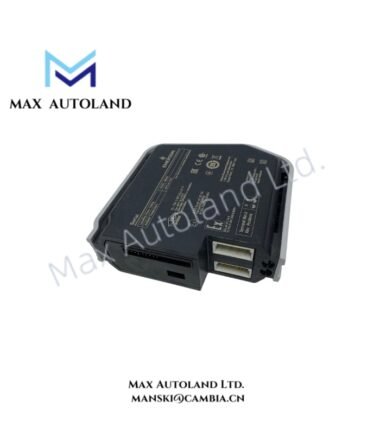

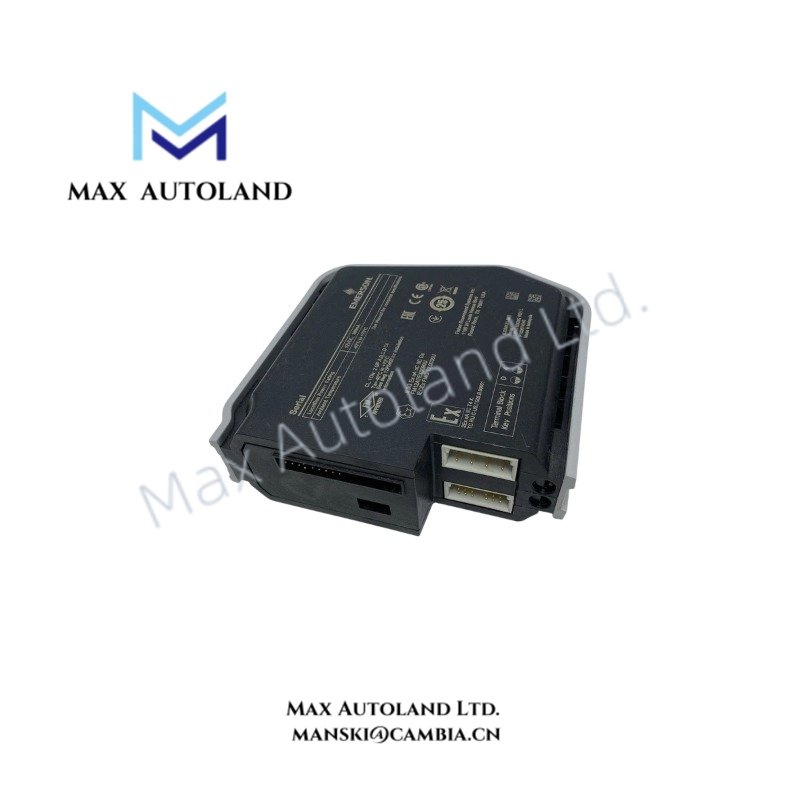

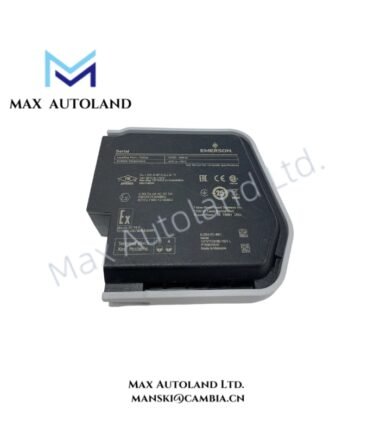

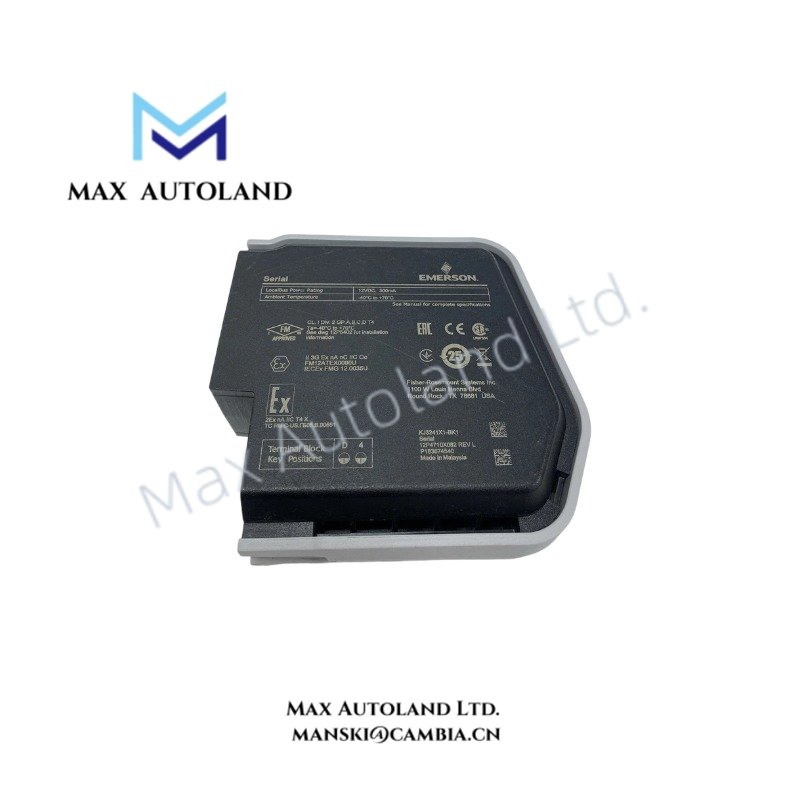

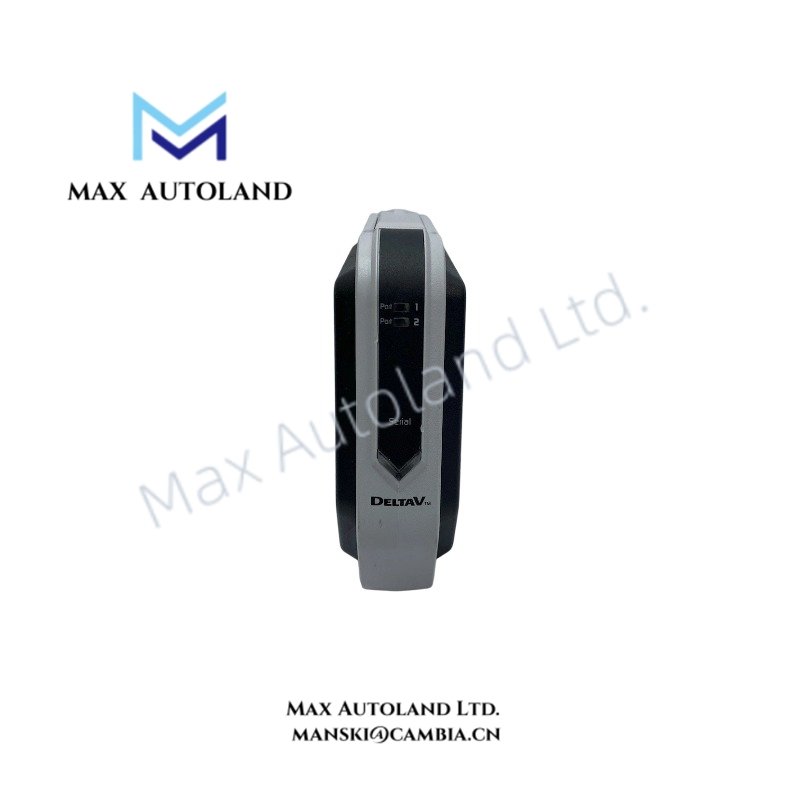

Configured for bidirectional serial communication in the Emerson DeltaV S-Series control system, the Emerson KJ3241X1-BK1, also cataloged as the KJ3241X1-BK1 S-Series Serial Interface Card, provides direct electrical execution for RS-232, RS-422, and RS-485 data exchange between DeltaV controllers and external devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3241X1-BK1 |
| Brand | Emerson Automation Solutions |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 12 VDC @ 300 mA from DeltaV backplane |
| Product Family | DeltaV S-Series |
| Alternate Part Numbers | 12P4710X062 / SE4006P2 |
| Module Type | S-Series Serial Interface Card |
| Serial Ports | 2 independent isolated ports |
| Physical Interfaces | RS-232, RS-422 4-wire, RS-485 2-wire / 4-wire |
| Protocol Support | Modbus RTU, Modbus ASCII, downloadable protocol drivers |
| Communication Mode | Master and Slave configuration per port |
| Data Sets | 32 total, 16 per port |
| Data Format | 7 or 8 data bits, 1 or 2 stop bits |
| Isolation Method | Port-to-system and port-to-port galvanic isolation |
| Terminal Block Compatibility | KJ4006X1-BD1 |
| Mechanical Key Position | D4 |
| Protection Rating | IP20 |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Hazardous Area Certification | ATEX / IECEx II 3G Ex ec IIC Gc; Class I Division 2 Groups A, B, C, D |
DCS Serial Communication and Isolation Characteristics
The KJ3241X1-BK1 manages serial communication channels between DeltaV S-Series hardware and external instruments. It processes RS-232, RS-422, and RS-485 signals while maintaining electrical separation between communication ports and the system backplane.
In addition, the module supports Modbus RTU and Modbus ASCII protocol execution through embedded drivers. Therefore, users can configure each serial port independently for Master or Slave operation according to field device communication requirements.
The module incorporates channel-to-channel isolation to reduce ground loop influence and electrical interference. Furthermore, the isolated serial architecture supports connection to third-party devices such as PLCs, analyzers, weigh scales, and smart instruments.
Frequently Asked Questions
Q: Does the KJ3241X1-BK1 support hot-swap operation in a DeltaV S-Series carrier?
A: Yes. The module supports live insertion and removal under powered conditions when installed within a compatible DeltaV S-Series carrier configuration.
Q: How many independent serial communication channels does the module provide?
A: The KJ3241X1-BK1 provides two isolated serial ports. Each port can operate independently with supported RS-232, RS-422, or RS-485 electrical interfaces.
Q: What installation control prevents incorrect terminal block connection?
A: The module uses a rotary keying system with D4 mechanical key position to prevent installation into incompatible terminal blocks.
Field Installation Guidelines
Install the KJ3241X1-BK1 in a compatible DeltaV S-Series carrier slot and verify the terminal block key position before insertion. Connect serial field wiring according to the selected RS-232, RS-422, or RS-485 interface configuration.
Use shielded communication cables for serial field connections and terminate cable shields according to the site grounding practice. Avoid routing serial communication cables parallel to high-voltage power conductors to reduce electromagnetic interference.
Verify communication parameters, including baud rate, parity, data bits, and stop bits, before placing connected field devices into operation. Confirm that external devices use compatible Modbus RTU, Modbus ASCII, or configured third-party protocol drivers.
Inspect the module status LEDs after installation. Confirm power status, communication activity, and system error indications before commissioning the serial network.
