Overview

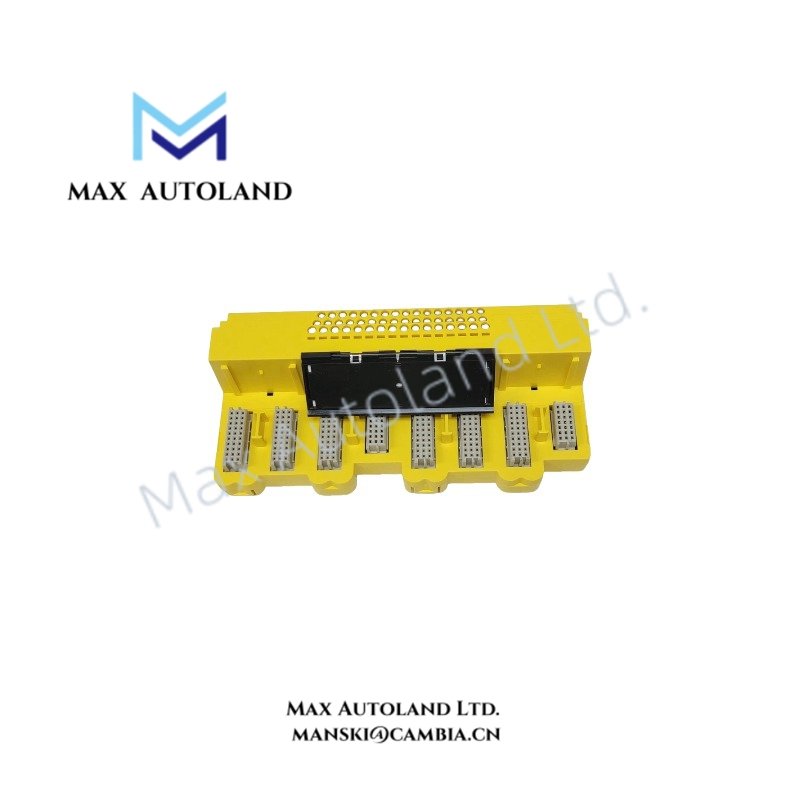

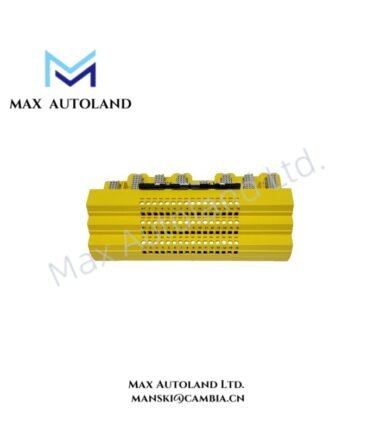

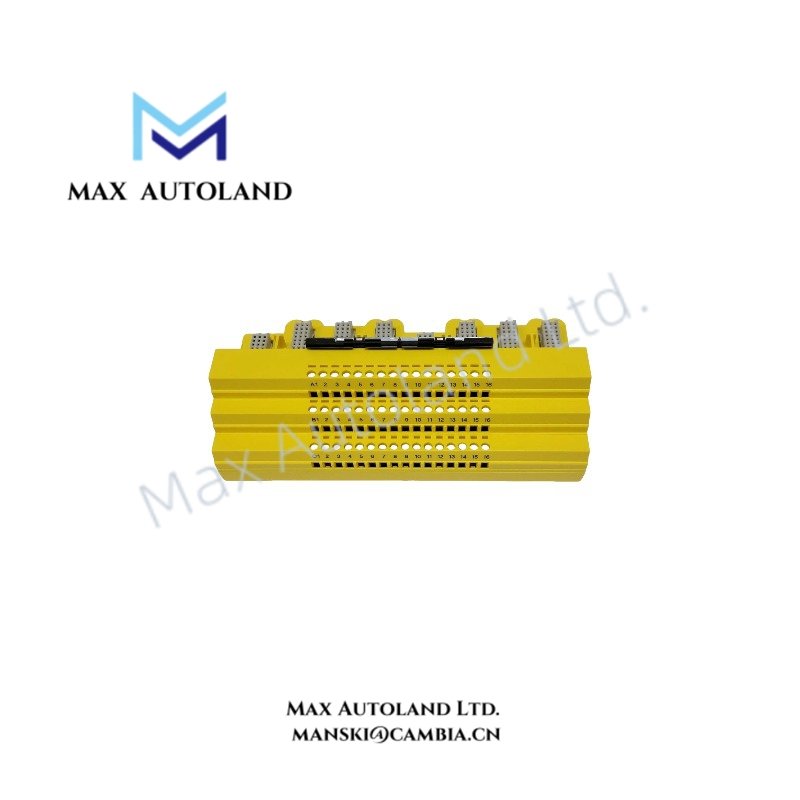

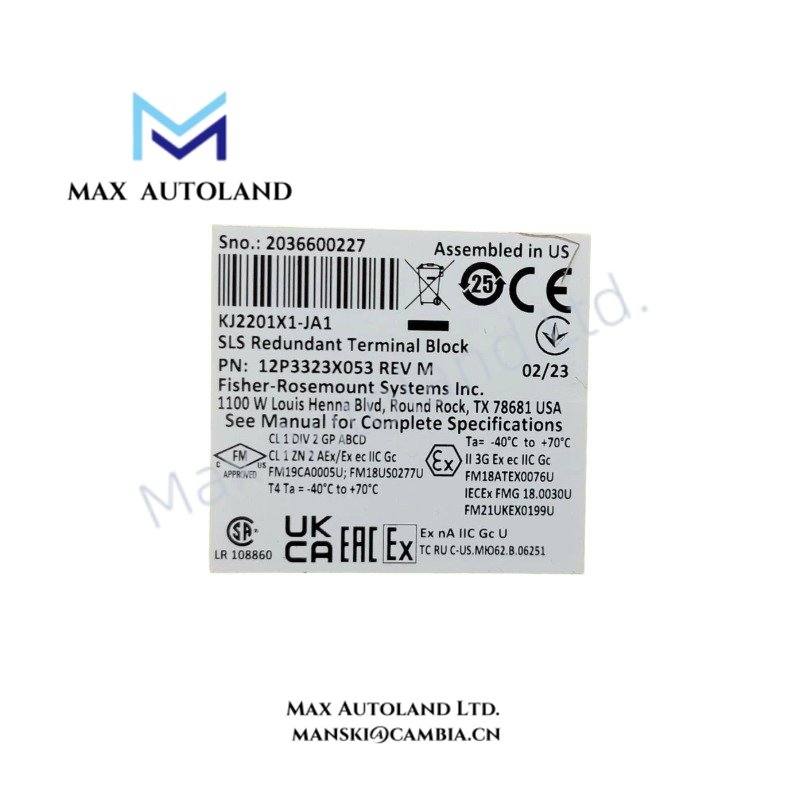

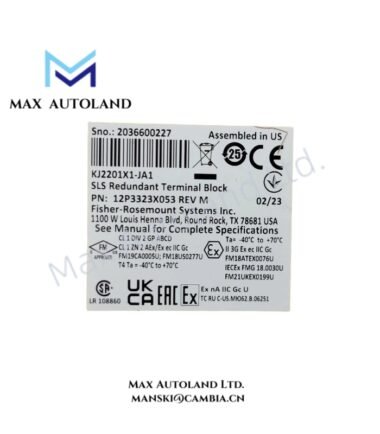

Configured for redundant field signal termination in the Emerson DeltaV SIS platform, the Emerson KJ2201X1-JA1 (KJ2201X1-JA1 Safety Logic Solver Redundant Terminal Block) provides direct electrical interface execution between field safety devices and DeltaV Safety Logic Solver modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2201X1-JA1 |
| Brand | Emerson |
| Product Type | Safety Logic Solver Redundant Terminal Block |
| System Platform | Emerson DeltaV Safety Instrumented System (SIS) |
| Base Module | KJ2201X1-JA1 |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | 30 VDC input, maximum current 30 mA per channel (A to B), 1 A per channel (A to C) |
| Channel Count | 16 signal channels |
| Mounting Type | Panel / Carrier Mount |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | 1 mm peak-to-peak at 2 Hz to 13.2 Hz; 0.7 g at 13.2 Hz to 150 Hz |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Ingress Protection | IP20 |
| Contaminant Protection | ISA-S71.04-1985 Class G3 |
DeltaV SIS Safety Signal Interface Characteristics
The KJ2201X1-JA1 provides a redundant terminal interface for DeltaV SIS safety circuits. It connects field input and output devices, including safety transmitters, emergency shutdown switches, and final control elements, to the Safety Logic Solver.
Furthermore, the terminal block maintains dual-path signal routing to reduce single wiring path failures. The module supports DeltaV SIS architectures that require continuous monitoring of safety-related circuits and controlled execution of safety logic.
The terminal interface supports Emerson DeltaV safety hardware designs with channel isolation requirements. Therefore, field wiring segregation, grounding practice, and signal integrity management remain important during installation.
Frequently Asked Questions
Q: Does the Emerson KJ2201X1-JA1 support redundant field wiring configurations?
A: Yes. The KJ2201X1-JA1 provides redundant terminal connections designed for dual-path safety circuit configurations within DeltaV SIS installations.
Q: Can the KJ2201X1-JA1 be removed while the system remains powered?
A: No. The terminal block requires power-down conditions before removal or insertion to maintain safety system operating requirements.
Q: What type of field devices can connect through this terminal block?
A: The module interfaces with DeltaV SIS field devices such as safety transmitters, emergency stop devices, and shutdown valves through configured safety channels.
Field Installation Guidelines
- Install the KJ2201X1-JA1 on the designated DeltaV SIS carrier or panel mounting assembly according to Emerson hardware installation procedures.
- Verify that the system power is removed before inserting or removing the terminal block. This prevents unintended electrical changes during maintenance operations.
- Route safety instrument wiring separately from high-voltage power cables and high-current switching circuits to reduce electrical interference.
- Connect cable shields according to site grounding standards and maintain consistent shield termination practices across the SIS field wiring network.
- Confirm terminal assignments before field connection. Incorrect wiring can affect safety channel operation and diagnostic performance.
- Inspect environmental conditions before installation. The installation location must maintain the specified temperature, humidity, vibration, and contamination limits.
