Overview

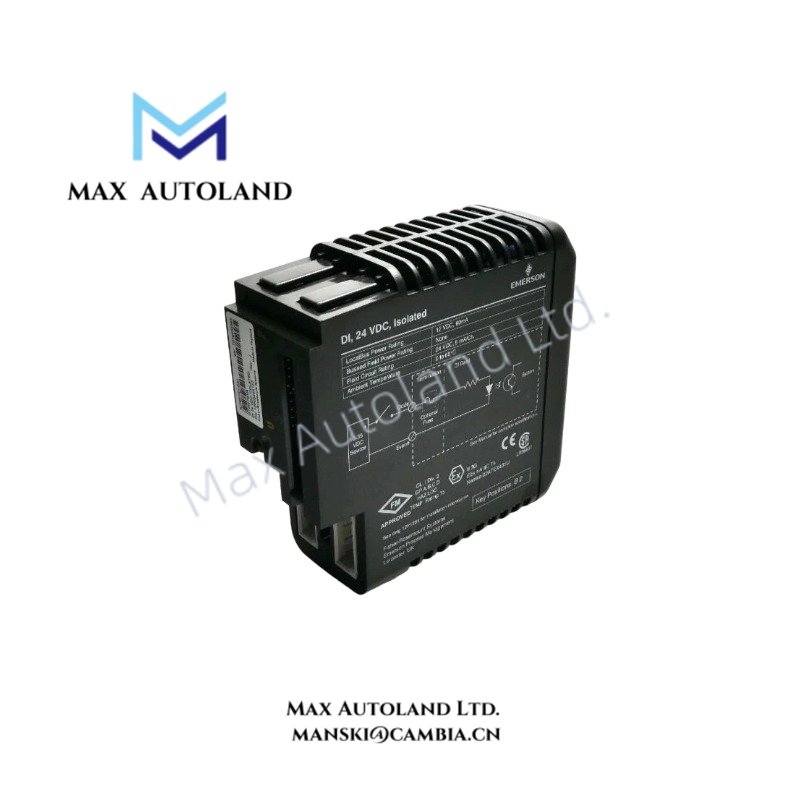

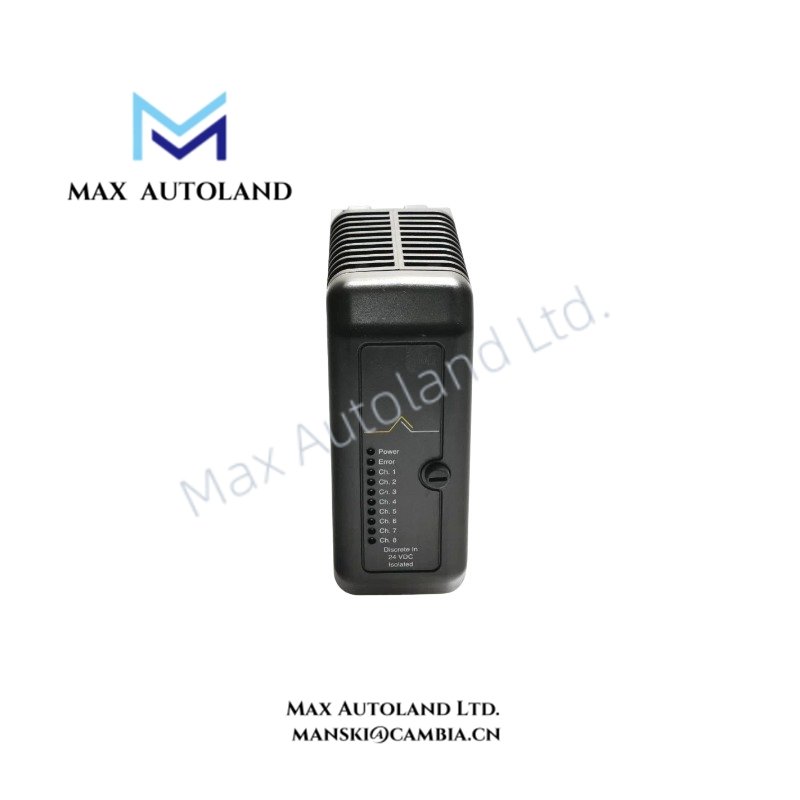

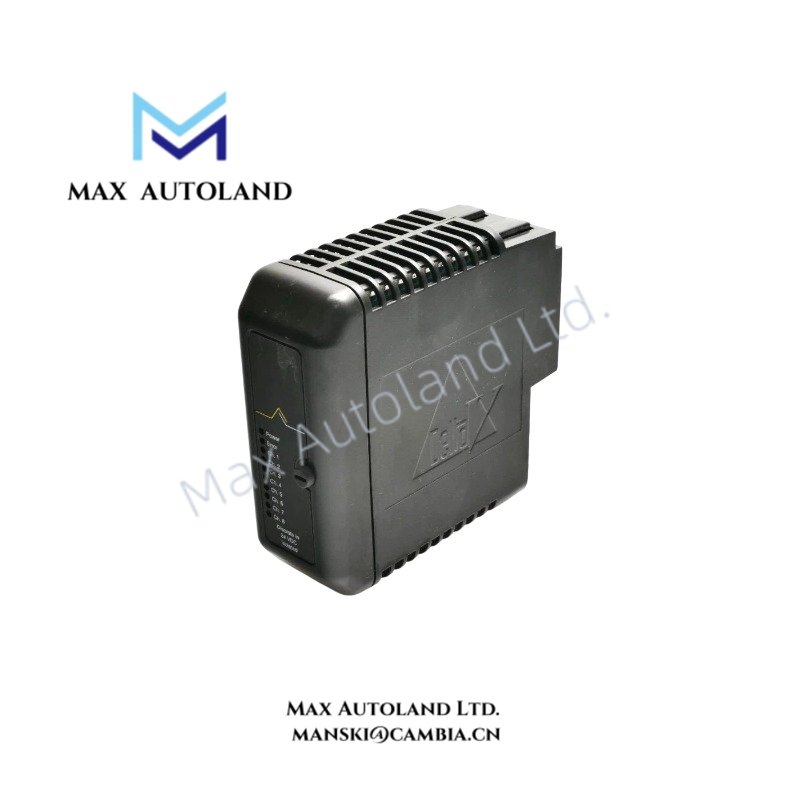

The Emerson KJ3001X1-BA1, also cataloged as the KJ3001X1-BA1 Discrete Input Module, operates as a dedicated hardware component for acquiring isolated 24 VDC discrete signals within Emerson DeltaV control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3001X1-BA1 |
| Spare Model | 1290549X152 |
| Brand | Emerson |
| Product Type | Discrete Input Module |
| Weight | 0.2 kg |
| Dimensions | 4.4 cm x 10.8 cm x 12.7 cm |
| Power Consumption | 24 VDC field input operation |
| Channel Count | 8 isolated discrete input channels |
| Input Voltage | 24 VDC |
| Signal Type | Digital discrete input |
| Status | Discontinued by manufacturer |
Channel-to-Channel Isolation and Process Signal Handling
The Emerson KJ3001X1-BA1 provides eight isolated discrete input channels for receiving 24 VDC field signals. Moreover, the module design separates input channels electrically to reduce interference between external field circuits. Therefore, it supports stable signal acquisition from industrial switching devices connected to the DeltaV I/O architecture.
In addition, the isolated input design helps protect the control system backplane from field-side electrical disturbances. The module processes binary field states and transfers input status information through the Emerson control system communication structure.
Frequently Asked Questions
Q: How many discrete input channels does the Emerson KJ3001X1-BA1 provide?
A: The KJ3001X1-BA1 provides 8 isolated discrete input channels designed for 24 VDC digital signal acquisition.
Q: Does the KJ3001X1-BA1 support channel isolation?
A: Yes. The module specification identifies isolated input channels for separating field signal circuits.
Q: What installation considerations apply to this input module?
A: Installation should follow DeltaV system hardware requirements, including correct terminal wiring, grounding practices, and approved cabinet mounting procedures.
Field Installation Guidelines
Install the KJ3001X1-BA1 module in the designated Emerson DeltaV I/O carrier position according to system configuration requirements. Verify terminal assignments before connecting field wiring.
Use appropriate shield grounding methods when field devices operate in electrically noisy environments. Additionally, separate low-level signal wiring from high-energy power cables to reduce electromagnetic interference.
Confirm that the connected field devices provide compatible 24 VDC discrete signals. Before commissioning, check input channel status through the control system diagnostics interface and verify correct field-state indication.
