Overview

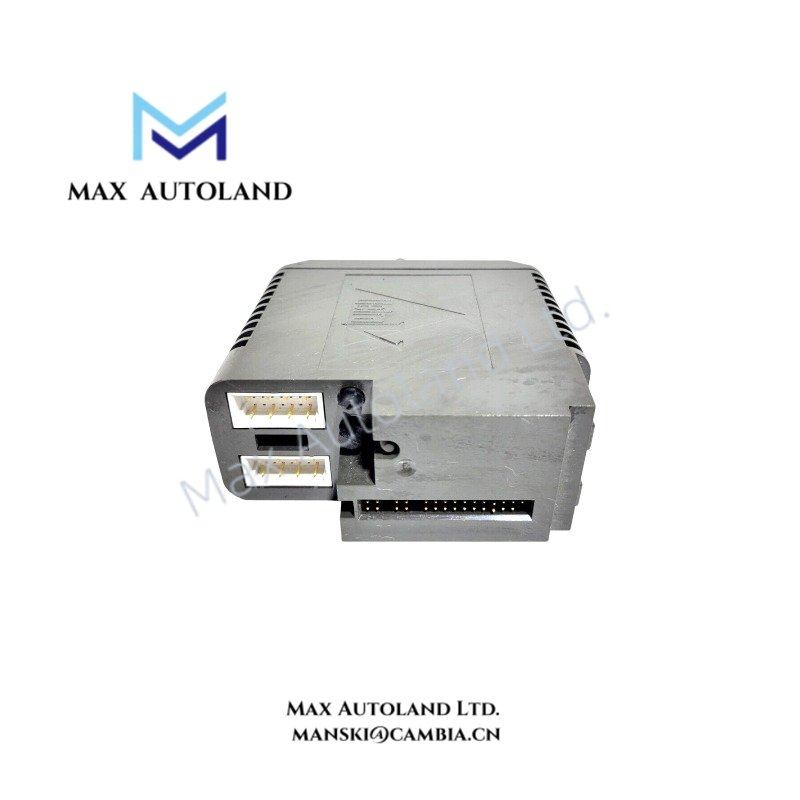

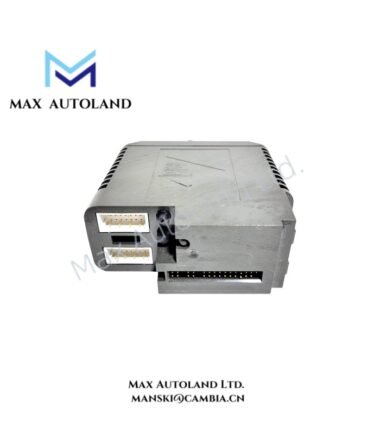

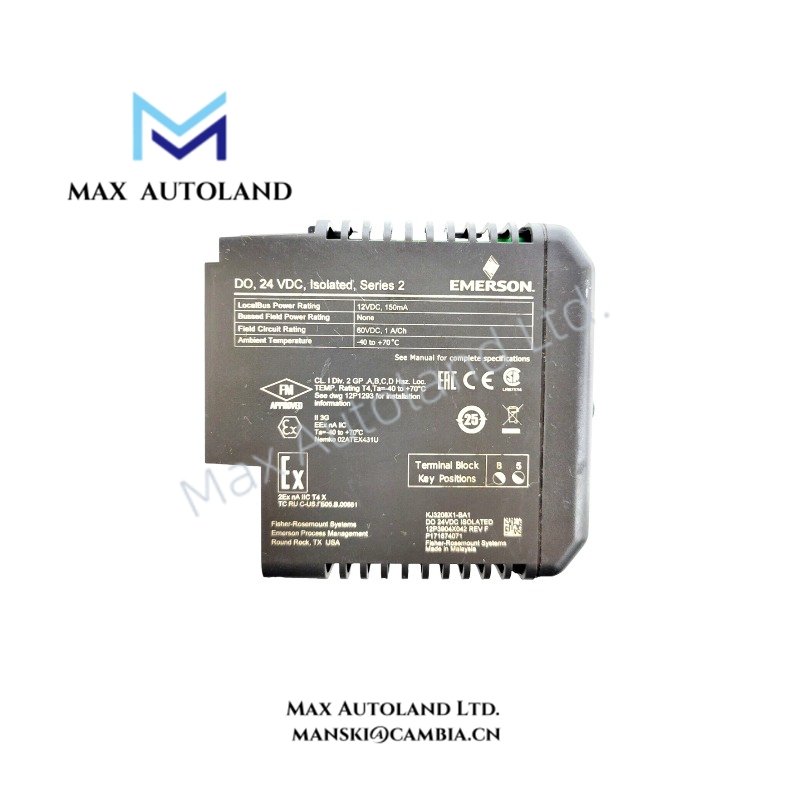

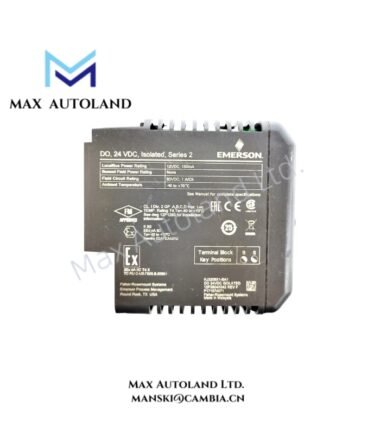

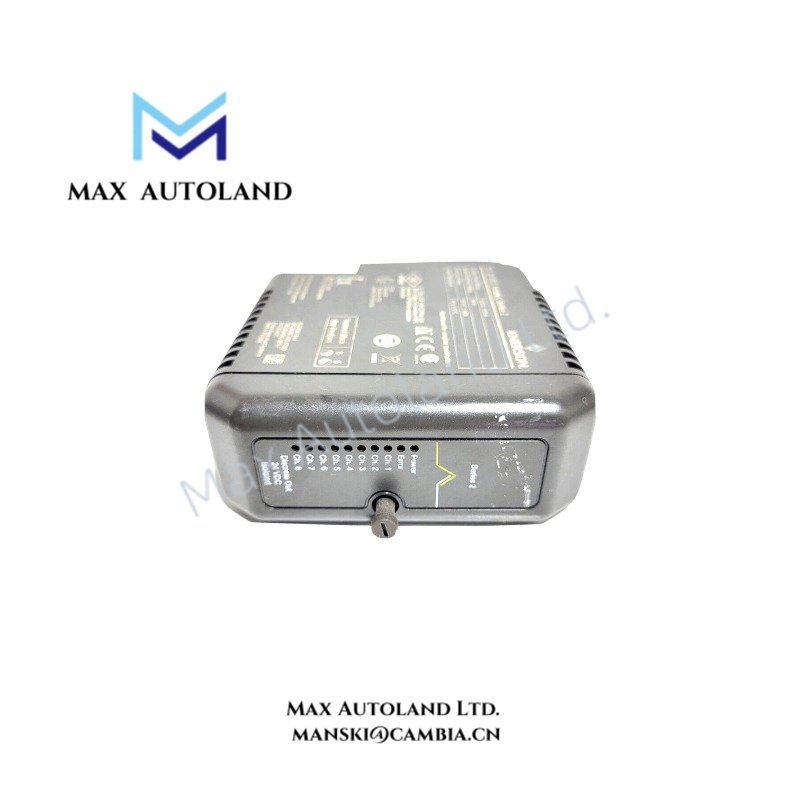

The Emerson KJ3208X1-BA1, also cataloged as the KJ3208X1-BA1 Digital Output Module, operates as a dedicated hardware component for 24 VDC discrete signal execution within the DeltaV M-Series control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3208X1-BA1 |
| Brand | Emerson Process Management |
| Product Type | 8-Channel 24 VDC Isolated Digital Output Module |
| System Platform | DeltaV M-Series |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Local Bus Power: 12 VDC at 150 mA |
| Field Circuit Rating | 60 VDC at 1 A per channel |
| Channel Configuration | 8 isolated digital output channels |
| Hazardous Area Certification | II 3G Ex nA IIC Gc |
| Certification | FM12ATEX0090U, IECEx FMG 12.0035U |
| Terminal Block Key Position | B5 |
| Relative Humidity | 5 to 95% non-condensing |
| Enclosure Protection | IP 20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Shock Resistance | 10 g half sine wave for 11 ms |
| Vibration Resistance | 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
Process Control Signal Isolation and Output Execution
The KJ3208X1-BA1 provides eight isolated 24 VDC digital output channels for DeltaV M-Series I/O processing. Moreover, each channel supports field circuit switching up to 60 VDC at 1 A per channel. The module receives local bus power at 12 VDC and transfers controller commands into discrete electrical output states.
In addition, Emerson DeltaV I/O architecture supports channel-to-channel isolation to reduce electrical interaction between field circuits. Therefore, the module maintains separated output paths for industrial discrete control applications where field wiring conditions require controlled signal separation.
Frequently Asked Questions
Q: Does the KJ3208X1-BA1 support operation in hazardous areas?
A: Yes. The module carries II 3G Ex nA IIC Gc classification with FM12ATEX0090U and IECEx FMG 12.0035U certification references.
Q: Can the KJ3208X1-BA1 be removed or inserted while system power is active?
A: No. The unit cannot be removed or inserted with energized system power unless the area is confirmed non-hazardous. Non-sparking field circuits must be de-energized before removal or insertion.
Q: Does the module require user calibration or internal adjustment?
A: No. The module contains no user-serviceable parts and does not require calibration during operation.
Field Installation Guidelines
Install the KJ3208X1-BA1 according to DeltaV M-Series hardware installation procedures and hazardous area requirements. Verify that the terminal block key position matches the installed I/O card before commissioning.
Route field wiring separately from high-voltage conductors and maintain proper shielding and grounding practices according to site electrical standards. In addition, confirm that all non-sparking field circuits are de-energized before inserting or removing the module.
Do not disassemble the module during maintenance activities. Inspect terminal connections, module seating, and field wiring conditions during routine system checks.
