Overview

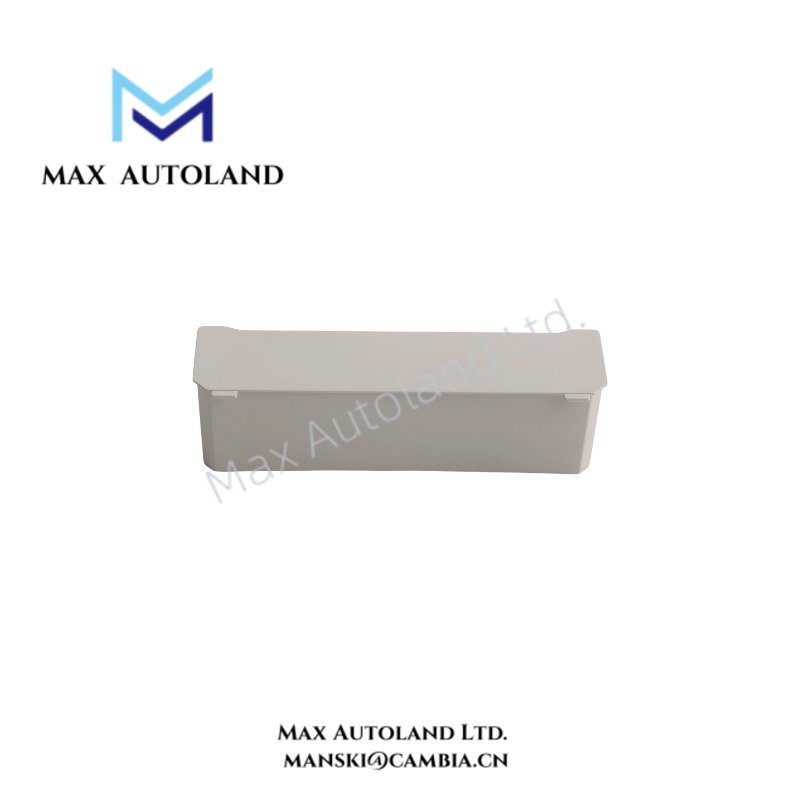

Configured for physical cavity insertion and electrical interface support, the Emerson 1X00569H01 (1X00569H01 PMOD Cavity Insert) provides direct mechanical and electrical integration within Emerson process control hardware assemblies. The blank insert includes a silkscreened part number on the bottom surface and is specified for operation at up to 600 VAC and 100 A. It uses a 32-pin backplane interface and provides 500 V DC isolation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1X00569H01 |
| Product Parameters | PMOD Cavity Insert |
| Description | Blank insert with silkscreened part number on bottom |
| Brand | Emerson |
| Origin | USA |
| Weight | 0.02 kg |
| Dimensions | 12 x 3.5 x 3 cm |
| Backplane | 32-pin |
| Rated Voltage | 600 VAC |
| Rated Current | 100 A |
| Isolation | 500 V DC |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | 5-95 % RH, non-condensing |
Process Control Interface and Electrical Isolation
The Emerson 1X00569H01 is associated with physical PMOD cavity installation rather than field signal measurement or analog signal conversion. Its specified 32-pin backplane connection establishes the mechanical and electrical interface with the associated hardware assembly.
The component provides 500 V DC isolation according to the supplied specification. Therefore, installation should maintain separation between applicable electrical circuits and adjacent conductors. Although Emerson process control platforms may use technologies such as 4-20 mA HART communication, FOUNDATION Fieldbus, or other field interfaces, no specific fieldbus or analog communication function is specified for the 1X00569H01 itself.
Frequently Asked Questions
Q: What is the electrical rating of the Emerson 1X00569H01?
A: The supplied specification lists a rated voltage of 600 VAC and a rated current of 100 A.
Q: What backplane connection does the 1X00569H01 use?
A: The component is specified with a 32-pin backplane interface.
Q: What environmental conditions are specified for operation?
A: The operating temperature range is -40 deg C to +70 deg C, with humidity specified at 5-95 % RH, non-condensing.
Field Installation Guidelines
Verify that the Emerson 1X00569H01 matches the intended PMOD cavity and associated hardware assembly before installation. Disconnect or isolate applicable electrical power before inserting or removing the component.
Align the insert with the cavity and 32-pin interface without applying excessive mechanical force. Inspect the connector area for bent pins, contamination, or foreign material before installation.
Maintain appropriate conductor separation for circuits associated with the specified voltage and current ratings. Route power and signal conductors according to the installation requirements of the surrounding Emerson hardware. Keep moisture and condensation away from the installed assembly and operate the component within the specified environmental limits.
