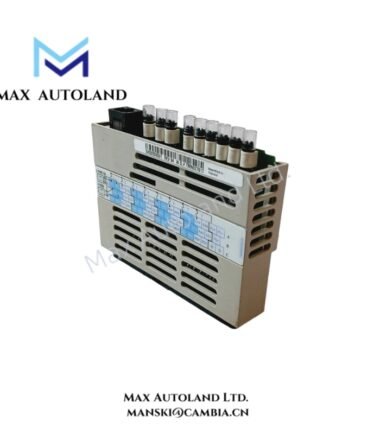

Emerson 5X00059G01 Analog Input Module

Overview

The Emerson 5X00059G01, also cataloged as the 5X00059G01 Analog Input Module, operates as a dedicated hardware component for interfacing analog and discrete electrical signals with the Emerson Ovation DCS I/O infrastructure. Based on the supplied identification data, 5X00059G01 is associated with analog input functionality and includes an RS-232 serial port reference. The provided 0.5 A and 125 VAC ratings are retained as supplied and should be verified against the installed unit documentation before electrical connection.

Hardware Specifications

4-20 mA HART Loop Protocol

For process-control installations, analog input hardware may interface with a 4-20 mA loop while supporting superimposed HART digital communication where the installed channel and system configuration provide HART capability. The analog signal represents the measured process variable, while the HART communication layer transfers device configuration and diagnostic data over the same field loop.

Channel wiring should follow the applicable Ovation I/O documentation. Signal shields, loop common references, intrinsic-safety interfaces, and field-device grounding arrangements must be evaluated as part of the complete installation rather than assumed from the module identification alone.

Frequently Asked Questions

Q: Can the Emerson 5X00059G01 be connected directly to a 4-20 mA field device?
A: The supplied information identifies analog input functionality and references 4-20 mA operation. However, the exact channel wiring, loop supply arrangement, and HART compatibility should be verified against the installed Ovation I/O configuration.

Q: Does the 5X00059G01 support HART communication?
A: HART functionality is listed in the supplied product description. Confirmation should be made against the module revision and associated Ovation hardware documentation before commissioning HART field devices.

Q: What electrical ratings are provided for this module?
A: The supplied identification data lists 0.5 A and 125 VAC. These ratings should be verified against the module label and applicable system documentation before installation.

Field Installation Guidelines

• Confirm the complete model number 5X00059G01 against the installed hardware label before replacement.
• Isolate electrical power according to the applicable plant lockout and maintenance procedures before removing or installing hardware unless the approved system procedure specifically permits energized replacement.
• Verify rack position, connector engagement, and backplane compatibility before applying power.
• Route analog signal wiring separately from high-voltage and high-current conductors to reduce induced electrical noise.
• Terminate cable shields according to the plant grounding standard and the applicable Ovation installation documentation.
• Verify field-loop polarity, current-loop continuity, and signal scaling before placing the channel into service.
• If HART communication is required, verify the complete loop configuration, field device, channel capability, and host-system configuration during commissioning.
• Check RS-232 interface requirements before connecting external serial equipment.
