Overview

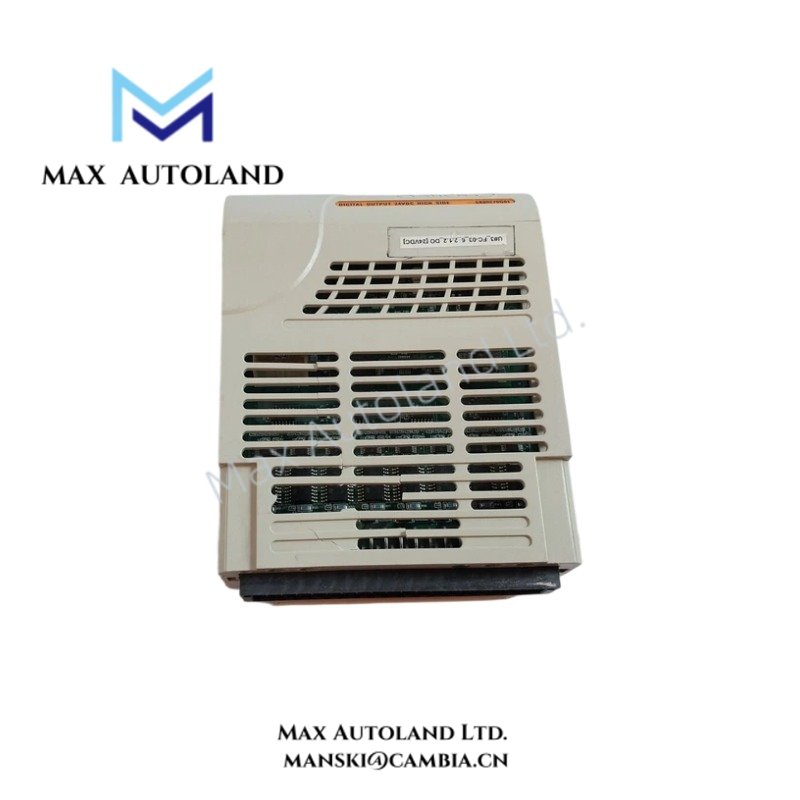

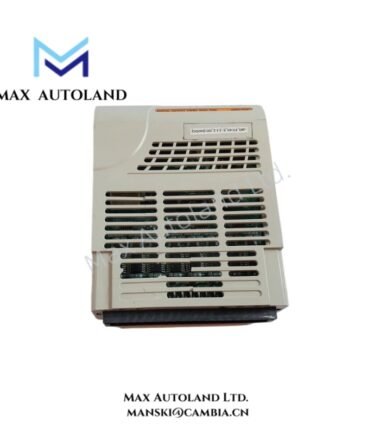

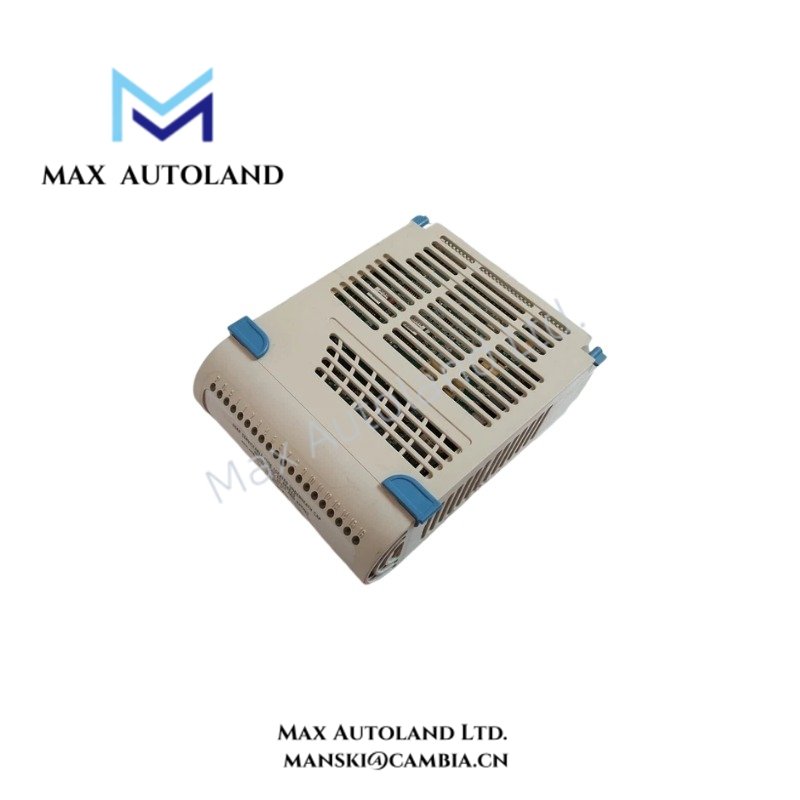

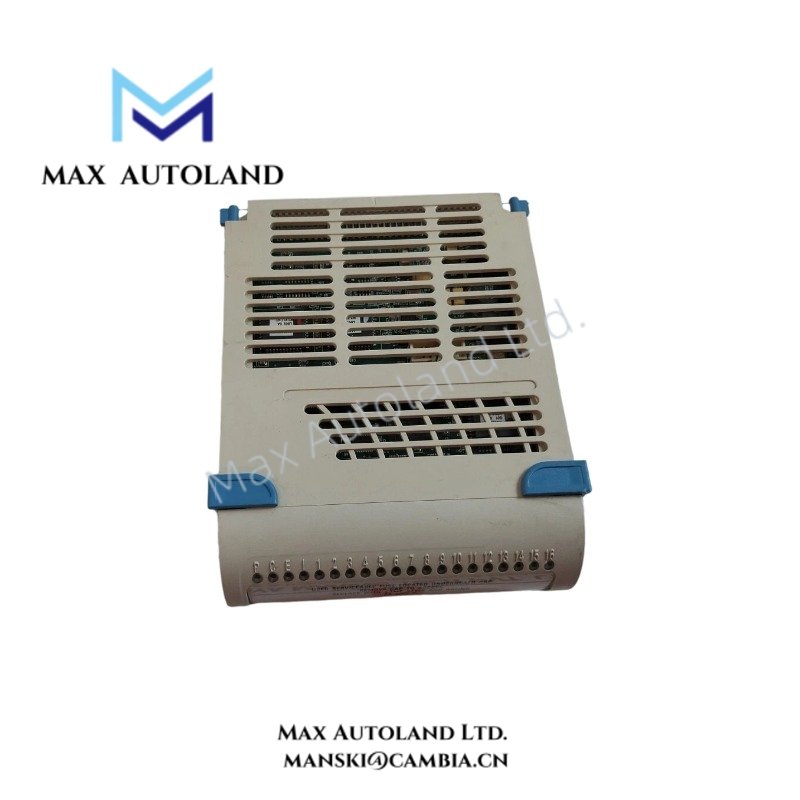

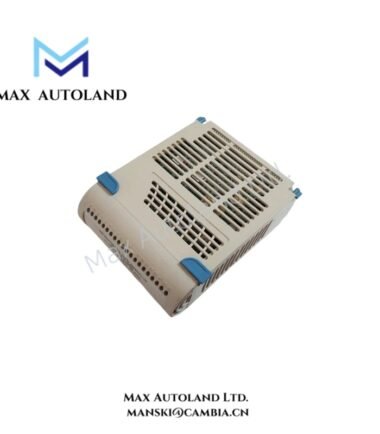

Configured for 24 VDC high-side output signal execution in the Ovation DCS, the Emerson 5X00270G01 (5X00270G01 24 VDC High Side Output Process Module) provides direct electrical output switching to connected process circuits. The module operates from a 24 VDC supply and interfaces with the Emerson Ovation hardware architecture for discrete process control and status execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00270G01 |
| Brand | Emerson / Westinghouse |
| Product Series | Ovation DCS |
| Product Type | 24 VDC High Side Output Process Module |
| Origin | United States |
| Weight | Approximately 0.8 kg |
| Dimensions | Approximately 12 cm x 5 cm x 16.5 cm |
| Operating Voltage | 24 VDC |
| Core Function | High-side 24 VDC process output execution |
| System Interface | Emerson Ovation DCS hardware architecture |
| Diagnostics | Module health and channel status monitoring |
DCS Output Signal and Channel Isolation Characteristics
The 5X00270G01 performs physical output-side switching for process control circuits operating at 24 VDC. In a high-side output arrangement, the module applies the positive supply side to the connected field circuit when the corresponding output channel is commanded.
Within a DCS installation, output wiring practices should consider channel separation, cable routing, field load characteristics, and common-reference arrangements. Channel-to-channel isolation requirements depend on the associated Ovation hardware configuration and field interface design. The supplied specifications do not define individual channel isolation ratings or output current limits.
The module also supports diagnostic monitoring of module health and channel status. These diagnostics allow the Ovation system to identify output-related hardware conditions through the installed control architecture.
Frequently Asked Questions
Q: What electrical supply does the Emerson 5X00270G01 use?
A: The provided specification identifies a 24 VDC operating voltage.
Q: Does the 5X00270G01 provide field output switching?
A: Yes. It is identified as a 24 VDC high-side output/process module for electrical output execution within the Ovation DCS architecture.
Q: Are the output current rating and hot-swap characteristics specified?
A: No specific output current, backplane load, or hot-swap limitation is provided in the available technical data. Installation should follow the applicable Emerson Ovation hardware documentation for the installed system.
Field Installation Guidelines
Verify that the module part number is 5X00270G01 before installation and confirm compatibility with the installed Ovation hardware configuration.
Isolate or control the applicable 24 VDC field power according to site procedures before connecting or disconnecting field wiring. Route output wiring separately from high-energy power conductors where practical to reduce electrical interference.
Use conductor sizes and termination methods appropriate for the connected field load and cabinet design. Maintain consistent labeling for output channels, field circuits, and supply references. Inspect terminals and connectors for secure mechanical engagement before system energization.
Where shielded field cables are used, terminate cable shields according to the plant grounding design and the applicable Ovation installation requirements. After installation, verify module status and channel diagnostics through the configured DCS system.
