Overview
Specification
| Parameter | Description |
|---|---|

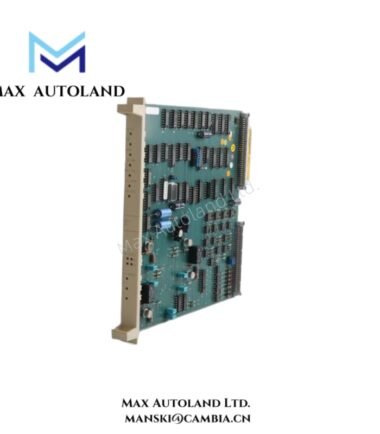

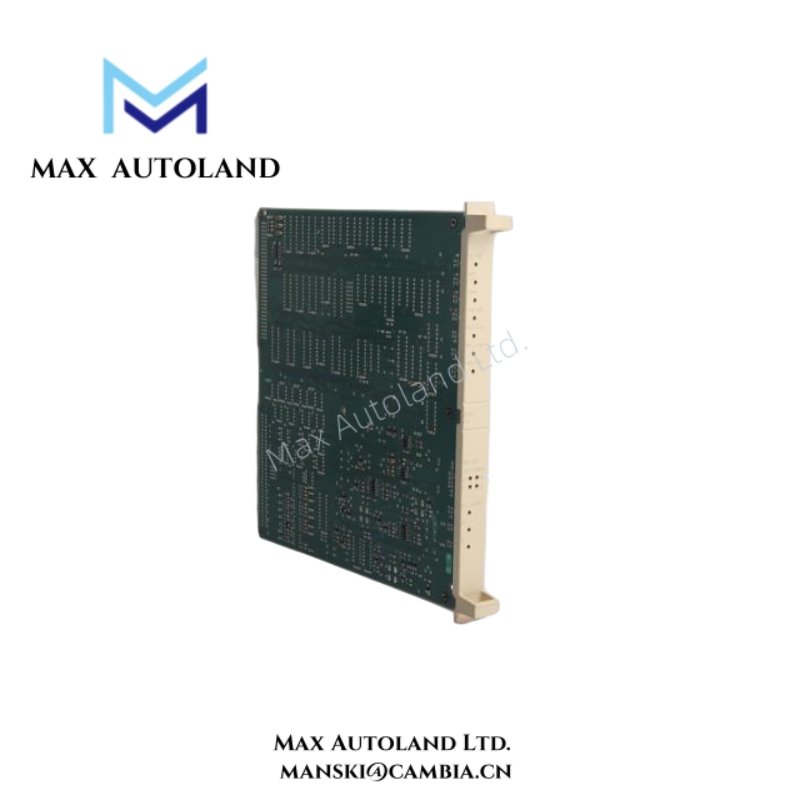

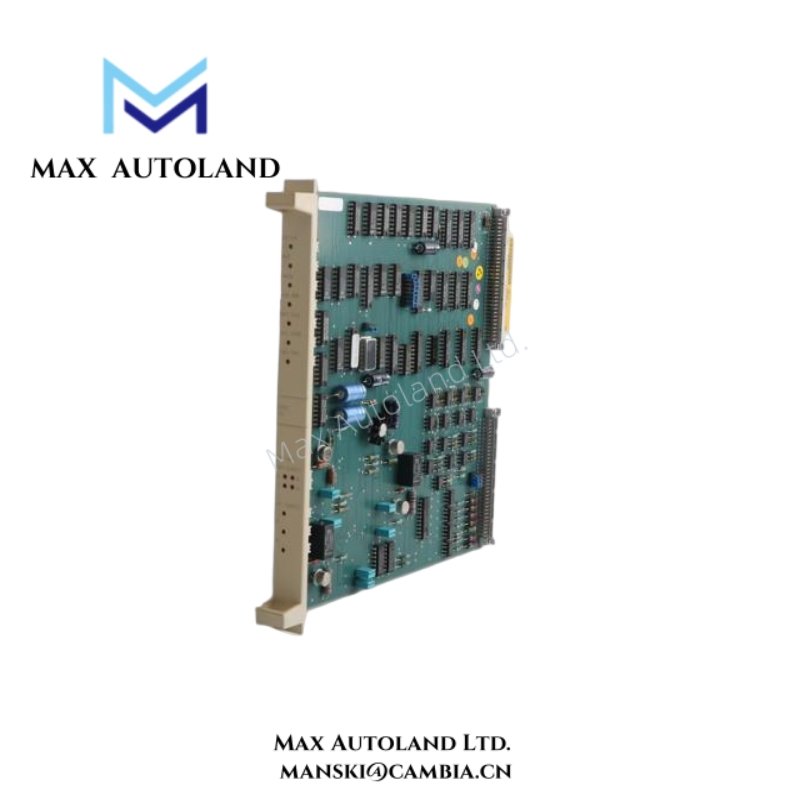

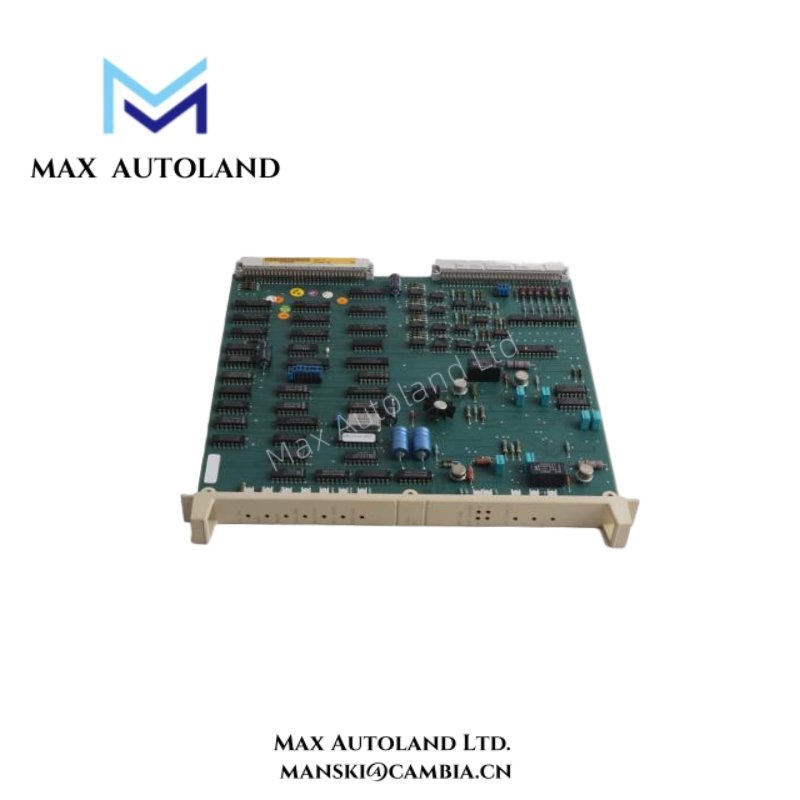

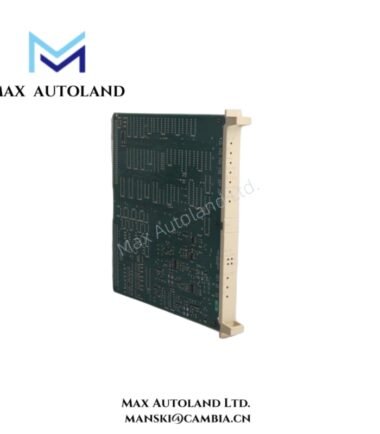

| Model Number | DSBC 172 57310001-KD |
| Module Type | Bus Repeater Module |
| System Compatibility | ABB Advant OCS / 800xA Automation Systems |
| Function | Regenerates and strengthens bus communication signals |
| Supported Network | Profibus, Fieldbus, or ABB proprietary bus (as per system design) |
| Input Voltage | 24 V DC typical |
| Power Consumption | ≤ 3 W |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | –20°C to 70°C (–4°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel-mounted |
| Signal Isolation | Provides electrical isolation for stable network operation |
| Dimensions | Standard module size for ABB control racks |
| MTBF | >100,000 hours typical in industrial applications |
FAQ
It is compatible with ABB Advant OCS and 800xA automation networks.Q2: What is the purpose of a bus repeater module?
It regenerates and strengthens signals, extending network communication range.
Q3: Can it operate in harsh industrial environments?
Yes, it tolerates electrical noise, vibration, and temperature variations.
Q4: How is the module mounted?
It can be DIN rail or panel-mounted within standard control cabinets.
Q5: Does it require configuration for network integration?
Most installations are plug-and-play, requiring minimal configuration.
