Overview

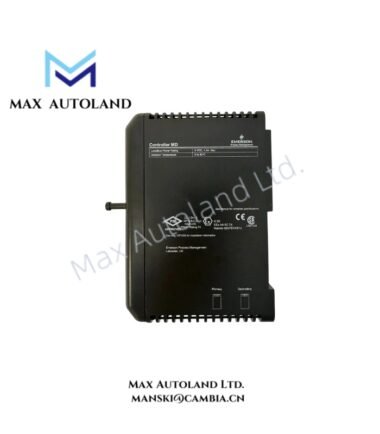

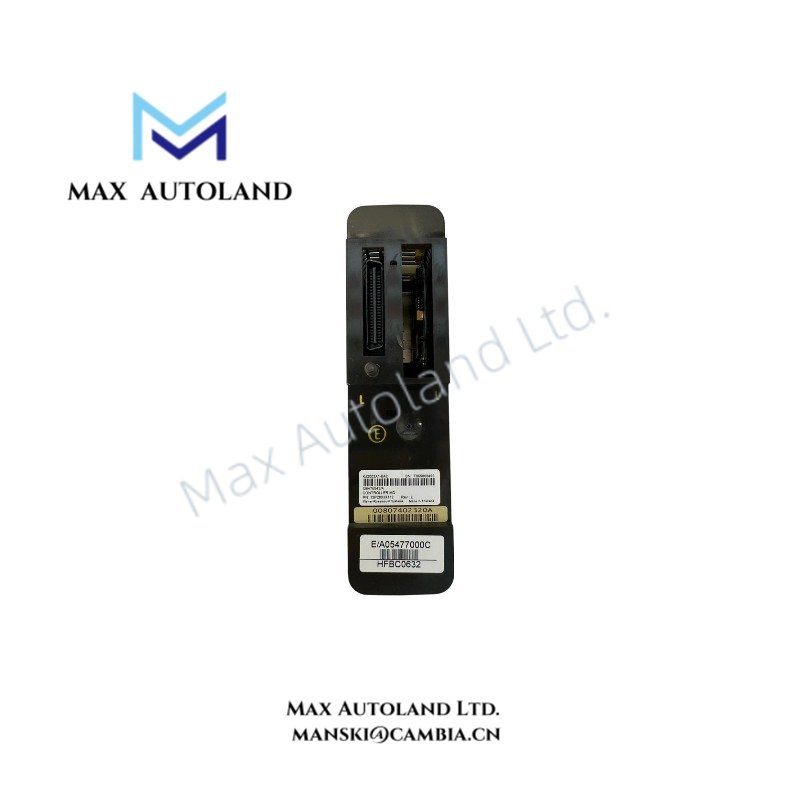

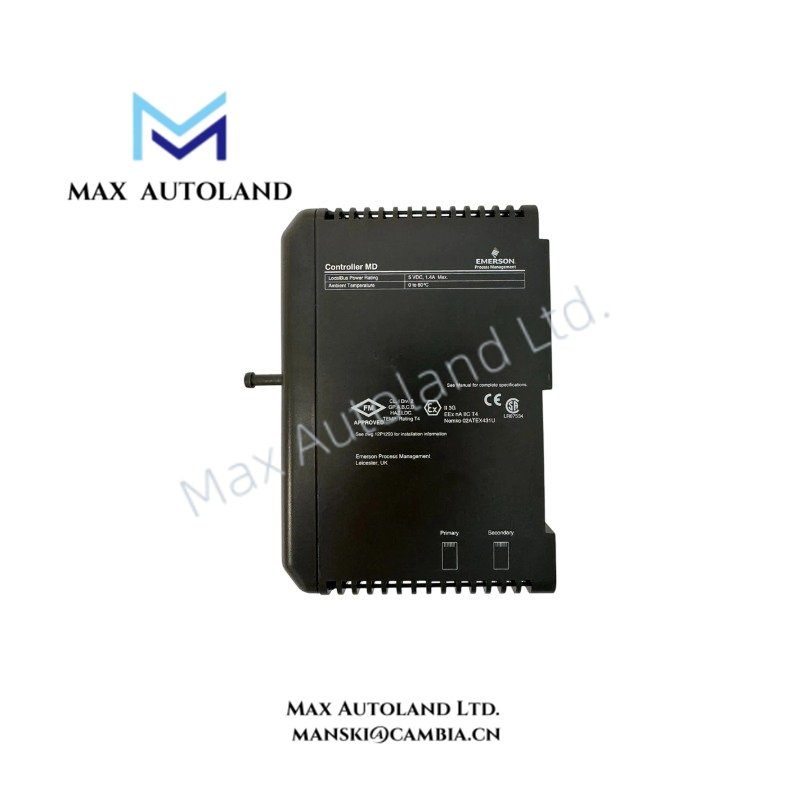

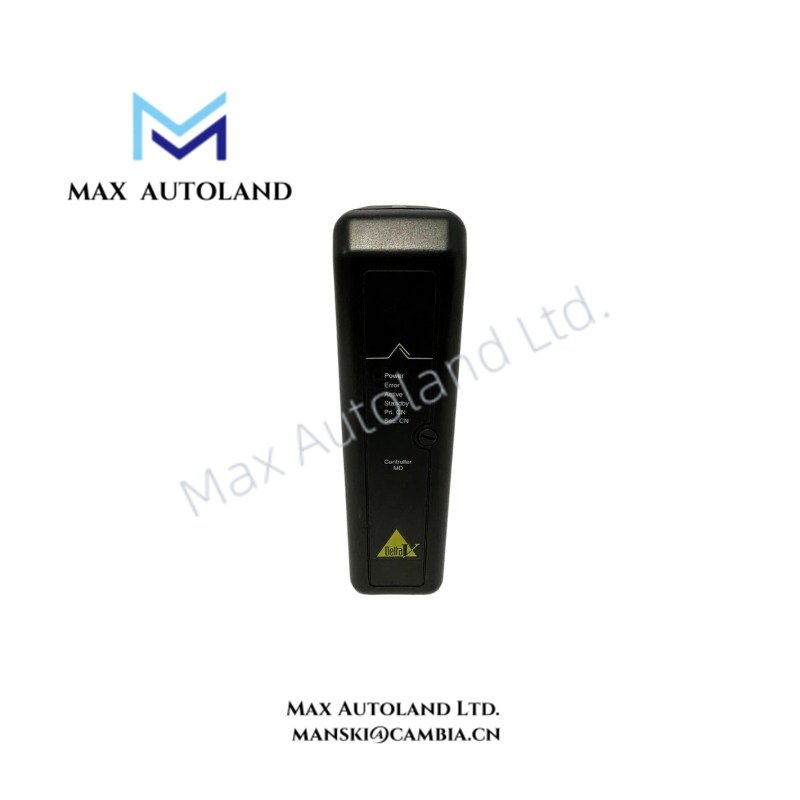

The Emerson KJ2003X1-BA2, also cataloged as the VE3005 MD Controller Module, operates as a dedicated hardware component for executing control logic and Ethernet data communication within the Emerson DeltaV Distributed Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ2003X1-BA2 / VE3005 / 12P2093X112 |
| Brand | Emerson |
| Product Type | MD Controller Module |
| Origin | USA |
| Weight | 0.34 kg |
| Dimensions | 4.1 x 12.7 x 16 cm (estimated shipping size) |
| Operating Temp | 0 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | 5 VDC, 1.4 A maximum LocalBus power |
| Communication Interface | Integrated Ethernet communication port |
| System Platform | DeltaV Distributed Control System |
| Mounting Method | DeltaV carrier installation |
| Design Feature | Hot-swappable module architecture |
Process Control and DCS Communication Features
The Emerson KJ2003X1-BA2 MD Controller Module executes DeltaV control strategies through local processing resources and manages communication between controller functions, I/O subsystems, and the DeltaV control network. Moreover, the module supports Ethernet-based data exchange for controller-to-system communication.
The module operates within Emerson DeltaV architectures that use distributed control execution and modular I/O configurations. In addition, DeltaV controller functions support process signal management associated with 4-20 mA HART loop protocol, FOUNDATION Fieldbus, and Profibus PA connectivity when integrated with compatible DeltaV I/O modules.
The controller design supports channel-level signal processing through associated I/O hardware. Therefore, field signal integrity depends on the connected I/O module configuration, wiring arrangement, and installed field interface components.
Frequently Asked Questions
Q: Does the KJ2003X1-BA2 support hot-swappable replacement?
A: The module uses a DeltaV carrier-based modular design that supports installation and replacement procedures according to DeltaV system maintenance requirements. Verify system status before removing any active controller module.
Q: What power input does the KJ2003X1-BA2 require from the DeltaV carrier?
A: The module receives LocalBus power from the carrier with a rated requirement of 5 VDC at a maximum current of 1.4 A.
Q: Which communication interface is available on the controller module?
A: The KJ2003X1-BA2 provides an integrated Ethernet communication interface for DeltaV control network connectivity.
Field Installation Guidelines
- Install the KJ2003X1-BA2 on the specified DeltaV carrier position according to system configuration documentation.
- Confirm that the DeltaV firmware revision and controller software environment match before commissioning.
- Separate Ethernet communication cables from high-voltage power wiring to reduce electromagnetic interference.
- Connect cable shields according to site grounding practices and applicable industrial electrical standards.
- Verify carrier power availability and module seating before system startup.
- Maintain proper cabinet ventilation to keep the controller within the specified operating temperature range.
