Overview

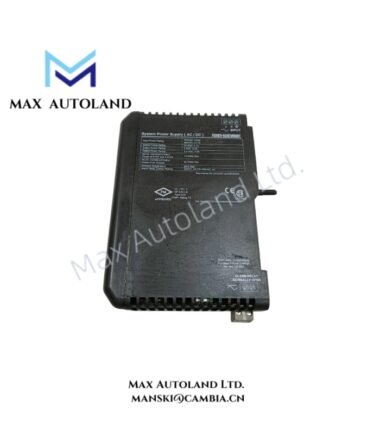

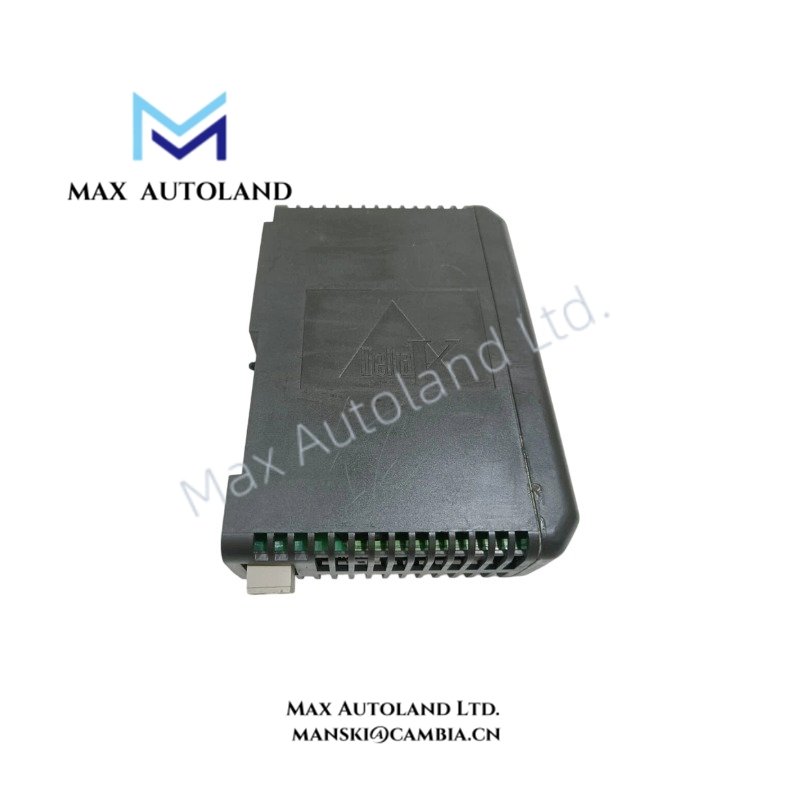

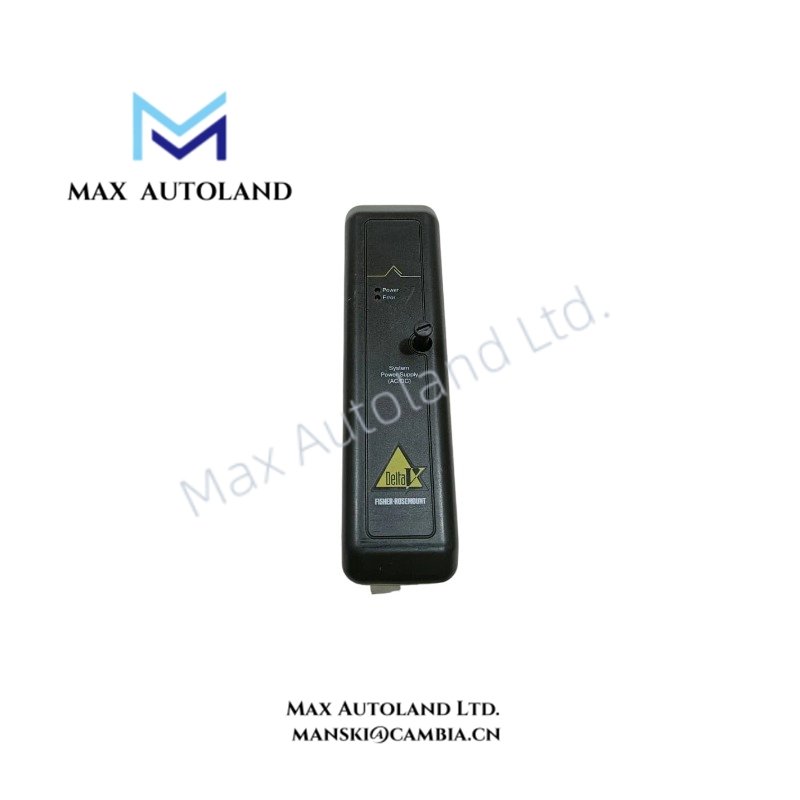

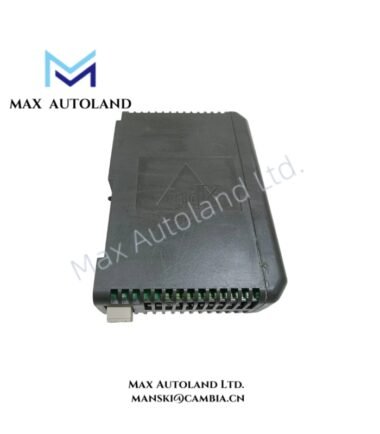

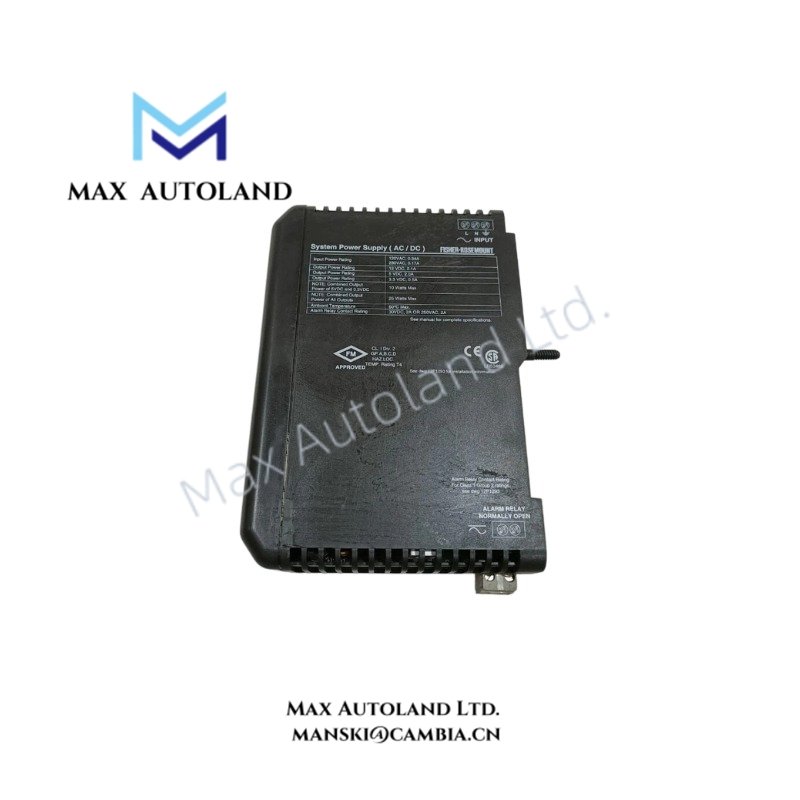

The Emerson KJ1501X1-BA2, also cataloged as the VE5001 AC/DC System Power Supply Module, operates as a dedicated power conversion component for DC supply regulation within the Emerson DeltaV M-Series control system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ1501X1-BA2 |
| Brand | Emerson |
| Product Type | AC/DC System Power Supply Module |
| Origin | USA |
| Weight | Approximately 1.04 kg |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Input: 0.34 A at 120 VAC / 0.17 A at 230 VAC |
| Input Voltage | Auto-ranging 120 VAC / 230 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 12 VDC |
| Output Current | 2.1 A |
| Efficiency | Up to 90% |
| Ripple and Noise | Less than 50 mVpp |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Airborne Contaminants | Class G3 according to ISA-S71.04-1985 |
DeltaV DCS Power Conversion and Process Control Integration
The KJ1501X1-BA2 converts AC input power into regulated 12 VDC output for DeltaV M-Series system hardware. Moreover, the module maintains DC voltage stability for connected controllers and local I/O components through its dedicated power conversion circuit.
Emerson DeltaV power architectures commonly support process control modules that interface with 4-20 mA HART loop protocol, FOUNDATION Fieldbus / Profibus PA connectivity, and isolated field signal processing. Therefore, system power modules must provide controlled DC distribution to maintain consistent operation of connected DCS components.
The KJ1501X1-BA2 provides the electrical supply foundation required by DeltaV hardware assemblies. In addition, its wide operating temperature range supports installation in industrial control cabinets with varying thermal conditions.
Frequently Asked Questions
Q: Does the KJ1501X1-BA2 provide direct AC input conversion to DC output?
A: Yes. The module accepts 120 VAC or 230 VAC input power and provides a regulated 12 VDC output supply for DeltaV M-Series system hardware.
Q: Can the KJ1501X1-BA2 operate in redundant power configurations?
A: The module can be installed according to DeltaV carrier and system power architecture requirements. Redundant configuration capability depends on the installed carrier design and system documentation.
Q: What environmental conditions support operation of the KJ1501X1-BA2?
A: The module supports -40 deg C to +70 deg C operating temperature, 5% to 95% non-condensing humidity, and Class G3 airborne contaminant conditions.
Field Installation Guidelines
Install the KJ1501X1-BA2 in a compatible DeltaV M-Series carrier following Emerson installation procedures. Verify that the AC input wiring matches the configured voltage supply before energizing the module.
Keep power wiring separated from low-level analog signal cables to reduce electrical interference. Furthermore, apply proper cabinet grounding practices and ensure that protective earth connections meet site electrical standards.
Before replacement or maintenance activities, confirm system power isolation requirements. Check carrier connections, terminal seating, and module engagement points to prevent intermittent power faults.
