Overview

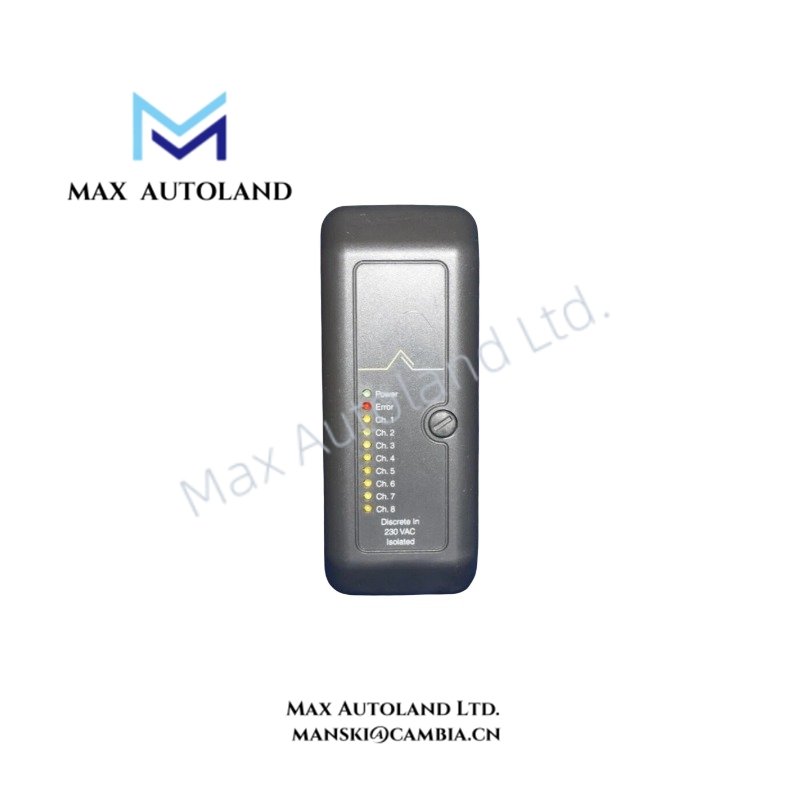

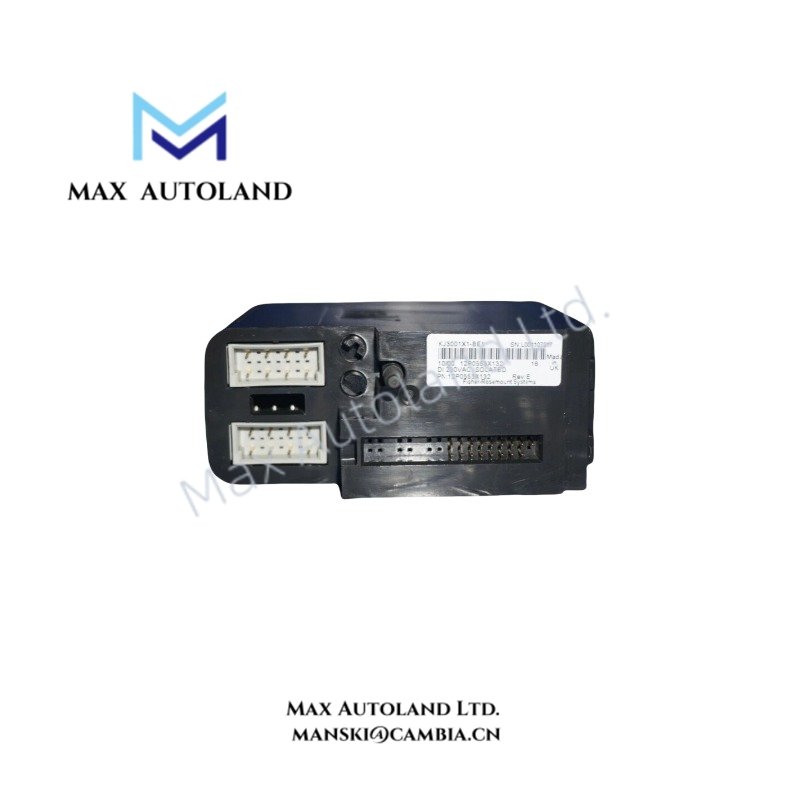

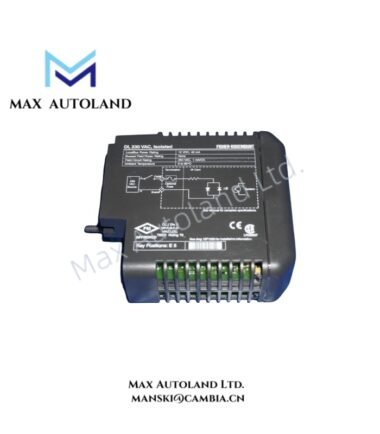

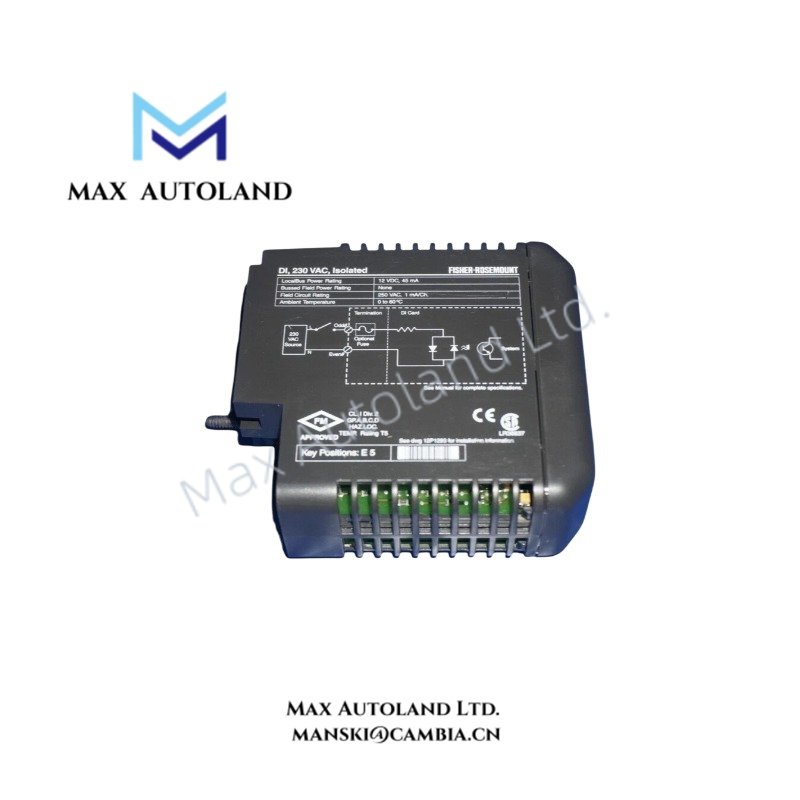

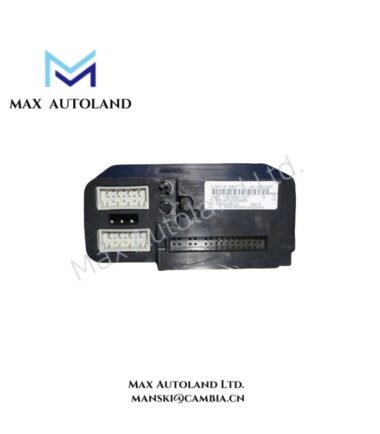

The Emerson KJ3001X1-BE1, also cataloged as the KJ3001X1-BE1 I/O Module, operates as a dedicated hardware component for field signal processing and data communication within the Emerson DeltaV Distributed Control System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3001X1-BE1 |
| Brand | Emerson Automation Solutions |
| Origin | USA |
| Product Type | Input/Output (I/O) Module |
| Series / System | DeltaV Distributed Control System |
| Processor Type | 32-bit PowerPC |
| Memory | 512 MB RAM / 1 GB Flash |
| LocalBus Power Rating | 12 VDC @ 150 mA |
| Operating Temp | 0 deg C to 60 deg C |
| Storage Temperature | -20 deg C to 85 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 5 to 16 Hz; 0.5 g from 16 to 150 Hz |
| Mounting Style | Standard DeltaV I/O carrier slot installation |
| Power Consumption | 12 VDC @ 150 mA LocalBus power |
4-20 mA HART and DCS Signal Interface Characteristics
The KJ3001X1-BE1 operates as a DeltaV I/O hardware component with local processing capability for field signal acquisition and controller communication. Moreover, the module architecture supports onboard data handling through a 32-bit PowerPC processor and dedicated flash memory before transferring process information through the DeltaV backplane.
For Emerson DeltaV systems, I/O modules typically interface with process instrumentation through standardized field signal methods. The KJ3001X1-BE1 supports controlled communication between field-level devices and DeltaV controllers while maintaining defined electrical separation requirements within the I/O carrier structure. Therefore, installation practices must consider field wiring arrangement, signal shielding, and grounding methods.
The module design includes physical rotary keying for carrier alignment control and supports hot-swap replacement procedures under specified field power management conditions. In addition, operators must isolate or manage field power before module insertion or removal in hazardous-area applications to prevent electrical arcing.
Frequently Asked Questions
Q: Does the KJ3001X1-BE1 support hot-swapping during system operation?
A: The module supports hot-swap replacement within DeltaV carrier systems. However, field power isolation or proper power management is required before removal or insertion in hazardous-area or high-integrity applications.
Q: What backplane power does the KJ3001X1-BE1 require?
A: The module requires LocalBus power rated at 12 VDC @ 150 mA from the DeltaV carrier system.
Q: What processing hardware is integrated into the module?
A: The KJ3001X1-BE1 integrates a 32-bit PowerPC processor with 512 MB RAM and 1 GB flash memory for local module data processing and communication management.
Field Installation Guidelines
Install the KJ3001X1-BE1 into the designated DeltaV I/O carrier slot and verify that the physical keying position matches the approved module configuration.
Maintain proper field wiring separation between signal cables and high-voltage conductors to reduce electrical interference. Furthermore, connect cable shields according to the site grounding standard and avoid unnecessary shield loops.
Before replacing the module, confirm the field circuit power condition and follow DeltaV system procedures for energized maintenance. Check connector engagement, carrier alignment, and module seating after installation.
Verify controller recognition, communication status, and field signal operation through DeltaV diagnostic tools before returning the process loop to normal operation.
