Overview

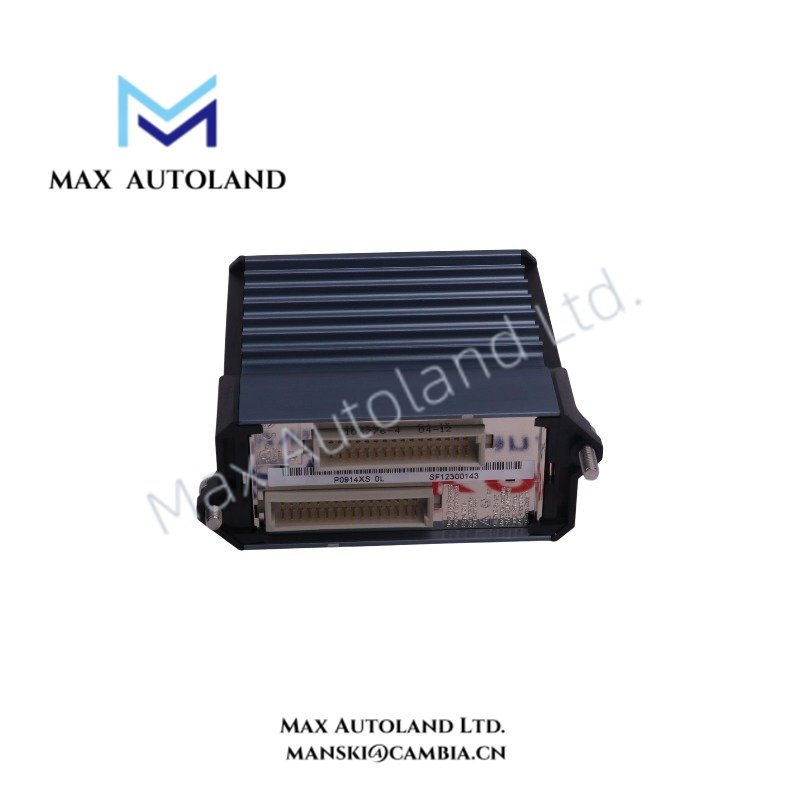

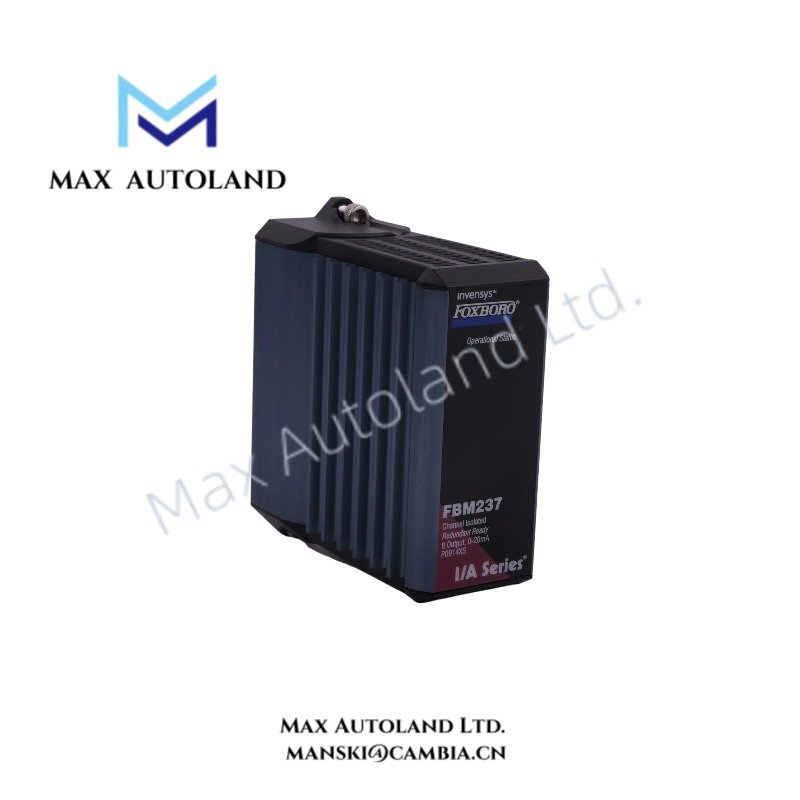

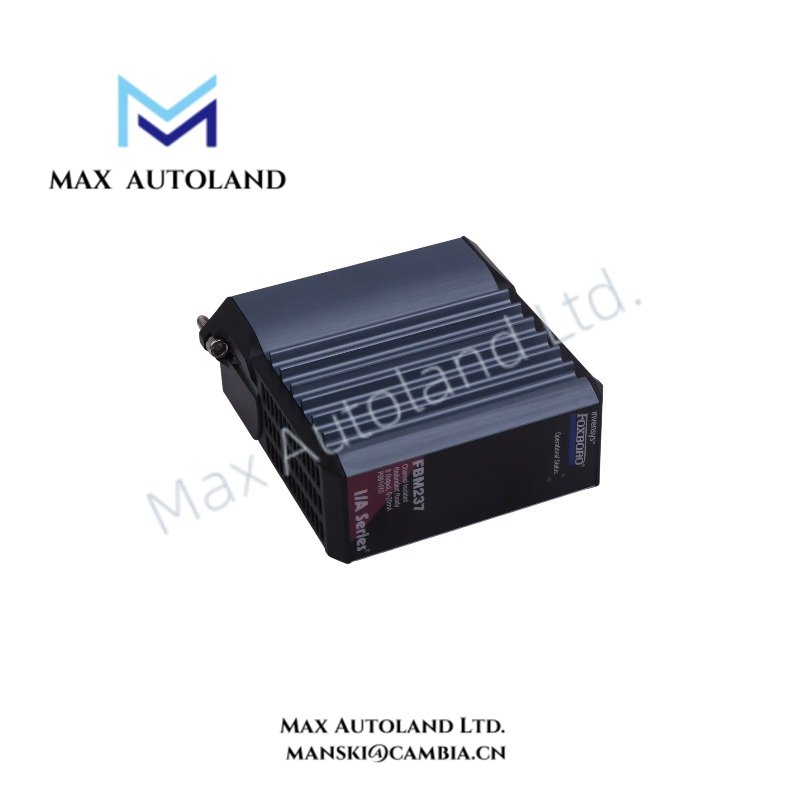

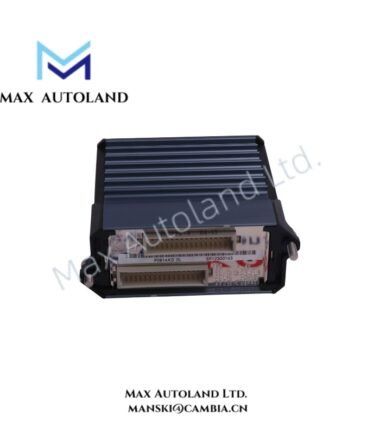

Configured for field signal termination in the Foxboro I/A Series Distributed Control System, the Foxboro FBM237 P0916CC (FBM237 Compression Termination Assembly) provides direct physical connection and signal routing for FBM237 field wiring interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM237 P0916CC |
| Brand | Foxboro (Schneider Electric) |
| Origin | USA |
| Product Type | Compression Termination Assembly |
| Associated Module | FBM237 Series Module |
| Termination Type | Screw-type Compression Terminals |
| Housing Material | High-Impact Polycarbonate |
| Ingress Protection | IP66 |
| Operating Temp | -40 deg C to +80 deg C |
| Relative Humidity | 5% to 95% non-condensing |
| Airborne Contaminants Compliance | ISA-S71.04 Class G3 |
| Dimensions | Approx. 52.5 cm x 15.5 cm x 5.5 cm |
| Weight | Approx. 2.88 kg |
| Power Consumption | Passive termination assembly, no external power required |
DCS Signal Termination and Isolation Features
The FBM237 P0916CC functions as a physical termination interface between field wiring and the Foxboro FBM237 I/O module. It uses screw-type compression terminals to maintain stable conductor contact and provide organized signal distribution.
For Foxboro DCS applications, the termination assembly supports process instrument connections associated with analog signal channels. The terminal structure allows field wiring inspection, maintenance access, and controlled cable routing within industrial control cabinets.
The assembly supports channel-to-channel isolation requirements through the connected FBM237 module architecture. In addition, it maintains signal integrity for instrument loops using standard industrial practices, including shield termination and proper cable segregation.
The FBM237 interface can support field devices using 4-20 mA HART loop protocol when the connected I/O module configuration provides HART communication capability. Therefore, installation practices must maintain appropriate shielding and grounding methods to prevent communication interference.
Frequently Asked Questions
Q: Is the FBM237 P0916CC an active electronic module?
A: No. The FBM237 P0916CC is a passive Compression Termination Assembly. It provides physical field wiring termination and does not contain independent control processing electronics.
Q: What type of connection method does the FBM237 P0916CC use?
A: The assembly uses screw-type compression terminals for field conductor connection. Wiring should follow the Foxboro I/A Series installation documentation for terminal assignment and cable preparation.
Q: Can the FBM237 P0916CC operate independently without an FBM237 module?
A: No. The termination assembly is designed as an interface component for the FBM237 Series module and requires integration with the corresponding Foxboro I/A Series hardware.
Field Installation Guidelines
- Install the FBM237 P0916CC inside an appropriate control cabinet or protected enclosure according to system installation requirements.
- Verify terminal assignments before connecting field conductors to prevent signal channel mismatch.
- Use shielded instrumentation cable where required and connect cable shields according to site grounding standards.
- Separate low-level analog signal wiring from high-voltage power cables to reduce electrical noise coupling.
- Check terminal tightness during commissioning and maintenance activities to prevent loose conductor connections.
- Confirm environmental conditions remain within the specified temperature, humidity, and contamination limits.
