Overview

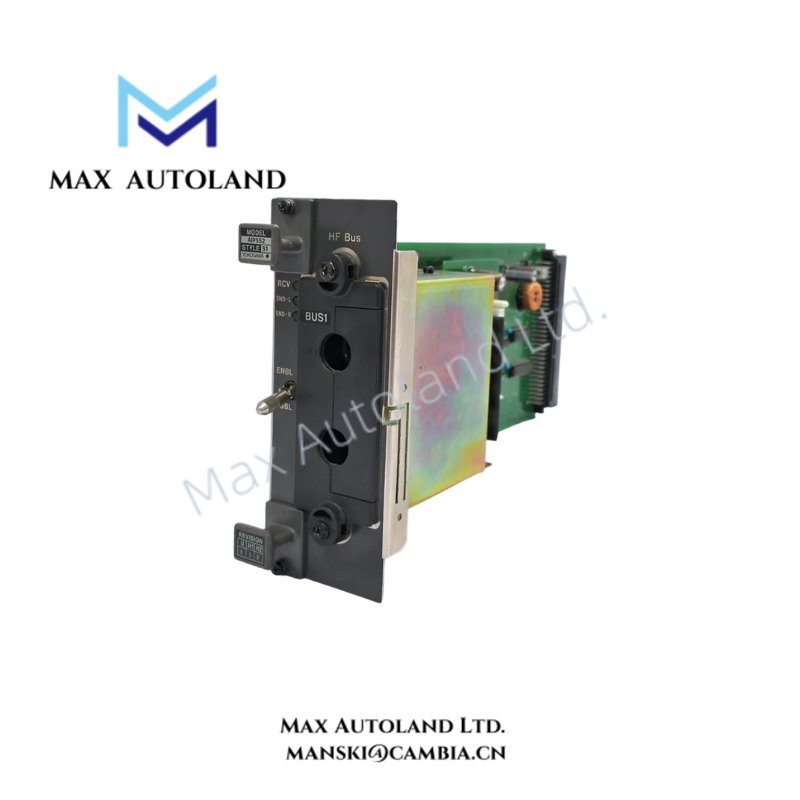

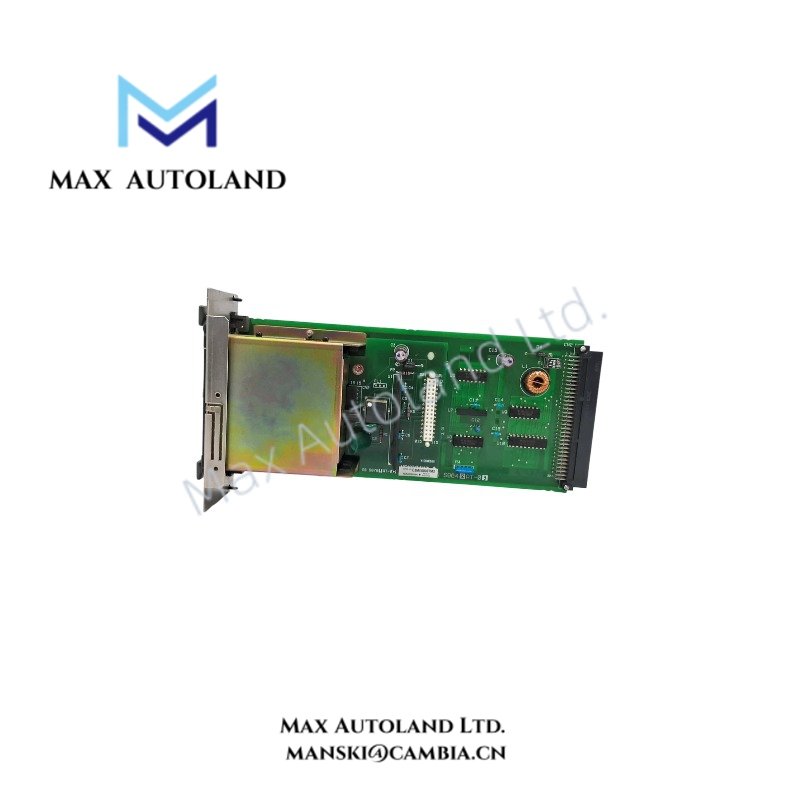

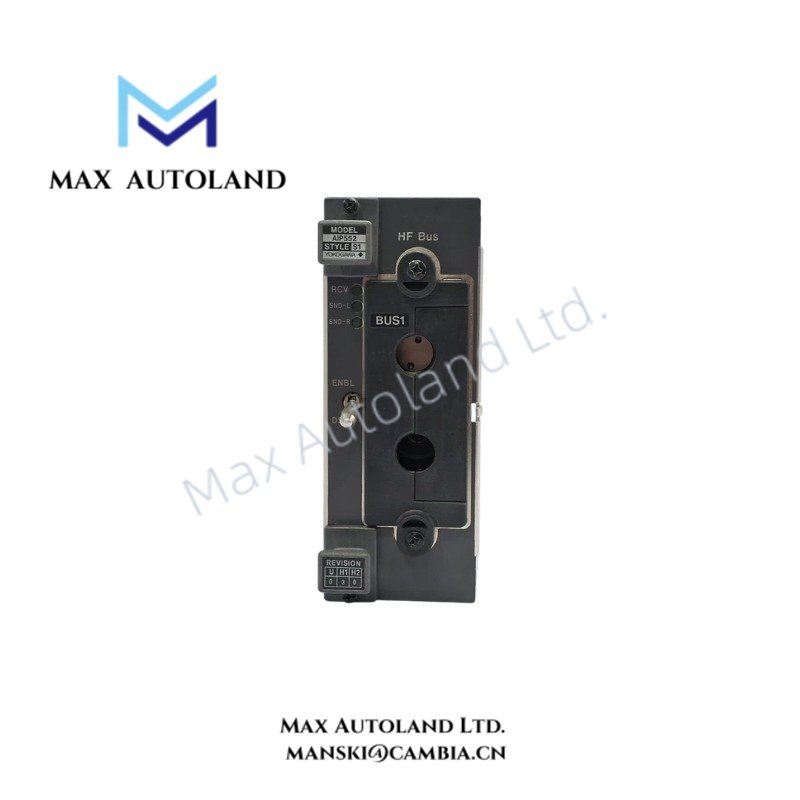

Configured for deterministic protocol conversion in Yokogawa V-Net control networks, the Yokogawa AIP552 S1 (AIP552 V-Net Bus Converter Module) provides direct physical and electrical execution for data exchange between V-Net and external industrial communication interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP552 S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | V-Net Bus Converter Module |
| Weight | Approx. 0.5 kg |
| Dimensions | Approx. 15.2 cm x 5.1 cm x 25.4 cm |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | 24 VDC power supply input |
| Communication Interface | Yokogawa V-Net, external serial/Ethernet protocol mapping |
| Supported Protocols | V-Net, Modbus, PROFIBUS, standard industrial communication mappings |
| System Compatibility | Yokogawa CENTUM VP and compatible DCS platforms |
Yokogawa DCS Communication and Protocol Conversion Characteristics
The AIP552 S1 performs data frame conversion between Yokogawa V-Net communication structures and external industrial communication protocols. It processes incoming communication packets, applies protocol mapping rules, and transfers converted data to connected control system components.
For Yokogawa process control architectures, the module supports integration with external instruments and controllers through configured communication interfaces. In addition, the module design supports channel-to-channel isolation practices required for stable DCS signal exchange.
The AIP552 S1 can be applied with industrial protocols including Modbus and PROFIBUS-based communication paths. Therefore, it allows existing field devices and third-party control equipment to exchange process data with Yokogawa DCS environments.
Frequently Asked Questions
Q: What communication function does the Yokogawa AIP552 S1 provide?
A: The AIP552 S1 performs V-Net bus conversion and transfers mapped data between Yokogawa DCS networks and external communication protocols.
Q: What power supply does the AIP552 S1 require?
A: The module operates with a 24 VDC power supply input according to the provided technical specifications.
Q: Can the AIP552 S1 be installed in a CENTUM VP system?
A: Yes. The module is designed for Yokogawa CENTUM VP and compatible distributed control system environments.
Field Installation Guidelines
- Install the AIP552 S1 in the designated Yokogawa control cabinet slot according to the system hardware configuration manual.
- Verify that the 24 VDC power wiring uses correct polarity before energizing the module.
- Separate communication cables from high-voltage power lines to reduce electromagnetic interference.
- Connect cable shields according to Yokogawa grounding practices for industrial communication networks.
- Confirm V-Net communication addressing and protocol configuration before system commissioning.
- Check connector seating and mechanical fixation before applying operating power.
