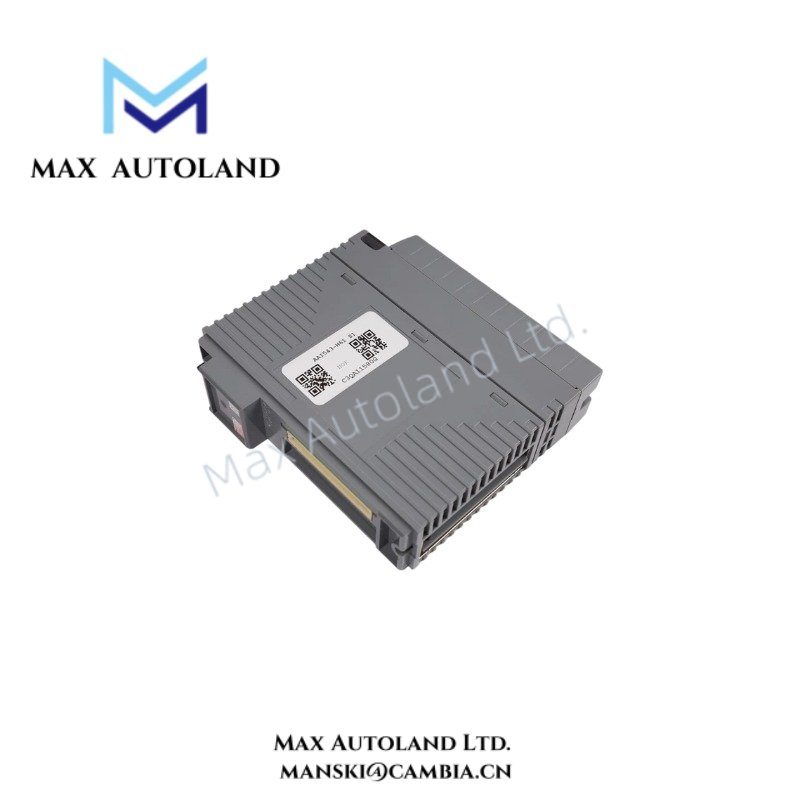

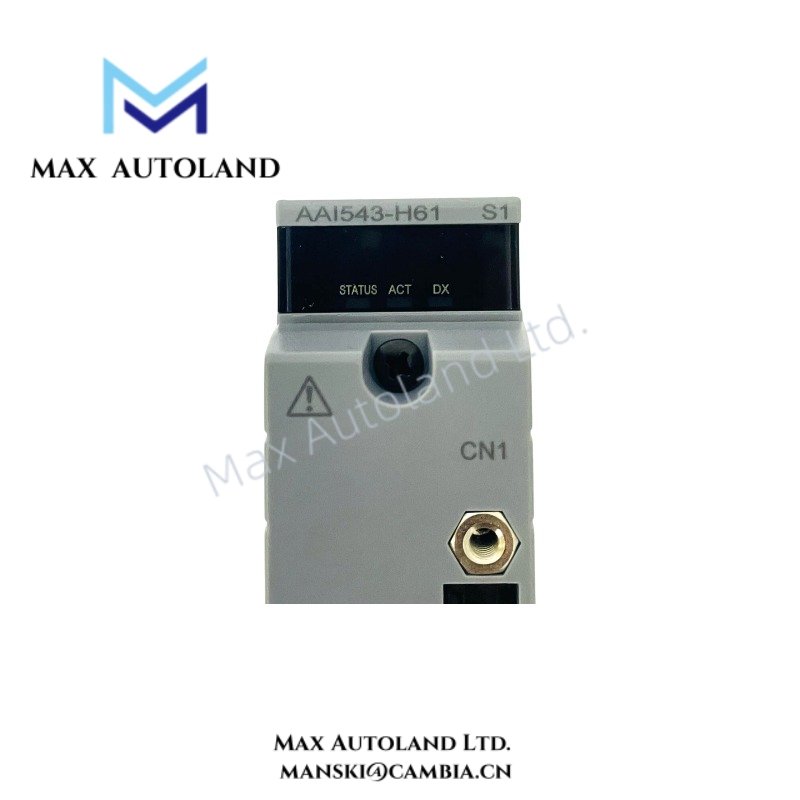

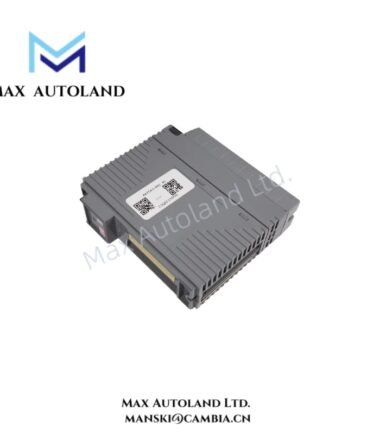

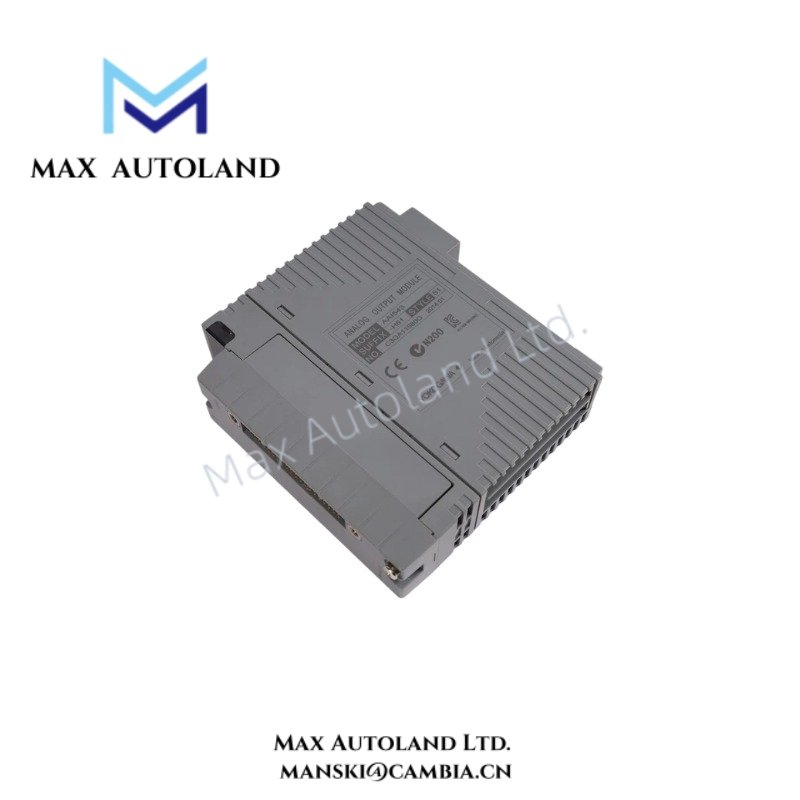

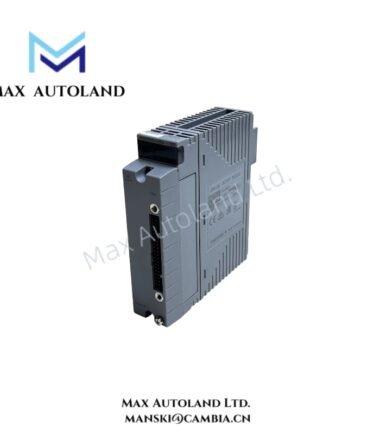

AAI543-H61 Yokogawa Analog Output Module

Overview

Configured for 16-channel 4-20 mA signal output in Yokogawa CENTUM VP and CENTUM CS 3000 systems, the Yokogawa AAI543-H61 (AAI543 Analog Output Module) provides isolated current outputs and supports HART communication and dual-redundant operation.

Hardware Specifications

Yokogawa Process Control and HART Signal Handling

The AAI543-H61 converts controller output data into sixteen isolated 4-20 mA DC signals. Each output supports a load resistance from 0 to 750 ohm, while the module detects an open output circuit below 0.65 mA.

Furthermore, the module supports HART communication over the analog current loop. This allows compatible smart field instruments to exchange digital device information while maintaining the analog output signal.

The module also supports dual-redundant configuration. Therefore, the control system can use a redundant module arrangement with fast switch-over behavior when the configuration requires continued output availability.

The ISA Standard G3 corrosion-resistant specification addresses operation in environments where corrosive atmospheric conditions can affect electronic hardware.

Frequently Asked Questions (FAQ)

Q: How many analog outputs does the AAI543-H61 provide?
A: The module provides 16 isolated analog output channels, each producing a 4-20 mA DC signal.

Q: Does the AAI543-H61 support HART communication?
A: Yes. The module supports HART communication over the 4-20 mA analog output loop.

Q: Can the AAI543-H61 operate in a redundant configuration?
A: Yes. The supplied specifications state that the module supports dual-redundant configuration with fast switch-over response.

Field Installation Guidelines

• Install the module in the specified Yokogawa system node and use the corresponding approved terminal hardware.
• Verify module orientation and terminal assignments before connecting field wiring.
• Route 4-20 mA signal wiring separately from high-voltage power and high-current switching conductors.
• Use appropriate shielded instrumentation cable where the installation requires electromagnetic noise control.
• Terminate cable shields according to the applicable Yokogawa system grounding scheme and avoid unintended ground loops.
• Confirm that the connected field load remains within the specified 0 to 750 ohm resistance range.
• Verify output polarity and field-device compatibility before energizing the circuit.
• For redundant installations, confirm correct module pairing and system configuration before placing the redundant path into service.
• Observe the specified power connections and verify the 5 VDC and 24 VDC current consumption requirements at the system level.
• Follow the applicable Yokogawa installation and maintenance documentation for cabinet ventilation, grounding, wiring, and module replacement procedures.
