Overview

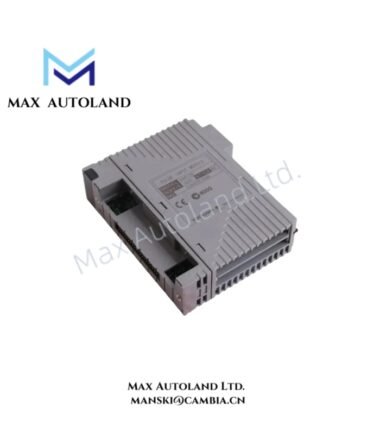

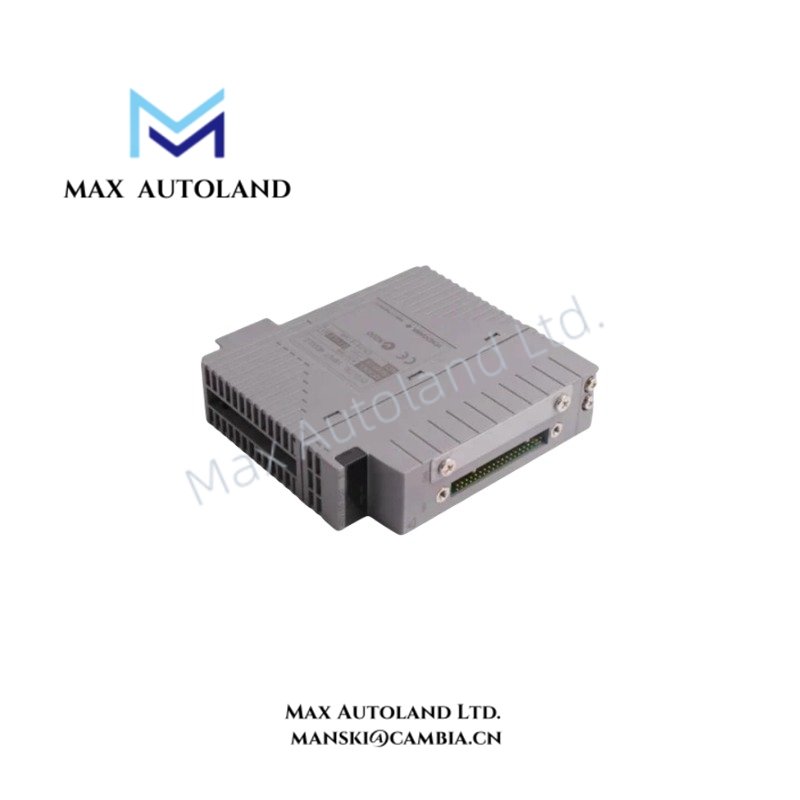

The Yokogawa AAI143-S50/K4A00, also cataloged as the AAI143 Analog Input Module, operates as a dedicated hardware component for isolated 4-20 mA signal acquisition within the Yokogawa ESB bus node architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-S50/K4A00 |
| Brand | Yokogawa |
| Origin | Japan |
| Product Type | Analog Input Module |
| Module Function | Isolated current input processing |
| Number of Input Channels | 16 isolated channels |
| Input Signal | 4-20 mA |
| Allowable Input Current | 24 mA maximum |
| Input and System Withstanding Voltage | 1500 V AC for 1 minute |
| Input Resistance (Power ON) | 270 ohm at 20 mA to 350 ohm at 4 mA |
| Input Resistance (Power OFF) | 500 kohm or more |
| Accuracy | +/-16 uA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or more at 20 mA; 25.5 V or less at 0 mA; output current limit 25 mA |
| Transmitter Configuration | 2-wire or 4-wire transmitter selectable by setting pin for each channel |
| Temperature Drift | +/-16 uA/10 deg C |
| Maximum Current Consumption | 230 mA at 5 VDC; 540 mA at 24 VDC |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal, MIL connector cable, dedicated KS1 cable |
| Communication Function | HART communication supported |
4-20 mA HART Loop and Channel Isolation Features
The AAI143-S50/K4A00 provides isolated analog signal acquisition for Yokogawa process control systems. It receives 4-20 mA transmitter outputs through 16 independent input channels and maintains electrical separation between field circuits and system circuits.
Furthermore, the module supports HART communication through the analog input path, allowing digital configuration and diagnostic data exchange from compatible field transmitters. The channel-to-channel isolation structure reduces interference between measurement loops and improves signal integrity in multi-point instrumentation applications.
The module supports both 2-wire and 4-wire transmitter configurations through individual channel setting pins. Therefore, users can connect different transmitter wiring types within the same input module configuration.
Frequently Asked Questions
Q: Does the AAI143-S50/K4A00 support redundant configuration?
A: Yes. The AAI143 module supports dual redundant configuration within compatible Yokogawa ESB bus node systems.
Q: What type of field signals can the AAI143-S50/K4A00 process?
A: The module processes isolated 4-20 mA current signals from field transmitters and supports HART communication functions.
Q: How does the module handle transmitter power requirements?
A: The module provides transmitter excitation with an output current limit of 25 mA and supports channel-level 2-wire or 4-wire transmitter selection.
Field Installation Guidelines
- Install the AAI143-S50/K4A00 in the designated Yokogawa ESB bus node unit slot according to the system hardware configuration.
- Verify terminal assignments before connecting field transmitters to prevent incorrect polarity or signal wiring.
- Use shielded instrumentation cables for 4-20 mA signal wiring when the installation environment contains electrical noise sources.
- Connect cable shields according to the plant grounding standard and avoid multiple grounding points that may create ground loops.
- Separate analog signal cables from high-current power cables and switching circuits to reduce electromagnetic interference.
- Confirm transmitter type selection settings before commissioning each input channel.
- Verify HART communication performance after field wiring installation and loop testing.
