Overview

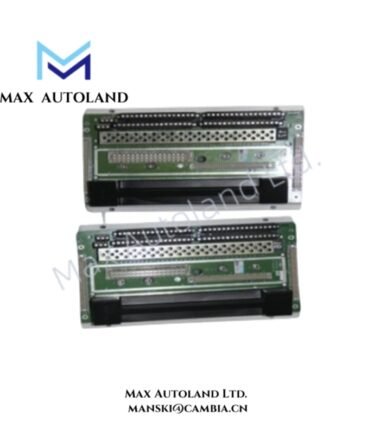

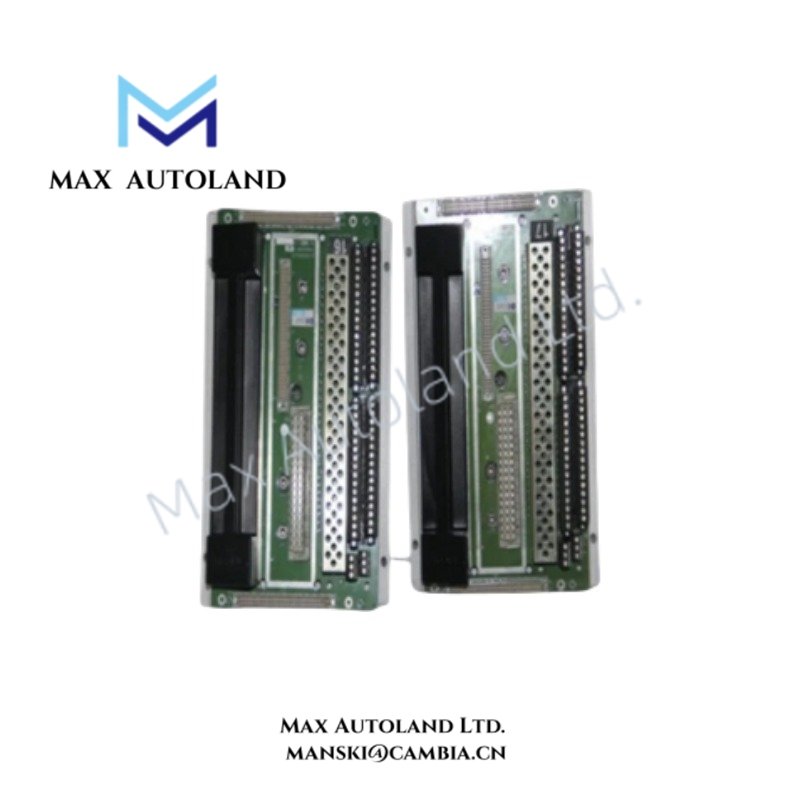

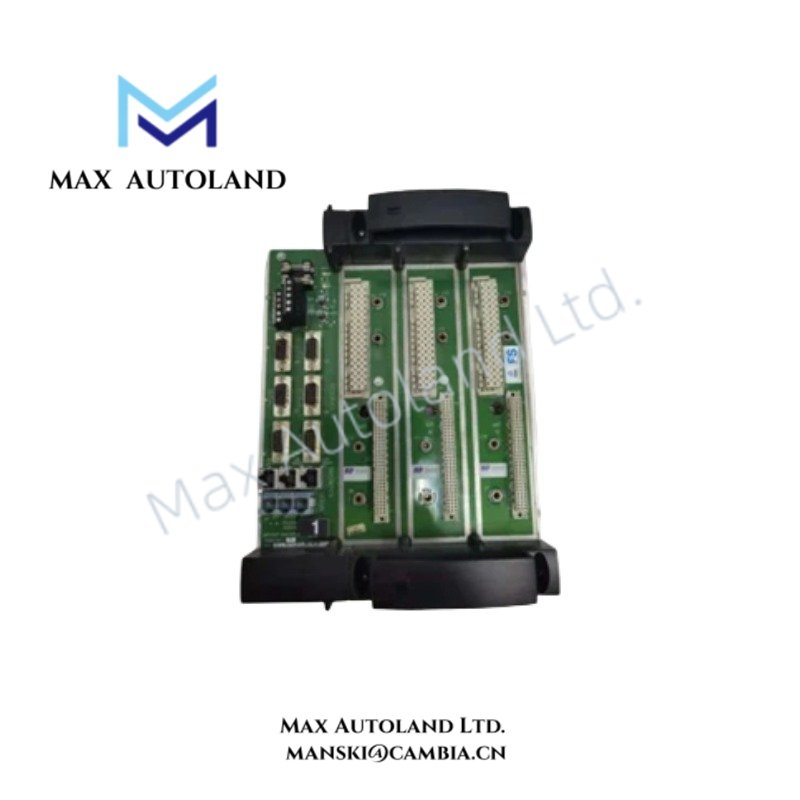

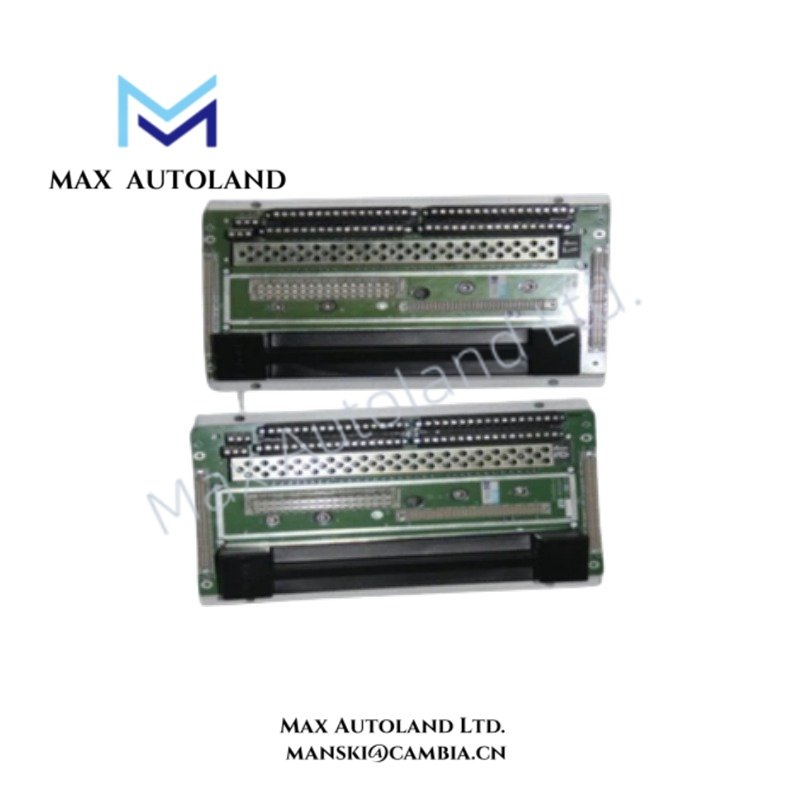

The Triconex 7400209B-030, also cataloged as the 7400209 System Module, operates as a dedicated hardware component for control execution and system communication tasks within Triconex Tricon TMR safety control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 7400209B-030 |
| Brand | Triconex (Schneider Electric / Invensys) |
| Product Type | System / Control Module |
| System Platform | Triconex Tricon TMR Safety Instrumented System |
| Architecture | Triple Modular Redundancy (TMR) |
| Operating Temp | Industrial operating environment; exact range depends on chassis configuration |
| Power Consumption | Chassis backplane power loading depends on system configuration |
| Communication Interface | Tricon system internal communication bus |
| Safety Certification | Designed for IEC 61508 SIL3 safety applications |
TMR Safety Execution and Fault Isolation
The Triconex 7400209B-030 operates within a Tricon TMR architecture where three parallel processing paths perform voting-based decision execution. Therefore, the module supports fault containment through redundant signal processing and diagnostic monitoring mechanisms.
The Triconex safety platform applies 2oo3 voting logic to maintain process output decisions when one processing channel detects a fault condition. In addition, galvanic isolation and internal diagnostics help separate electrical faults from system-level control functions.
The module design supports fail-safe state execution by coordinating hardware status monitoring, fault detection routines, and redundant communication paths inside the Tricon chassis environment.
Frequently Asked Questions
Q: Is the Triconex 7400209B-030 designed for standalone operation?
A: No. The module is intended for installation within a compatible Triconex Tricon chassis and operates as part of the TMR system architecture.
Q: Does the 7400209B-030 support hot-swapping?
A: Hot-swap capability depends on the specific Tricon chassis configuration, hardware revision, and system operating procedures. Refer to the applicable Tricon hardware installation manual before replacement.
Q: How does the module handle single-channel failures?
A: The Tricon TMR architecture uses redundant processing and 2oo3 voting methods to maintain controlled operation during detected single-channel faults.
Field Installation Guidelines
- Install the 7400209B-030 only in the specified Triconex chassis slot defined by the system configuration documentation.
- Verify chassis power isolation before module insertion or removal.
- Inspect backplane connectors for contamination, mechanical damage, or improper alignment before installation.
- Maintain proper grounding practices for the Tricon cabinet and associated field wiring.
- Route communication and power wiring separately from high-voltage switching circuits to reduce electrical interference.
- Confirm firmware compatibility between the module revision and the installed Tricon controller system.
- Perform system diagnostics after installation to verify module recognition, communication status, and fault reporting.
