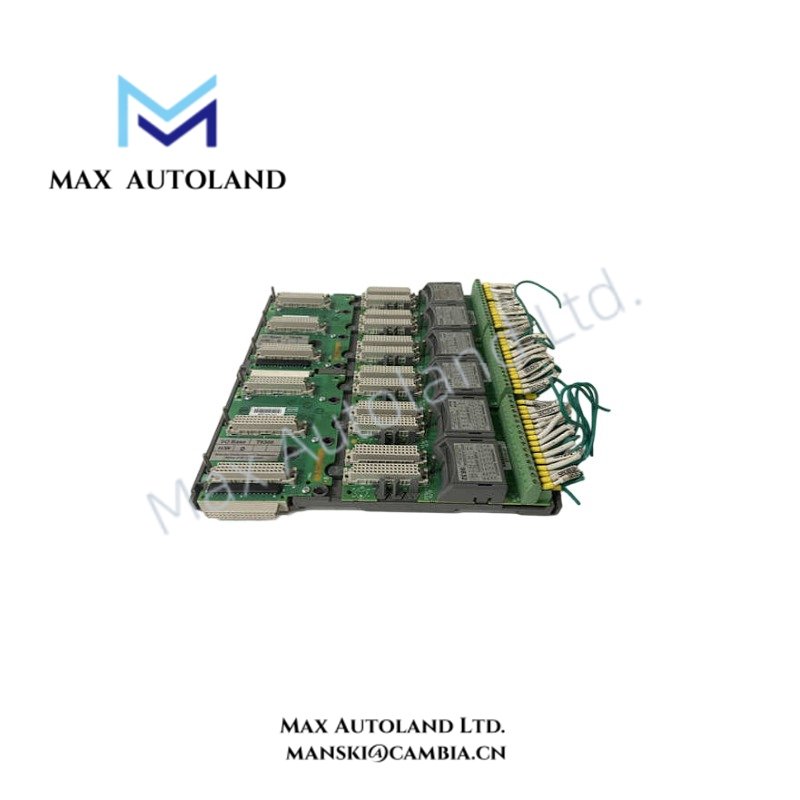

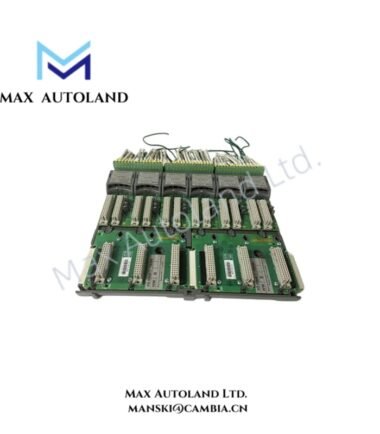

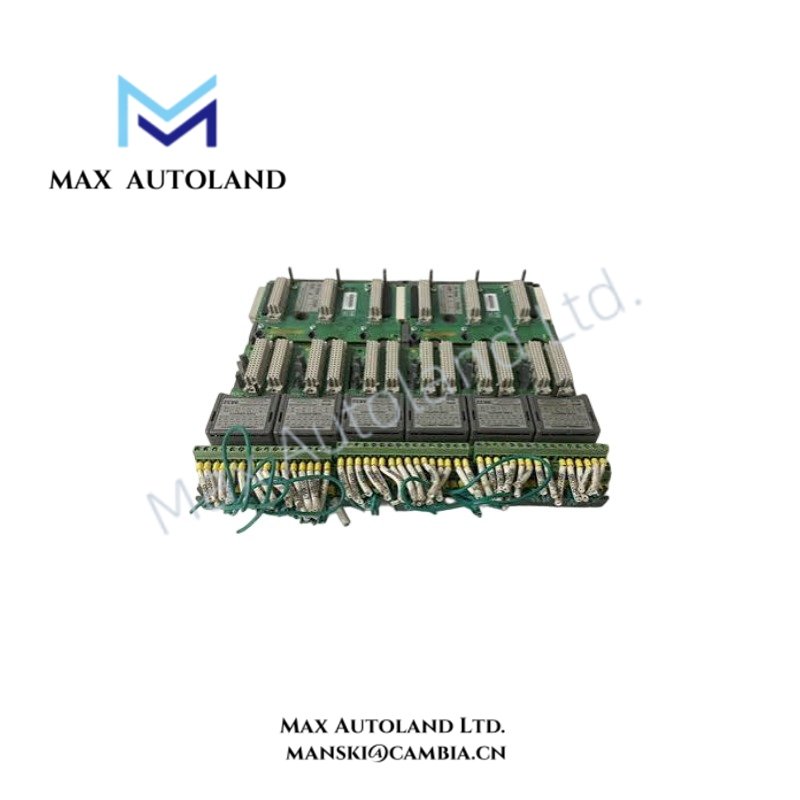

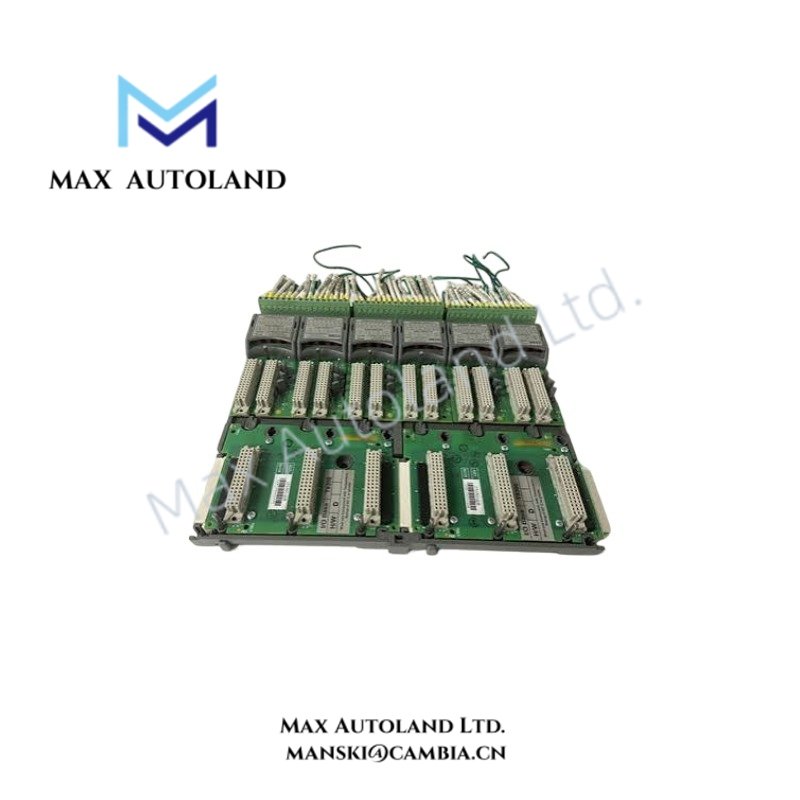

Invensys 9832 Fault-Tolerant Control Module

Overview

The Invensys  9832, also cataloged as the 9832 Fault-Tolerant Control Module, provides direct hardware execution for safety control signal processing within ICS Triplex fault-tolerant SIS platforms.

Hardware Specifications

Triple Modular Redundancy (TMR) Safety Execution

The ICS Triplex 9832 operates within a fault-tolerant safety control architecture designed for continuous signal processing and fail-safe state execution. The module supports redundant system configurations that reduce the effect of individual hardware faults during operation.

Furthermore, ICS Triplex safety platforms typically apply triple modular redundancy (TMR) 2oo3 voting principles to maintain control output decisions when one processing path experiences an internal fault. The module design supports controlled operation with electrical separation between system channels where applicable.

The 9832 hardware configuration focuses on deterministic signal handling, chassis communication, and coordinated execution between redundant control elements. Therefore, installation requires correct backplane connection, grounding practice, and approved module positioning within the system rack.

Frequently Asked Questions

Q: Does the ICS Triplex 9832 support hot-swap replacement?
A: Hot-swap capability depends on the installed ICS Triplex chassis configuration and system design. Replacement procedures must follow the applicable system maintenance documentation.

Q: What power supply range does the 9832 module require?
A: The module operates within an 18 VDC to 32 VDC supply range according to the provided technical specification.

Q: How does the module operate in a redundant safety system?
A: The module is designed for use in redundant ICS Triplex safety architectures where fault monitoring and controlled state execution are managed by the overall system configuration.

Field Installation Guidelines

Install the 9832 module in the designated ICS Triplex chassis position according to the approved rack layout. Verify that the backplane connectors are clean and fully seated before system energization.

Use appropriate industrial wiring practices for power and signal connections. Keep low-level signal wiring separated from high-voltage switching conductors to reduce electrical interference.

Connect protective grounding according to site electrical standards. Confirm module identification, chassis addressing, and system configuration before loading operational parameters.

After installation, perform hardware diagnostics and verify communication status through the system engineering tools before placing the safety application into service.
