Overview

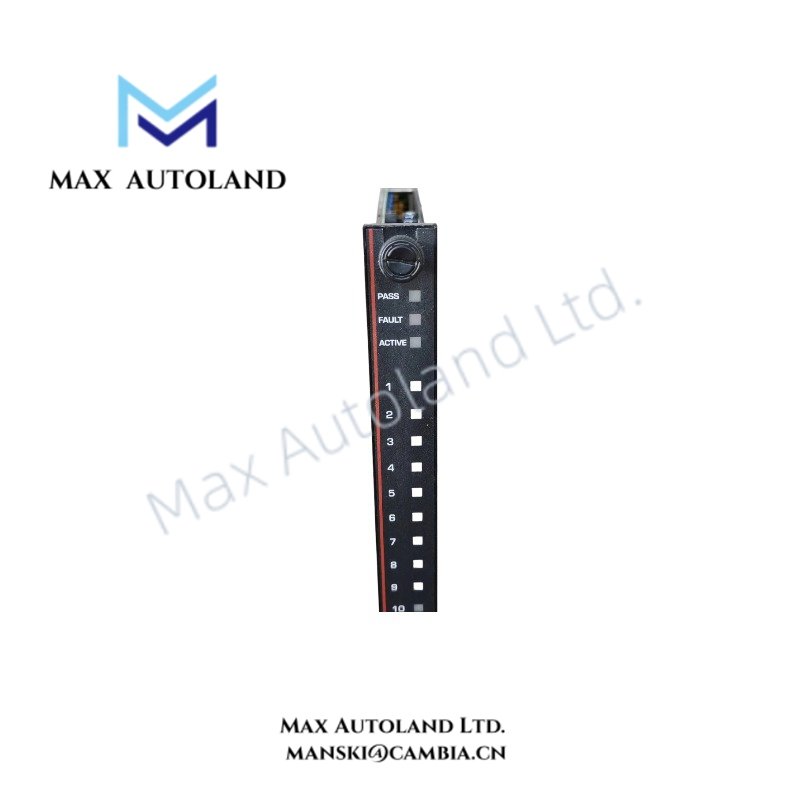

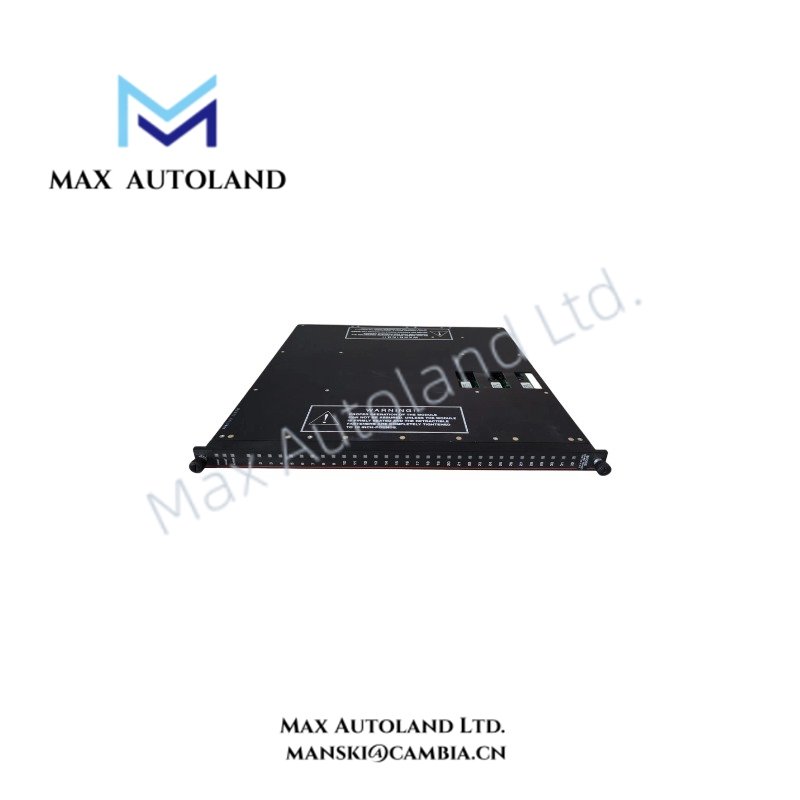

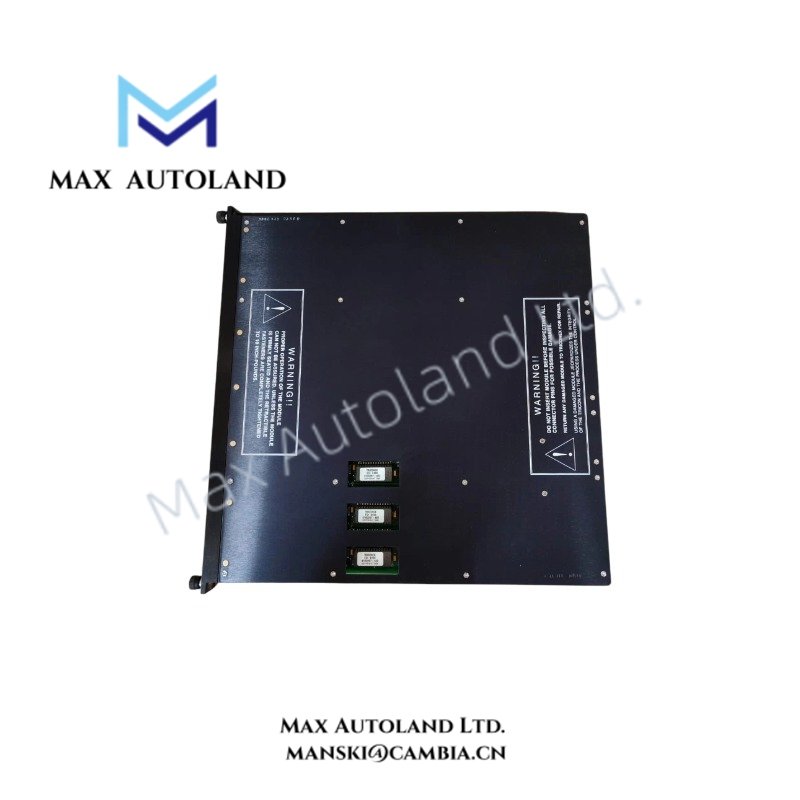

Configured for discrete signal acquisition in the Triconex Safety System, the Invensys Triconex 3503E (3503E Digital Input Module) provides direct electrical monitoring of field contact and solid-state input devices. The module executes 32 channel digital input processing through a TMR architecture with optical isolation and self-test functions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3503E |
| Brand | Invensys Triconex |
| Product Type | Digital Input Module |
| Origin | USA |
| Weight | 2 kg |
| Dimensions | 2.2 x 40.8 x 40 cm estimated shipping size |
| Module Architecture | Triple Modular Redundant (TMR) with Self-Test |
| Input Channels | 32 digital input points |
| Channel Grouping | Commoned in groups of 8 |
| Input Voltage | 24 VAC/VDC nominal |
| AC/DC Operating Range | 20-42.5 VAC/VDC |
| Frequency Range | DC or 47-63 Hz |
| Maximum Input Voltage | 42.5 VAC/VDC |
| OFF to ON Threshold | > 18 VAC/VDC |
| ON to OFF Threshold | < 6 VAC/VDC |
| Nominal Turn-On Current | 6-9 mA |
| Typical Hysteresis | 4 VAC/VDC |
| Isolation Method | Optical isolation between field inputs and Tricon backplane |
Triconex TMR Safety Architecture and Signal Isolation
The Triconex 3503E applies triple modular redundancy (TMR) 2oo3 architecture for digital input evaluation within Tricon safety control platforms. Each input signal is processed through redundant internal circuits, allowing the system to identify channel discrepancies and maintain defined fail-safe state execution.
Additionally, the module uses galvanic isolation through optical interfaces between field wiring and the internal backplane. Therefore, external electrical disturbances, field transients, and signal interference have reduced impact on controller-side circuits. The self-test mechanism continuously checks input channel operation and internal hardware status during system operation.
Frequently Asked Questions
Q: How does the 3503E process digital input signals in a TMR configuration?
A: The 3503E receives field digital signals through 32 input channels and evaluates redundant channel states using the Tricon TMR voting architecture.
Q: Does the 3503E provide electrical isolation between field devices and the Tricon controller?
A: Yes. The module uses optical isolation to separate field input circuits from the Tricon backplane interface.
Q: What input voltage range can the 3503E accept?
A: The module accepts 20-42.5 VAC/VDC input signals with a maximum rated input voltage of 42.5 VAC/VDC.
Field Installation Guidelines
Install the 3503E module according to the Triconex chassis configuration requirements and verify correct slot assignment before energizing the system.
Field wiring should maintain separation between digital input circuits and high-voltage power conductors to reduce electromagnetic interference. Use appropriate shield termination practices when connected field devices generate electrical noise.
Before operation, verify input polarity, voltage level, and channel grouping. Confirm that all field terminals are securely connected and that the module is correctly seated in the Tricon backplane assembly.
